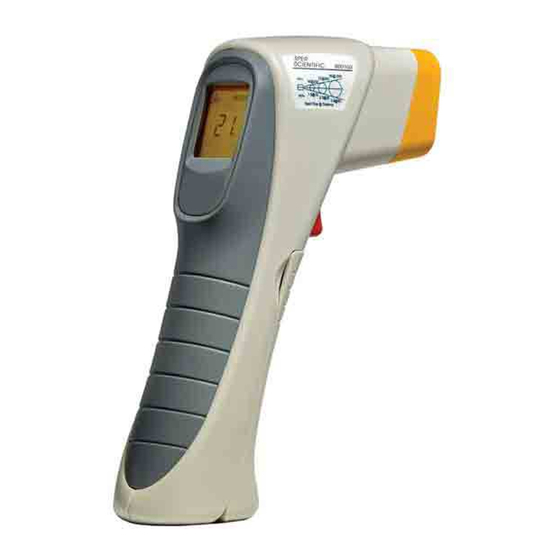

- Page 1 IR Thermometer Gun 12:1 800103 Instruction Manual...
- Page 2 CONTENTS INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 SAFETY SPECIFICATIONS .
- Page 3 SAFETY SPECIFICATIONS Read the following safety information carefully before attempting to operate or service the IR Gun . • Only qualified technicians should perform repairs. • DO NOT submerge the IR Gun in water . • Protect the IR Gun from water, shock, dust, and extreme environments .
- Page 4 DISPLAY AND BUTTON LOCATIONS SCAN °C HOLD °F 193. OFF F 1 . Laser Guide 2 . IR Sensor 3 . Tigger 4 . °C/°F Indicators 5. Laser On/Off Selector 6 . Battery 7 . Battery Cover 8 . Low Battery Indicator 9.
- Page 5 DISTANCE-TO-SPOT Distance to Spot: 12:1 The distance-to-spot 78:1000 ratio is 12:1 . As the 48:500 34:250 distance from the object increases, the spot size of the area measured by inch 1 .4:10 1.9:20 the gun also increases . 3 . 1 :40 MEASURING PROCEDURES For best results, allow the thermometer to adjust to the ambient temperature for 30 minutes before use .
- Page 6 NOTES • Your reading may fluctuate if the IR Gun is moved during measurement . • Emissivity is the ability of an object to emit or absorb energy . The factory set emissivity value of 0.95 covers about 90% of typical applications. When measuring highly reflective surfaces, apply masking tape to the surface or a paint that has a 0.95 emissivity .
- Page 7 SPECIFICATIONS D:S Ratio 12:1 Range -32 to 535°C (-25 to 999°F) Resolution 0 .1°C/F ±3°C (±5°F) From -32 to -20°C (-25 to -4°F) ±2°C (±3°F) Accuracy From -20 to 100°C (-4 to 212°F) ±2°C (±3°F) From 100 to 535°C (212 to 999°F) Thermopile 5 to 14 μm Response Time...
- Page 8 WARRANTY Sper Scientific warrants this product against defects in materials and workmanship for a period of five (5) years from the date of purchase, and agrees to repair or replace any defective unit without charge . If your model has since been discontinued, an equivalent Sper Scientific product will be substituted if available .
