Summary of Contents for Sper scientific 800101

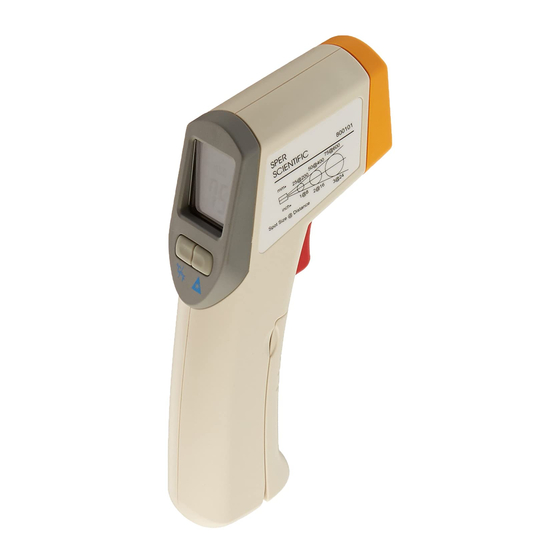

- Page 1 IR Thermometer Gun 800101 / 800102...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 SAFETY SPECIFICATIONS . -
Page 3: Safety Specifications
SAFETY SPECIFICATIONS Read the following safety information carefully before attempting to operate or service the IR Gun . • Only qualified technicians should perform repairs. • DO NOT submerge the IR Gun in water . • Protect the IR Gun from water, shock, dust, and extreme environments . -
Page 4: Display & Button Locations
DISPLAY AND BUTTON LOCATIONS 1 . Trigger 2 . Laser Guide 3 . IR Sensor 4 . Battery Distance to Spot: 8:1 5 . Low Battery Indicator 75:600 6 . Laser Guide 50:400 25:20 On/Off Indicator 7 . Temperature Display 8 . -
Page 5: Measuring Procedure
MEASURING PROCEDURE 1 . Point the IR Gun at the object to be measured . 2 . Pull and hold the TRIGGER to obtain a continually updated temperature until the trigger is released . SCAN flashes on the display. 3 . Press the °C/°F BUTTON to switch temp units . 4 . -
Page 6: Notes
NOTES • Emissivity is the ability of an object to emit or absorb energy . Your IR Gun measures emitted energy using a fixed emissivity value of 0.95 (which covers about 90% of typical applications). When measuring highly reflective surfaces, apply masking tape to the surface or a paint that has a 0.95 emissivity. -
Page 7: Specifications
SPECIFICATIONS Model 800101 800102 Range -4 to 605°F -4 to 930°F -20 to 320°C -20 to 500°C Accuracy ±2% of reading ±2°C (±3°F) from or ±2°C (±3°F) –20 to 100°C at 25°C (-4 to 212°F) whichever ±2% from is greater 100 to 500°C... -
Page 8: Warranty
WARRANTY Sper Scientific warrants this product against defects in materials and workmanship for a period of 5 years from the date of purchase, and agrees to repair or replace any defective unit without charge . If your model has since been discontinued, an equivalent Sper Scientific product will be substituted if available .
