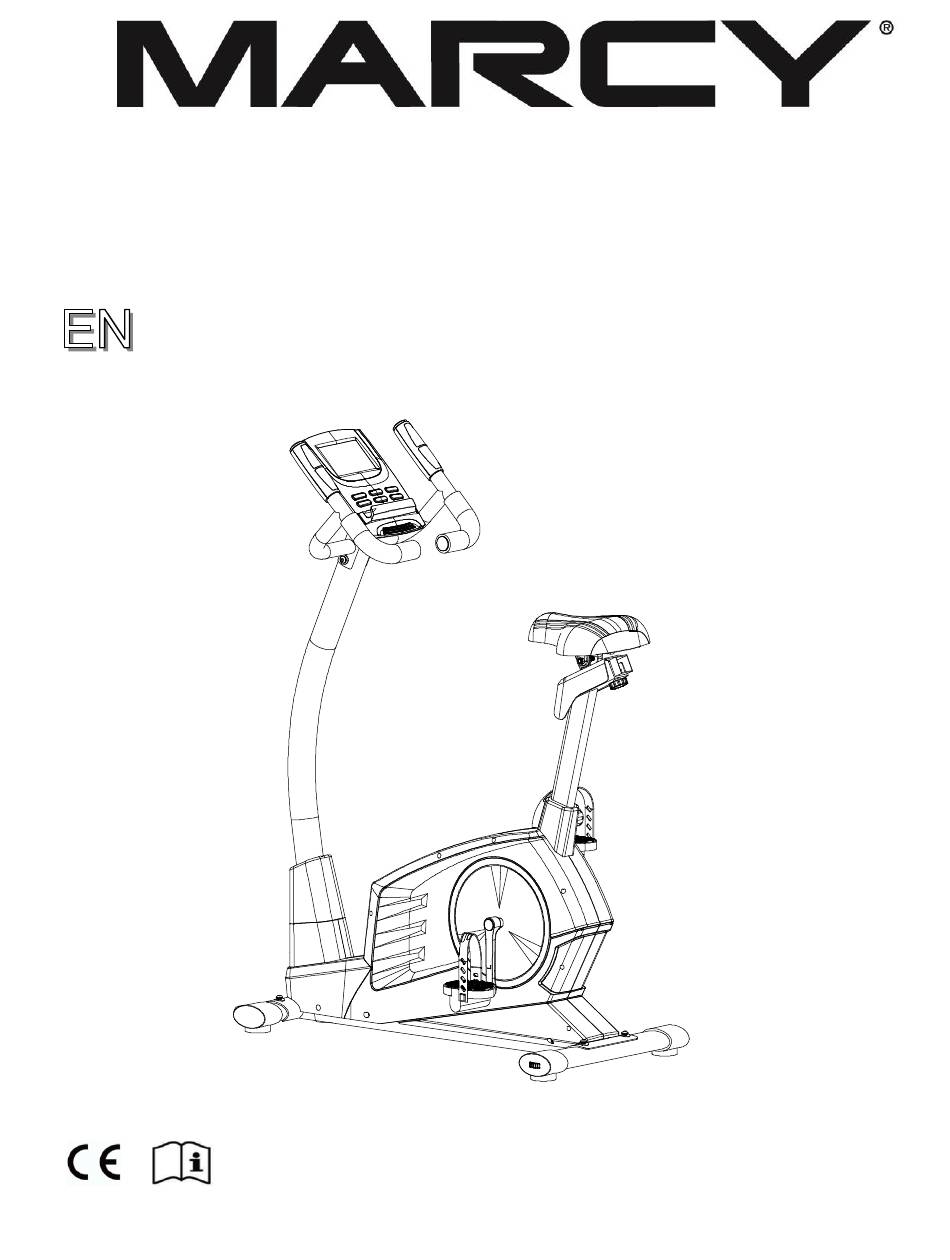

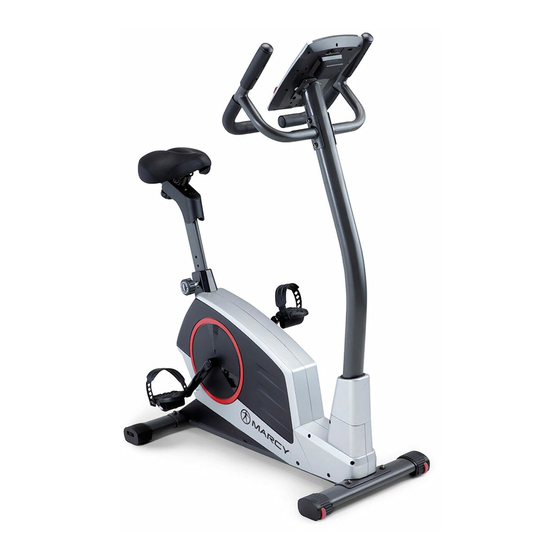

- Page 1 REGENERATING MAGNETIC UPRIGHT BIKE ME-702 Distributed By: Pure-Tec Limited www.puretecfitness.com www.puretecfitness.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS BEFORE YOU BEGIN..................……….. 1 IMPORTANT SAFETY NOTICES..............………. 2 EXERCISE GUIDELINES………………………………………………………………….. 3 IMPORTANT ASSEMBLY INFORMATION..............5 CARE AND MAINTENANCE, WEIGHT CAPACITY AND DIMENSIONS..………… 6 CONSOLE INSTRUCTIONS..................7 PARTS LIST………………………………………………………………………………..14 EXPLODED DIAGRAM…………………………………………………………………….. 16 WARRANTY....................…………..19 www.puretecfitness.com... -
Page 3: Important Safety Notices
IMPORTANT SAFETY NOTICE PRECAUTIONS This exercise bike is built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise bike. Be sure to read the entire manual before you assemble or operate your bike. In particular, note the following safety precautions: Keep children and pets away from the machine at all times. -
Page 4: Exercise Guidelines
EXERCISE GUIDELINES Using your REGENERATING MAGNETIC UPRIGHT BIKE will provide you with several benefits, it will improve your physical fitness, tone muscle and in conjunction with a calorie controlled diet help you lose weight. 1. The Warm-Up Phase This stage helps get the blood flowing around the body and the muscles working properly. It will also reduce the risk of cramp and muscle injury. - Page 5 3. The Cool Down Phase This stage is to let your cardio-vascular system and muscles wind down. This is a repeat of the warm up exercise e.g. reduce your tempo, continue for approximately 5 minutes. The stretching exercises should now be repeated, again remembering not to force or jerk your muscles into the stretch.
-
Page 6: Important Assembly Information
IMPORTANT ASSEMBLY INFORMATION Tools required for assembling the bench: two adjustable wrenches and Allen wrenches. ❖ NOTE: it is strongly recommended that this equipment is assembled by two or more ❖ people to avoid possible injury. Ensure carriage bolts are inserted through the SQUARE holes on components that need to ❖... -
Page 7: Care And Maintenance, Weight Capacity And Dimensions
CARE AND MAINTENANCE 1. Lubricate moving parts with WD-40 or light oil periodically. 2. Inspect and tighten all parts before using the equipment. 3. The equipment can be cleaned using a damp cloth and mild non-abrasive detergent. DO NOT use solvents. 4. -
Page 8: Console Instructions
CONSOLE INSTRUCTIONS A. Program select and setting value 1. Use the UP or DOWN keys to select program mode then press ENTER to confirm your exercise mode. 2. In the manual mode, use the UP or DOWN keys to set up your exercise TIME, DISTANCE, CALORIES, PULSE. 3. - Page 9 Functions: There are 6 buttons as follows: 1. START/STOP key: a. Quick Start function: Allows you to start the computer without selecting a program. Manual workout only. Time automatically begins to count up from zero b. During the exercise mode, press the key to STOP exercise. c.
- Page 10 7. Press the START/STOP key to begin exercise. User Setting Program: User 1, User 2, User 3, User 4 Program 14 to 17 is the user setting program. Users are free to create the values in the order of TIME, DISTANCE, CALORIES and the resistance level in 10 columns.
- Page 11 As a result, the calculated value of WATT will close to the value of TARGET WATT setup by users. Operations: 1. Use UP or DOWN key to select the WATT CONTROL (P23) program. 2. Press ENTER key to enter your workout program. 3.
- Page 12 Error Message: E1 (ERROR 1): Normal state: during workout, when the monitor did not get the count signal from the gear motor more than 4 seconds and check under successive 3 times then the LCD will show E1. Power on state: the gear motor will return to zero automatically, when the signal of motor cannot be detected for more than 4 seconds then the gear motor’s driver will be cut off immediately and show the E1 on the LCD display.
- Page 13 PROGRAM 15 USER 2 PROGRAM 16 USER PROGRAM 17 USER 4 HEART RATE PROGRAM PROFILES: PROGRAM 18 55% H.R.C. PROGRAM 19 65% H.R.C. PROGRAM 20 75% H.R.C. PROGRAM 21 85% H.R.C. PROGRAM 22 TARGET H.R.C. WATT CONTROL PROGRAM PROGRAM 23 WATT CONTROL www.puretecfitness.com...
- Page 14 BODY FAT TEST PROGRAMS: PROGRAM 24 BODY FAT (STOP MODE) BODY FAT (START MODE) One of the following six profiles willd display automatically after measuring your BODY FAT: Workout time: 40 minutes Workout time: 40 minutes Workout time: 20 minutes Workout time: 40 minutes Workout time: 40 minutes Workout time: 20 minutes...
-
Page 15: Parts List
PARTS LIST Part No. Description Q' t y Main frame Front stabiliser Rear stabiliser Front post Left handlebar Console Seat post Seat Left pedal Right pedal Quick release knob Cover for sliding tube Sliding tube U bracket Allen screw M8 x 2" Curved washer Cover for seat post Allen screw M8 x ⅝"... - Page 16 End cap for crank Flange screw Left crank Right crank Belt Right chain cover Left chain cover Sensor bracket Allen Bolt M6 x ½ " Self-tapping screw ST5 x ½ " Bushing for seat post Flange nut C-clip Φ½ " Axle for flywheel Flywheel Magnet assembly...
-
Page 17: Exploded Diagram
EXPLODED DIAGRAM www.puretecfitness.com... - Page 18 www.puretecfitness.com...
- Page 19 PRE-ASSEMBLY CHECK LIST Q’TY PART NO. DESCRIPTION Main frame Front / Rear stabiliser 1 / 1 Front post 5/21 Left / Right handlebar 1 / 1 Console Seat post Seat 9/10 Pedal L/R Cover for sliding tube Cover for seat post Cover for front post Hardware Kit Manual...
-
Page 20: Warranty
LIMITED WARRANTY Pure-Tec warrants this product to be free from defects in workmanship and material, under normal use and service conditions. Please refer to www.puretecfitness.com for warranty terms. This warranty extends only to the original purchaser and is valid for home use only. Pure-Tec’s obligation under this Warranty is limited to replacing damaged or faulty parts at Pure-Tec’s option.
