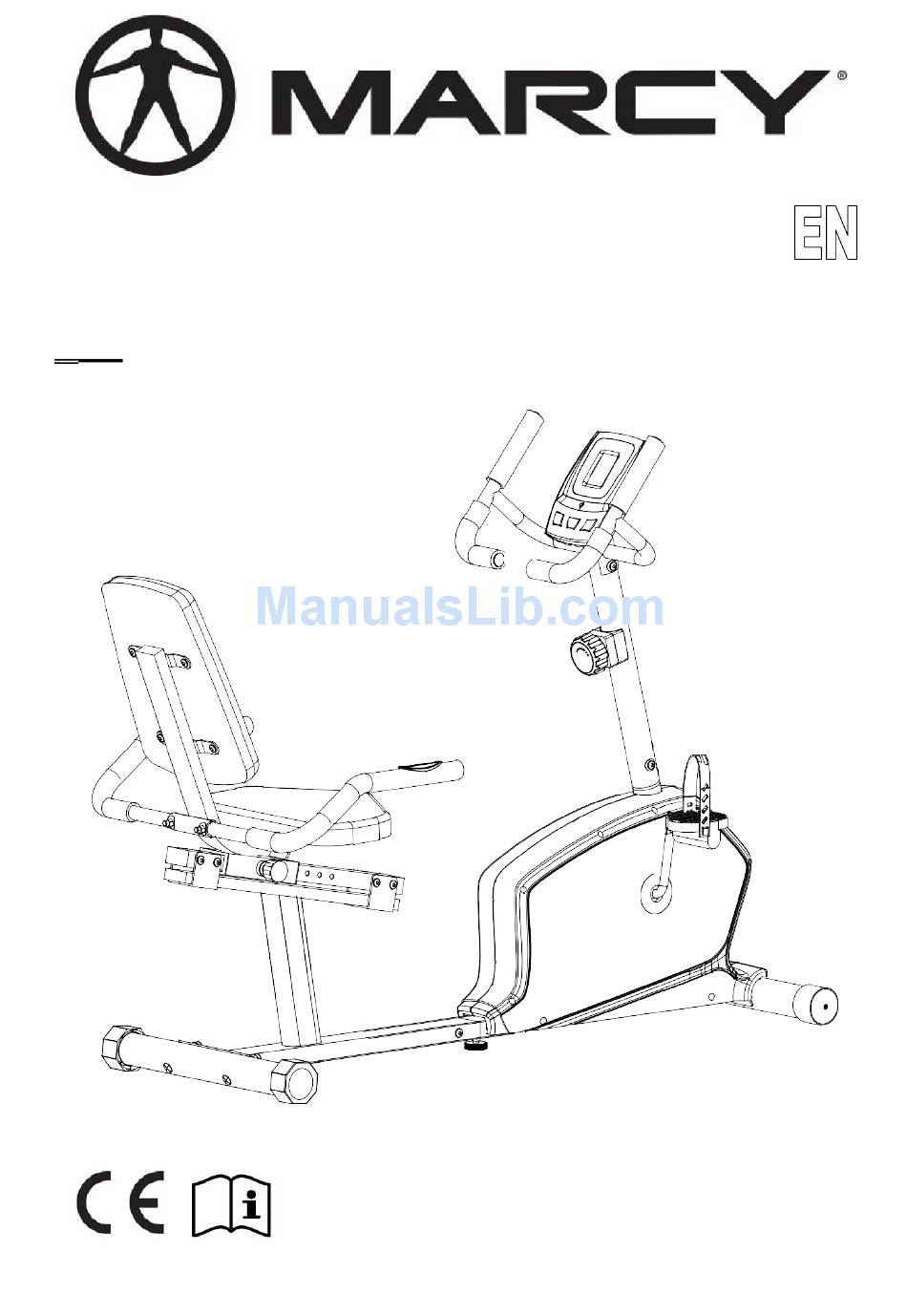

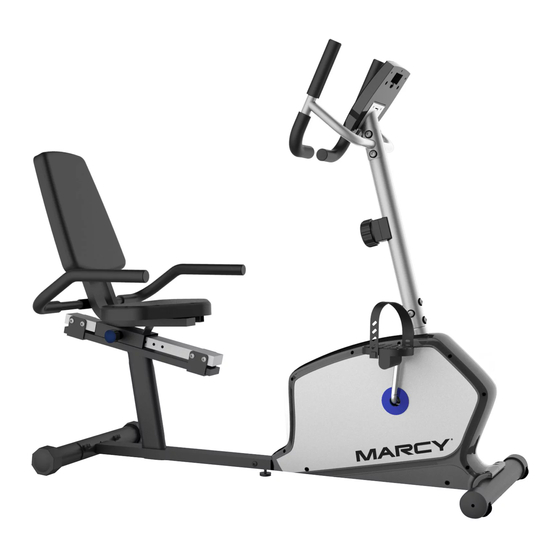

- Page 1 1201R RECUMBENT BIKE USER MANUAL Distributed By: Pure-Tec Limited www.puretecfitness.com www.puretecfitness.com...
-
Page 2: Table Of Contents
16-17 Parts List Additional Information Warranty Information BEFORE YOU BEGIN Thank you for selecting the MARCY 1201R Recumbent Bike. For your safety and benefit, read this manual carefully before using the equipment. As the official distributor for Marcy, committed providing complete customer satisfaction. -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THIS OWNER’S MANUAL CONTAINS ASSEMBLY, OPERATION, MAINTENANCE AND SAFETY INFORMATION. IN THE INTEREST OF SAFETY, PLEASE MAKE CERTAIN THAT YOU READ AND UNDERSTAND ALL THE INFORMATION BELOW. 1. This Recumbent Bike is intended for class H (H=Domestic) use only. It is not designed for commercial use. -
Page 4: Hardware Packing List
HARDWARE PACKING LIST Description Identifier Q’ty Allen screw M8*75 Spring washer Φ8 Curved washer Φ8*Φ20*1.5 Allen screw M8*16 Carriage bolt M10*75 Curved washer Φ10*Φ22*1.5 Carriage bolt M8*40 Domed nut M8 Domed nut M10 Flat washer Φ17*Φ8.5 Leveling pad Quick release knob Crossing Wrench Allen KeyL6 www.puretecfitness.com... - Page 5 PRE-ASSEMBLY CHECK LIST PART NO. DESCRIPTION Q’TY Main frame Front stabilizer Rear stabilizer Front post Computer Stationary handlebar R Stationary handlebar L Rear handlebar 36/37 Right / Left pedal Support tube Sliding tube Seat support bracket Back cushion Seat cushion www.puretecfitness.com...
-
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTION STEP 1 Attach the front stabilizer (3) to the main frame (1), securing with two allen screws (2), two spring washers (4) and two curved washers (5). STEP 2 Connect middle extension hand pulse wire (47) with rear extension hand pulse wire (46). Attach support tube (40) to main frame (1), and tighten with 6 sets of allen screw (21) and flat washer (38). - Page 7 STEP 3 Connect the upper extension sensor wire (34) to the lower sensor wire (35). Connect the front extension hand pulse wire (48) to the middle extension hand pulse wire (47). Attach front post (9) to the main frame (1). Secure using four curved washers (5) and four allen screws (21).
- Page 8 STEP 4 Insert the sliding tube (41) into seat support bracket (43). Line up the holes and secure sliding tube (41) with quick release knob (42). Attach seat cushion (45) to the seat support bracket (43). Secure using four allen screws (21). Attach the sliding tube (41) to the support tube (40).
- Page 9 STEP 6 Thread the Left Pedal (37) counterclockwise into the Crank (17). Thread the Right Pedal (36) clockwise into the Crank (17) on the other side. CHECK ALL BOLTS AND NUTS ARE TIGHTENED BEFORE USING THE MACHINE www.puretecfitness.com...
-
Page 10: Computer Instructions
COMPUTER INSTRUCTIONS FUNCTIONAL BUTTONS: MODE - Push down for selecting functions. - To set the values of time、distance、calories and pulse when not in scan mode. RESET - Push down for resetting time、distance and calories. FUNCTION AND OPERATIONS: 1. SCAN: Press “MODE” button until “SCAN” appears, monitor will rotate through all the 5 functions: Time、speed、distance、calorie and pulse. - Page 11 SPECIFICATIONS: AUTO SCAN Every 4 seconds TIME 00:00’~99:59’ CURRENT The maximum signal can be pickup is FUNCTION SPEED 99.9KM/H TRIP DISTANCE 0.00~99.99KM or 0.00~9999KM CALORIES 0.1~999.9kCAL PULSE RATE 40~206BPM BATTERY TYPE 2pcs of SIZE –AA or UM –3 OPERATING TEMPERATURE 0°C ~ +40°C STORAGE TEMPERATURE -10°C ~ +60°C...
-
Page 12: Exercise Instructions
EXERCISE INSTRUCTIONS Using your RECUMBENT BIKE will provide you with several benefits, it will improve your physical fitness, tone muscle and in conjunction with a calorie controlled diet help you lose weight. 1. The Warm Up Phase This stage helps get the blood flowing around the body and the muscles working properly. It will also reduce the risk of cramp and muscle injury. - Page 13 3. The Cool Down Phase This stage is to let your Cardio-vascular System and muscles wind down. This is a repeat of the warm up exercise e.g. reduce your tempo, continue for approximately 5 minutes. The stretching exercises should now be repeated, again remembering not to force or jerk your muscles into the stretch.
-
Page 14: Exploded Diagram
EXPLODED DIAGRAM www.puretecfitness.com... - Page 15 www.puretecfitness.com...
-
Page 16: Parts List
PART LIST Key No. Description Main frame Allen screw M8*75 Front stabilizer Spring washer Ф8 Curved washer Ф8*Ф20*1.5 Rear stabilizer End cap for front stabilizer End cap for rear stabilizer Front post Computer Right stationary handlebar Left stationary handlebar Rear handlebar Inner cap Upper foam grip for stationary handlebar Lower foam grip for stationary handlebar... - Page 17 PART LIST Key No. Description Seat support bracket Back cushion Seat cushion Middle extension hand pulse wire Rear extension hand pulse wire Front extension hand pulse wire Hand pulse sensor Flat washer Self tapping screw Self tapping screw ST5*15 Self tapping screw ST5*15 Crank cover Chain cover L/R Magnet assembly...
-
Page 18: Additional Information
ADDITIONAL INFORMATION Packaging Disposal Government guidelines ask that we reduce the amount of waste material disposed of in land fill sites. We therefore ask that you dispose of all packaging waste responsibly at public recycling centres. End of Life Disposal We at Pure-Tec Limited hope you enjoy many years of enjoyable use from your Recumbent Bike. -
Page 19: Pure-Tec Limited
LIMITED WARRANTY Pure-Tec warrants this product to be free from defects in workmanship and material, under normal use and service conditions. Please refer to www.puretecfitness.com for warranty terms. This warranty extends only to the original purchaser and is valid for home use only. Pure-Tec’s obligation under this Warranty is limited to replacing damaged or faulty parts at Pure-Tec’s option.
