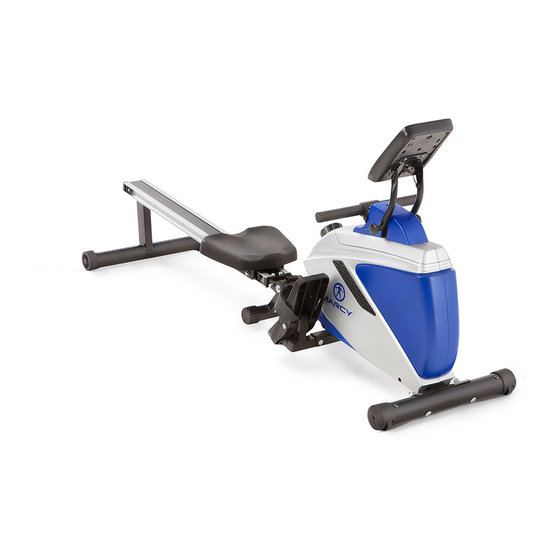

Page 1 NOTE: Please read all instructions carefully MAGNETIC UPRIGHT BIKE before using this product ME-1018RE Table of Contents Safety Notice Important Assembly Information Care and Maintenance Parts List Warranty Ordering Parts Model ME-1018RE Retain This Manual for Reference 180501 IMPORTANT: Please read this manual before commencing assembly of this product.
Page 2: Table Of Contents
EXERCISE GUIDELINES WARRANTY ORDERING PARTS BEFORE YOU BEGIN Thank you for selecting MARCY MAGNETIC ROWER ME-1018RE by ® IMPEX INC. For your safety and benefit, read this manual carefully before using the equipment. As a manufacturer, we are committed to providing you with complete customer satisfaction.
Page 3: Important Safety Notices
IMPORTANT SAFETY NOTICE This exercise equipment is built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise equipment. Be sure to read the entire manual before you assemble or operate your equipment. In particular, note the following safety precautions: 1.
Page 4: Warning Label Placement
WARNING LABEL PLACEMENT The warning labels shown here have been placed on the Base Frame. If the labels are missing or illegible, please call customer service at 1-800-999-8899 for replacements. Apply the labels in the location shown. © Impex Inc. www.marcypro.com...
Page 5: Hardware Pack
HARDWARE PACK NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size. Part NO Description Drawings Carriage Bolt M10x3" End cap for Slide Rail (Left) End cap for Slide Rail (Right) Curved Washer Φ¾" Domed Nut M10 Allen Bolt M6x½...
Page 6: Components
COMPONENTS FOR ASSEMBLY NO.14 NO.9 NO.3 NO.1 NO.17 NO.26 NO.28 NO.11 Q’TY PART NO. DESCRIPTION Main Frame Front Stabilizer w/end caps Computer Pedal L/R Pedal Support Tube 5L 5R Slide Rail Rear Stabilizer w/end caps Seat © Impex Inc. www.marcypro.com...
Page 7: Assembly Instructions
ASSEMBLY INSTRUCTION Step 1 1. Attach the front stabilizer (#3) to the front of the main frame (#1). Secure using two carriage bolts (#2), two curved washers (#6) and two domed nuts (#7). 2. Connect the computer sensor wire (#21) to the back of the computer (#9). 3.
Page 8 Step 2 1. Attach the pedal support tube (#17) to back of the main frame (#1). Secure using two carriage bolts (#19), two flat washers (#25) and two acorn nuts (#34). 2. Attach the left pedal (#14L) to the left bracket of the pedal support tube (#17). Slide the axle (#15) through the left pedal (#14L).
Page 9 Step 3 1. Insert the slide rail (#26) onto the U-type connect tube (#58). Secure using six Allen bolts (#24) and six washers (#25). 2. Attach two stoppers (#22) to the front of the slide rail (#26). Secure using two Allen bolts (#23).
Page 10 Step 4 1. Pull out the lock pin (#55) from the main frame (#1) and adjust it to the correct position, insert the lock pin (#55) to the main frame (#1) to lock the slide rail into position. © Impex Inc. www.marcypro.com...
Page 13: Parts List
ME-10118RE PARTS LIST PART PART Q’TY Q’TY DESCRIPTION DESCRIPTION Main Frame Adjust Assembly Carriage Bolt M10x3" Clip Front Stabilizer Bearing End Cap For Front Flange Nut Stabilizer End cap for Slide Rail Flywheel (Left) End cap for Slide Rail Hex Bolt M8x4" (Right) Self-Tapping Screw Curved Washer Φ¾"...
Page 14: Computer Instructions
End Cap For Rear Bracket for Rope Pulley Stabilizer Upper cover for Hex Bolt M6x¾ " handlebar Lower cover for Nylon Nut M8 handlebar Self-tapping screw Wheel ST4x½ " Sleeve Bearing Domed Nut M8 Spacer Seat Support Bolt Belt Washer Rope Pulley w/rope Screw Chain Cover Left...
Page 15 NOTE： 1. If the display is faint or does not show any digits, please replace the batteries. 2. The monitor will automatically shut off after 4 minutes of inactivity. 3. The monitor will be auto powered on when starting to exercise push button signal in. 4.
Page 16: Exercise Guidelines
EXERCISE GUIDELINES Magnetic Rower Using your will provide you with several benefits, it will improve your physical fitness, tone muscle and in conjunction with calorie controlled diet help you lose weight. 1. The Warm Up Phase This stage helps get the blood flowing around the body and the muscles working properly. It will also reduce the risk of cramp and muscle injury.
Page 17 This stage should last for a minimum of 12 minutes though most people start at about 15-20 minutes 3. The Cool Down Phase This stage is to let your Cardio-vascular System and muscles wind down. This is a repeat of the warm up exercise e.g.
Page 18: Warranty
® IMPEX INC. LIMITED WARRANTY ® IMPEX Inc. ("IMPEX ") warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of two years on the Frame from the date of purchase. This warranty extends only to the original purchaser.
