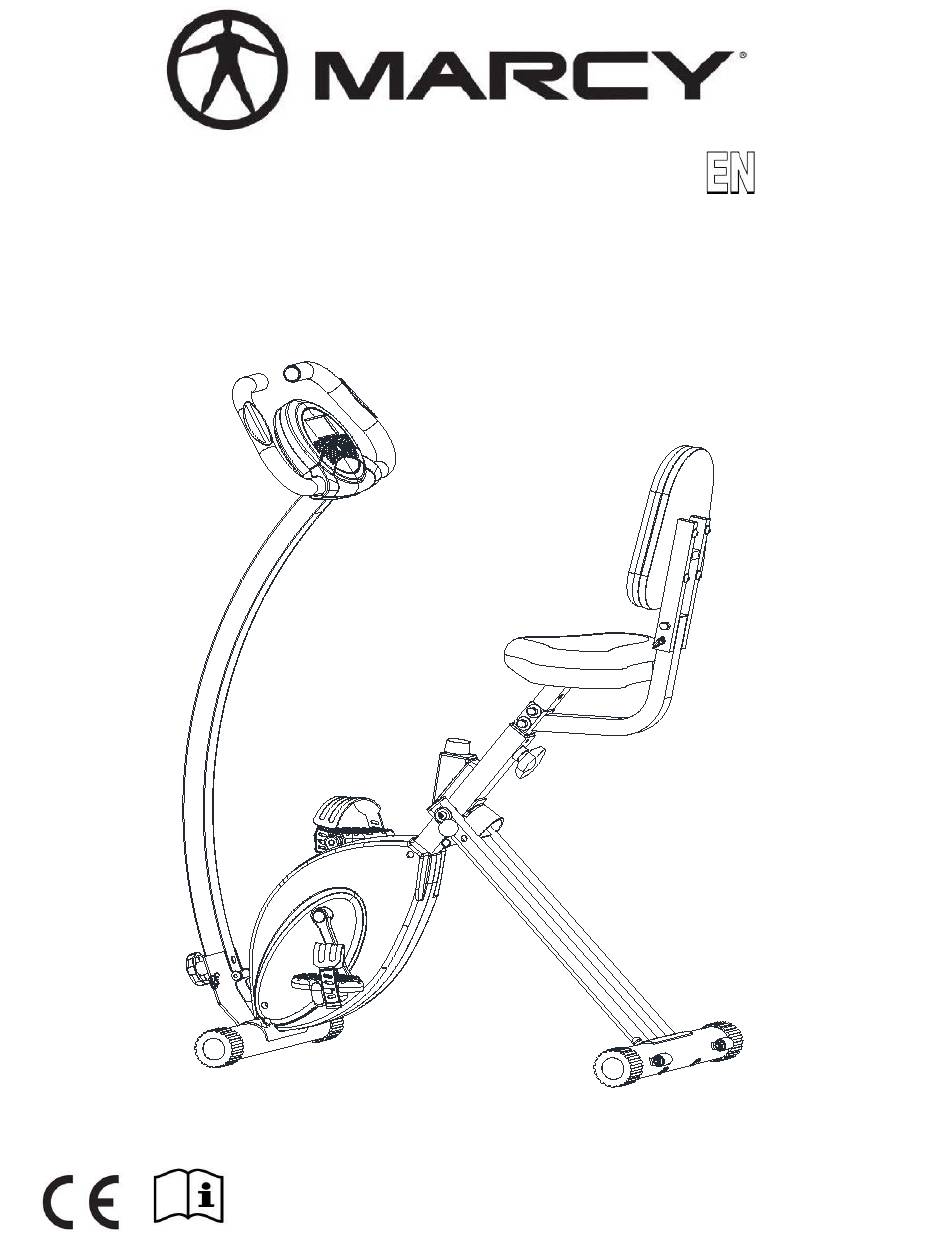

- Page 1 NS-653 FOLDABLE BIKE USER MANUAL Distributed By: Pure-Tec Limited www.puretecfitness.com...
-
Page 2: Table Of Contents
CONTENTS Important safety information Weight limit capacities HARDWARE PACK PRE-ASSEMBLY CHECK LIST ASSEMBLY INSTRUCTIONS 5-11 Computer Instructions Exercise Instructions 13-14 Exploded Diagram Parts list Additional information Warranty information www.puretecfitness.com... -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THIS OWNER’S MANUAL CONTAINS ASSEMBLY, OPERATION, MAINTENANCE AND SAFETY INFORMATION. IN THE INTEREST OF SAFETY, PLEASE MAKE CERTAIN THAT YOU READ AND UNDERSTAND ALL THE INFORMATION BELOW. 1.This Bike is intended for class H (H=Domestic) use only. It is not designed for commercial use. -
Page 4: Hardware Pack
HARDWARE PACK Description Identifier Q’ty Carriage Bolt M8 x 65L Carriage Bolt M8 x 50L Allen Bolt M8 x 45L Allen Bolt M8 x15L Washer Ø 8.3 x Ø 17.5 Curved Washer Ø8.3 x Ø 22 Washer Ø 8.3 x Ø 20 Spring Washer Nylon Nut M8... -
Page 5: Pre-Assembly Check List
Pre-Assembly Check List PART NO. DESCRIPTION Q’TY 01/02/03 Main frame Seat Post 05/06 Seat support/Backrest support Handle Bar Front Stabilizer Rear Stabilizer Backrest Board Backrest Handle Seat Pad Left Pedal Right pedal www.puretecfitness.com... -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTION STEP 1 A). Remove the plastic protection caps from end of Rear Support (#2), remove protection cap on top of Front Post (#3). B.) Pull out the Front Post Lock Pin (#29). Loosen the Lock Knob (#24) on Front Post (#3); pull Front Post forward and fasten the Lock Knob (#24). - Page 7 STEP 2 A.) Attach the Front Stabilizer (#8) to the bracket on bottom of Main Frame (#1). Secure it with two M10 Carriage Bolt (#10), two Curved Washers (#18), two Domed Nuts (#23), two M8 Allen Bolts (#14), and two Curved Washers (#18). B.) Attach the Rear Stabilizer (#9) to the bracket on bottom of Rear Support (#2), Secure it with two M8 Carriage Bolt (#10), two Curved Washers (#18), and two Domed Nuts (#23).
- Page 8 STEP 3 A.) Firmly thread the Left Pedal (#30) counter clockwise onto Left Crank (#25). B.) Firmly thread the Right Pedal (#31) clockwise onto Right Crank (#26) www.puretecfitness.com...
- Page 9 STEP 4 A.) Remove the three M8 Nylon Nuts (#22) and three Flat Washers (#13) under the Seat Pad (#20). B.) Insert the bolts under the Seat Pad (#20) onto the Seat Post (#4). Secure it with the three Nylon Nuts (#22) and three Flat Washers (#13). C.) Insert the Seat Post (#4) into the opening on Main Frame (#1).
- Page 10 STEP 5 A.) Attach Seat Support (#5) to Seat Post (#4). Secure it with two M8 Carriage Bolts (#11) and two Flat Washer (#16) and two M8 Nylon Nuts (#22). B.) Attach the Backrest Handle (#17) to the Seat Support. Secure it with two M8 Carriage Bolts (#11), two Flat Washers (#16), and two Domed Nuts (#23).
- Page 11 STEP 6 A.) Attach Handle Bar (#7) to Front Post (#3). Secure it with three M8 Allen Bolts (#14) and three Washers (#19). B.) Connect the Computer wire (#32) to Middle Sensor Wire (#33). www.puretecfitness.com...
- Page 12 FOLD THE BIKE A.) Pull out Backrest Board Lock Pin (#28). Fold down the Backrest Board (#15). Insert and store the Lock Pin back to the hole. B.) Pull out the Rear Support Lock Pin (#27). Pull the Rear Support (#2) toward the Main Frame (#1).
-
Page 13: Computer Instructions
COMPUTER AUTO START / STOP When exercise starts, the monitor will automatically turn on and display the progress. When exercise stops, the monitor will automatically turn off after 5 minutes to save energy. Press “MODE” key, will automatically scan Time, Speed, Distance, Calories, and ODO for every 4 seconds. -
Page 14: Exercise Instructions
EXERCISE INSTRUCTIONS Using your FOLDABLE BIKE will provide you with several benefits, it will improve your physical fitness, tone muscle and in conjunction with calorie controlled diet help you lose weight. 1. The Warm Up Phase This stage helps get the blood flowing around the body and the muscles working properly. - Page 15 3. The Cool Down Phase This stage is to let your Cardio-vascular System and muscles wind down. This is a repeat of the warm up exercise e.g. reduce your tempo, continue for approximately 5 minutes. The stretching exercises should now be repeated, again remembering not to force or jerk your muscles into the stretch.
-
Page 16: Exploded Diagram
Exploded Diagram www.puretecfitness.com... -
Page 17: Parts List
Parts List PART DESCRIPTION QUANTITY Main Frame Rear Support Front Post Seat Post Seat Support Backrest Support Handle Bar Front Stabilizer Rear Stabilizer Carriage Bolt Carriage Bolt Allen Bolt Flat Washer Allen Bolt Backrest Board Flat Washer Backrest Handle Curved Washer Washer Seat Pad Lock Washer... -
Page 18: Additional Information
ADDITIONAL INFORMATION Packaging Disposal Government guidelines ask that we reduce the amount of waste material disposed of in land fill sites. We therefore ask that you dispose of all packaging waste responsibly at public recycling centres. End of Life Disposal We at Pure-Tec Limited hope you enjoy many years of enjoyable use from your Trainer. -
Page 19: Warranty Information
LIMITED WARRANTY Pure-Tec warrants this product to be free from defects in workmanship and material, under normal use and service conditions. Please refer to www.puretecfitness.com for warranty terms. This warranty extends only to the original purchaser and is valid for home use only. Pure-Tec’s obligation under this Warranty is limited to replacing damaged or faulty parts at Pure-Tec’s option.
