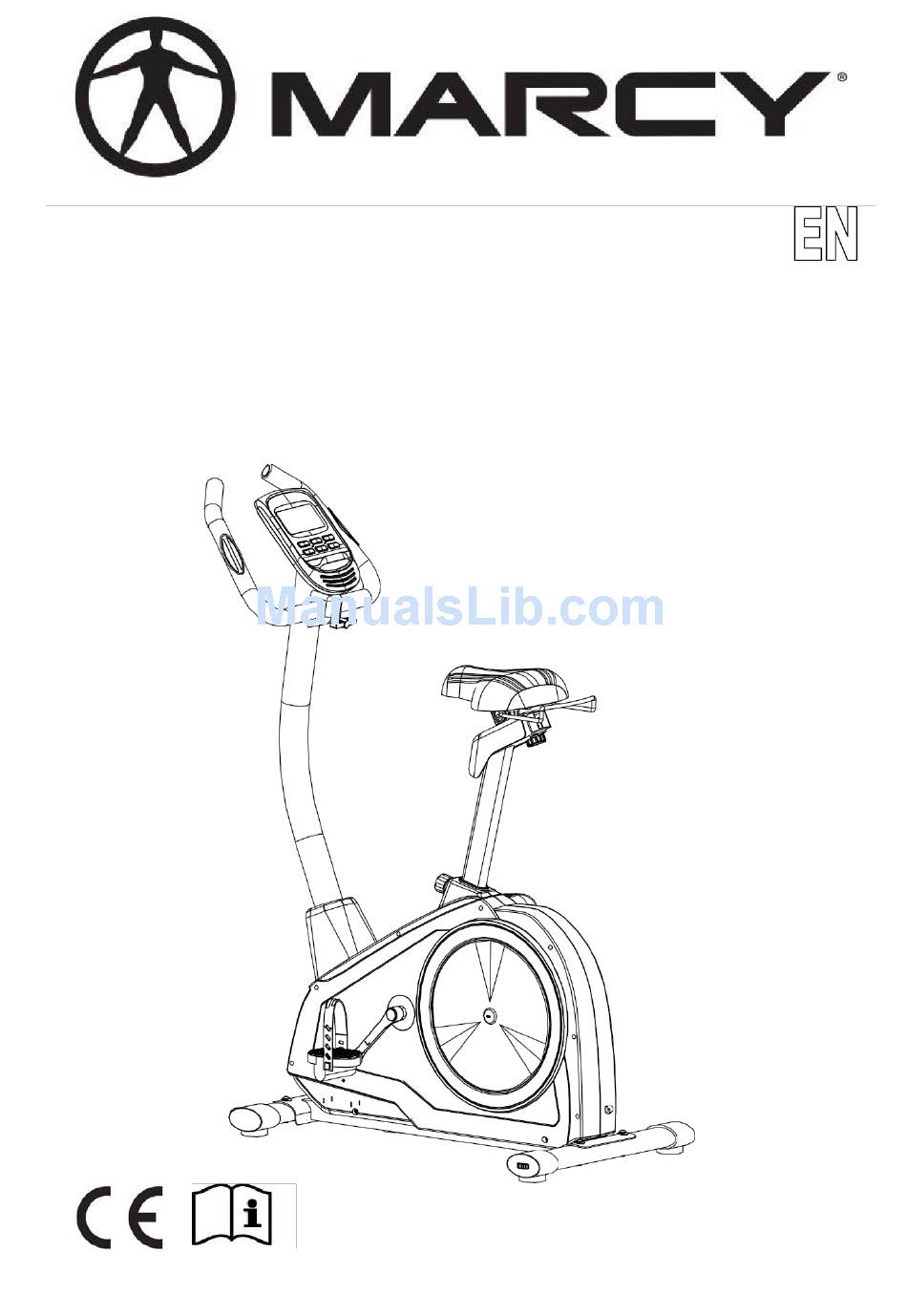

- Page 1 UPRIGHT BIKE USER MANUAL Distributed By: Pure-Tec Limited www.puretecfitness.com www.puretecfitness.com...
-
Page 2: Table Of Contents
CONTENTS Important Safety Information Weight Limit Capacities Hardware Parts List Pre Assembly Check List Assembly Instructions 6 - 11 Computer Instructions 12-19 Exercise Instructions 20-21 Exploded Diagram 22-23 24-25 Parts List Additional Information Warranty Information www.puretecfitness.com... -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THIS OWNER’S MANUAL CONTAINS ASSEMBLY, OPERATION, MAINTENANCE AND SAFETY INFORMATION. IN THE INTEREST OF SAFETY, PLEASE MAKE CERTAIN THAT YOU READ AND UNDERSTAND ALL THE INFORMATION BELOW. 1. This Bike is intended for class H (H=Domestic) use only. It is not designed for commercial use. -
Page 4: Hardware Packing List
HARDWARE PACKING LIST DESCRIPTION DRAWING Allen bolt M8*55 Curved washerΦ22 Allen bolt M8*16 T type knob Clamp cover Quick release knob Spring washerФ8 Box Wrench Allen key L6 www.puretecfitness.com... -
Page 5: Pre Assembly Check List
PRE-ASSEMBLY CHECK LIST 9/10 Q’TY PART NO. DESCRIPTION Main frame Front support Seat support Meter 9/10 Pedal ( L/R ) Front support cover Seat Towel holder Handlebar Front stabilizer Rear stabilizer Sliding seat cover www.puretecfitness.com... -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTION STEP 1 Attach the front stabilizer (2) to the front of the main frame (1), fasten with two curved washers (16), two spring washers (73) , two allen bolts (15). Attach the rear stabilizer (3) to the rear of the main frame (1), fasten with two curved washers (16), two spring washers (73), two allen bolts (15). - Page 7 STEP 2 Connect the upper sensor wire (33) from the front support (4) to the lower sensor wire (34). through on the front support cover (38) on the front support (4). Insert the front support (4) into the main frame (1) and fasten with four allen bolts (18) and four curved washers (16).
- Page 8 STEP 3 Attach the handlebar (5) to the front support (4) and fasten with one clamp (25), one allen bolt (22), one clamp cover (37) and one T type knob (21). Connect the upper sensor wire (33) to the sensor wire on the back of the meter (6). Insert the hand pulse wire (20) through grommet (32) on front support (4) and pull it out of front support (4), Insert the hand pulse wire (20) to the pulse hole on the back of meter (6).
- Page 9 STEP 4 Attach the sliding seat cover (12) to the seat support (7) and fasten with one self-tapping screw (39). Attach the towel holder (76) to the seat (8) and fasten with two nut (54) and two washer (35) which are pre-assemble on the seat (8) Release two nuts on the back of seat (8) and attach it to the seat support (7), then fix the seat by tightening two nuts.
- Page 10 STEP 5 The pedals (9 & 10) are marked "L" and "R" - Left and Right. Connect them to their appropriate crank arms on the main frame (1). The right crank arm is on the right- hand side of the cycle as you sit on it. Note the right pedal should be threaded on clockwise and the left pedal anticlockwise.
- Page 11 STEP 6 Connect the Adapter Jack into Main Frame (1) www.puretecfitness.com...
-
Page 12: Computer Instructions
COMPUTER INSTRUCTIONS The things you should know before exercise A. Input Power Plug in the adaptor to the equipment then the computer will produce a beep sound and turn on the computer at the Manual mode. B. Program select and setting value 1. - Page 13 status with the grade F1.0 to F6.0. means OUTSTANDING 1.0＜F＜2.0 means EXCELLENT 2.0≦F≦2.9 means GOOD 3.0≦F≦3.9 means FAIR 4.0≦F≦5.9 means BELOW AVERAGE means POOR Note: If no pulse signal input then the computer will show “P” on the PULSE window. If the computer shows “ERR”...
- Page 14 ENTER key to confirm your desired Pulse. 7. Press the START/STOP key to begin exercise. Preset Program: Steps, Hill, Rolling, Valley, Fat Burn, Ramp, Mountain, Intervals, Random, Plateau, Fartlek, Precipice Program PROGRAM 2 to PROGRAM 13 is the preset programs. Users can exercise with different level of loading in different intervals as the profiles show.
- Page 15 Heart Rate Control Program: 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Target H.R.C. Program 18 to Program 22 is the Heart Rate Control Programs and Program 22 is the Target Heart Rate Control program. Program 18 is the 55% Max H.R.C. - - Target H.R. = (220 – AGE) x 55% Program 19 is the 65% Max H.R.C.
- Page 16 confirm your Gender. The default sex is 1 (MAN). 6. The AGE will flash and you can press UP or DOWN keys to set your AGE. Press ENTER key to confirm your AGE. The default AGE is 35. 7. Press the START/STOP key to begin body fat measurement. If the window show E on the window, please make sure your hands are attached well on the grips or the chest belt is touch well on your body.
- Page 17 PROGRAM 4 PROGRAM 5 PROGRAM 6 ROLLING VALLEY FAT BURN PROGRAM 7 PROGRAM 8 PROGRAM 9 RAMP MOUNTAIN INTERVALS PROGRAM 10 PROGRAM 11 PROGRAM 12 RANDOM PLATEAU FARTLEK PROGRAM 13 PRECIPICE USER SETTING PROGRAM PROGRAM 14 USER 1 PROGRAM 15 USER 2 PROGRAM 16 USER 3...
- Page 18 PROGRAM 17 USER 4 HEART RATE PROGRAM PROFILES: PROGRAM 18 55% H.R.C. PROGRAM 19 65% H.R.C. PROGRAM 20 75% H.R.C. PROGRAM 21 85% H.R.C. PROGRAM 22 TARGET H.R.C. www.puretecfitness.com...
- Page 19 BODY FAT TEST PROGRAMS: PROGRAM 23 BODY FAT (STOP MODE) BODY FAT (START MODE) One of the Following Six Profiles Will Display Automatically after Measuring Your BODY FAT: Workout Time: 40 minutes Workout Time: 40 minutes Workout time: 20 minutes Workout Time: 40 minutes Workout Time: 40 minutes Workout time: 20 minutes...
-
Page 20: Exercise Instructions
EXERCISE INSTRUCTIONS Using your UPRIGHT BIKE will provide you with several benefits, it will improve your physical fitness, tone muscle and in conjunction with a calorie controlled diet help you lose weight. 1. The Warm Up Phase This stage helps get the blood flowing around the body and the muscles working properly. It will also reduce the risk of cramp and muscle injury. - Page 21 3. The Cool Down Phase This stage is to let your Cardio-vascular System and muscles wind down. This is a repeat of the warm up exercise e.g. reduce your tempo, continue for approximately 5 minutes. The stretching exercises should now be repeated, again remembering not to force or jerk your muscles into the stretch.
-
Page 22: Exploded Diagram
EXPLODED DIAGRAM 31 30 21 13 www.puretecfitness.com... - Page 23 www.puretecfitness.com...
-
Page 24: Parts List
PARTS LIST PART NO. DESCRIPTION Q’TY Main frame Front stabilizer Rear stabilizer Front support Handlebar Meter Seat support Seat Pedal ( L ) Pedal ( R ) Quick release knob Sliding seat cover Sliding seat U plate Allen bolt M8*55 Curved washer Seat bushing Allen bolt M8*16... - Page 25 PARTS LIST PART NO. DESCRIPTION Q’TY front support cover Self-tapping screw Self-tapping screw ST5*15 Motor Power wire Motor wire Sensor wire Chain cover ( L/R ) End cap for chain cover End cap for crank Crank ( L ) Crank ( R ) Flange nut PVC cover Flywheel set...
-
Page 26: Additional Information
ADDITIONAL INFORMATION Packaging Disposal Government guidelines ask that we reduce the amount of waste material disposed of in land fill sites. We therefore ask that you dispose of all packaging waste responsibly at public recycling centres. End of Life Disposal We at Pure-Tec Limited hope you enjoy many years of enjoyable use from your Bike. -
Page 27: Www.puretecfitness.com
LIMITED WARRANTY Pure-Tec warrants this product to be free from defects in workmanship and material, under normal use and service conditions. Please refer to www.puretecfitness.com for warranty terms. This warranty extends only to the original purchaser and is valid for home use only. Pure-Tec’s obligation under this Warranty is limited to replacing damaged or faulty parts at Pure-Tec’s option.
Need help?
Do you have a question about the B80 and is the answer not in the manual?
Questions and answers
E3 error message. How do I correct this.
The E3 error on the Marcy B80 indicates that, within 4 seconds of starting, the motor failed to move from the zero point. To fix this:
1. Check if the motor is connected properly.
2. Ensure there are no obstructions preventing motor movement.
3. Verify the power adapter is supplying the correct output (6V DC, 0.5–1A).
4. Restart the machine and try again.
If the issue continues, the motor may be faulty and need service or replacement.
