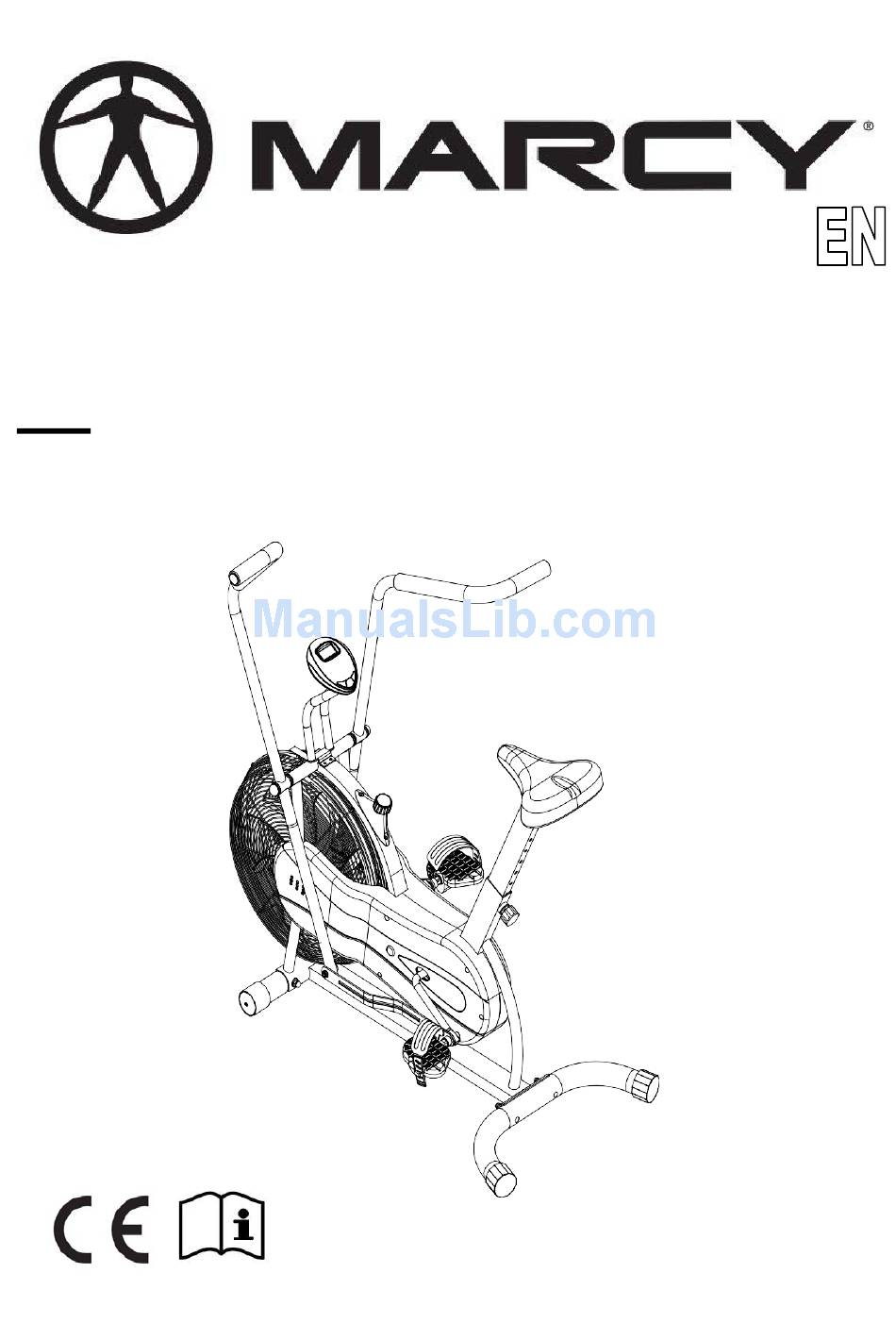

  • Page 1 NS-BK1000 BK-1000 FAN BIKE USER MANUAL 010817...
  • Page 2 CONTENTS Important Safety Information Weight Limit Capacities Hardware Parts List Pre Assembly Check List Assembly Instructions 6 - 11 Computer Instructions 12-13 Exercise Instructions 13-14 Exploded Diagram Parts List 16-17 ADDITIONAL INFORMATION 18 - 19 Supplied by: Pure-Tec Limited Tel: +44 (0) 1482 212098 Email: service@puretecfitness.com www.puretecfitness.com...
  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THIS OWNER’S MANUAL CONTAINS ASSEMBLY, OPERATION, MAINTENANCE AND SAFETY INFORMATION. IN THE INTEREST OF SAFETY, PLEASE MAKE CERTAIN THAT YOU READ AND UNDERSTAND ALL THE INFORMATION BELOW. 1. This Bike is intended for class H (H=Domestic) use only. It is not designed for commercial use.
  • Page 4 HARDWARE PACKING LIST...
  • Page 5 PRE-ASSEMBLY CHECK LIST PART NO. DESCRIPTION Q’TY Main frame Rear Stabilizer Left Handlebar Right Handlebar Seat Post Lower Handlebar Connecting Rod Computer Post Front Stabilizer Axle Seat Pad Axle Seat Pad 29/30 Left/Right Pedal 1/1. Computer...
  • Page 6: Assembly Instruction

    ASSEMBLY INSTRUCTION STEP 1 Attach the Front Stabilizer (8) to the Main Frame (1). Secure it with two Carriage Bolts (11), two Curved Washers (24), and two Domed Nuts (19). Attach the Rear Stabilizer (2) to the Main Frame (1). Secure it with two Carriage Bolts (11), two Curved Washers (24), and two Domed Nuts (19).
  • Page 7 STEP 2 Insert the two Lower Handlebars (6) into Left & Right Handlebar (3 & 4) from bottom. Secure each set of Handlebar with two Allen Bolts (13) and two Curved Washers (23). Do not fasten the Bolts yet.
  • Page 8 STEP 3 Remove the Flat Washer (21) and Aircraft Nut (18) from one end of the Axle (22). Insert this open end of Axle through the pivot on Right Handlebar, pivot on Main Frame (1), and through the pivot on Left Handlebar (3). Secure the open end of Axle with the Flat Washer (21) and M10 Aircraft Nut (18) removed in procedureA.
  • Page 9 STEP 4 Slide one Spacer (28) onto the bolt on Left Pedal (29). Plug one Bushing (33) into the hole on Connecting Rod (10) from the other side. Insert the Left Pedal bolt through the hole on Connecting Rod and the Bushing. Thread the end of Left Pedal bolt firmly into the Left Locking Nut (15) to securely hold the Left Pedal in position.
  • Page 10 STEP 5 Remove the three Flat Washers (27) and three M8 Aircraft Nuts (17) from the Seat Pad (26). Attach the Seat Pad (26) to the Seat Post (5). Securely fasten the Seat Pad to Seat Post with the three Flat Washers (27) and three Aircraft Nuts (17). Insert the Seat Post into the opening on Main Frame (1).
  • Page 11 STEP 6 Attach the Computer Post (7) to Main Frame (1). Secure it with two Allen Bolts (13). Connect the Lower Computer Wire (20) from Main Frame to the computer wire from Computer Post. Remove the two Phillips Screws (14) from the Computer (32). Attach the Computer to Computer Post.
  • Page 12: Computer Instructions

    COMPUTER INSTRUCTIONS KEY FUNCTIONS: MODE: This key lets you to select and lock on to a particular function you want. SET(IF HAVE) :To set the values of time. distance and calories when not in scan mode. RESET/CLEAR (IF HAVE): The key to reset the value to zero by pressing the key . FUNCTIONS: 1.TIME : Press the MODE key until pointer lock in to TIME.
  • Page 13: Specifications

    SPECIFICATIONS TIME------------------------------------------------------------------------0:00~99:59MIN SPEED---------------------------------------------------------------------0.0~999.9ML/H (KM/H) DISTANCE----------------------------------------------------------------0.0~999.9ML (KM) CALORIE-----------------------------------------------------------------0.0~999.9KCAL ODOMETER (IF HAVE) ----------------------------------------------- 0~9999ML (KM) PULSE (IF HAVE) ------------------------------------------------------40~240BPM EXERCISE INSTRUCTIONS Using your UPRIGHT BIKE will provide you with several benefits, it will improve your physical fitness, tone muscle and in conjunction with a calorie controlled diet help you lose weight.
  • Page 14 This stage should last for a minimum of 12 minutes though most people start at about 15-20 minutes 3. The Cool Down Phase This stage is to let your Cardio-vascular System and muscles wind down. This is a repeat of the warm up exercise e.g.
  • Page 15 EXPLODED DIAGRAM...
  • Page 16: Parts List

    PARTS LIST PART NO. DESCRIPTION QUANTITY Main Frame Rear Stabilizer Left Handlebar Right Handlebar Seat Post Lower Handlebar Computer Post Front Stabilizer Crank Connecting Rod Carriage Bolt Upper Computer Wire Allen Bolt Phillips Screw Left Locking Nut Right Locking Nut Aircraft Nut Aircraft Nut Domed Nut...
  • Page 17 PARTS LIST PART NO. DESCRIPTION QUANTITY BB Assembly Grommet Fan Wheel End Cap For Rear Stabilizer End Cap For Front Stabilizer Foam Grip Left Fan Wheel Cover Right Fan Wheel Cover Left Chain Cover Right Chain Cover Decorating Cover Sleeve Chain Hex Head Bolt Tension Knob...
  • Page 18 ADDITIONAL INFORMATION Packaging Disposal Government guidelines ask that we reduce the amount of waste material disposed of in land fill sites. We therefore ask that you dispose of all packaging waste responsibly at public recycling centres. End of Life Disposal We at Pure-Tec Limited hope you enjoy many years of enjoyable use from your Bike.
  • Page 19: Limited Warranty

    LIMITED WARRANTY Pure-Tec. warrants this product to be free from defects in workmanship and material, under normal use and service conditions. Please refer to www.puretecfitness.com for warranty conditions. This warranty extends only to the original purchaser and is valid for home use only.
