Summary of Contents for Inspur NF8260M5

  • Page 1 Inspur Server User Manual NF8260M5...
  • Page 2 Inspur. The information in this manual is subject to change without notice. Inspur is the registered trademark of Inspur. All the other trademarks or registered trademarks mentioned in this manual are the property of their respective holders.
  • Page 3 4.Please install the product-compatible operating system and use the driver provided by Inspur. If you use an incompatible operating system or non-Inspur driver, it may cause compatibility issues and affect the normal use of the product, Inspur will not assume any responsibility or liability.

  • Page 4: Table Of Contents

    Contents 1 Safety Instructions ......................... 1 2 Product Specification ........................6 2.1 Introduction ..........................6 2.2 Features and Specifications ......................7 2.3 Power Efficiency ......................... 8 3 Component Identification ......................10 3.1 Front Panel Components ......................10 3.2Rear Panel Components ......................11 3.3MotherboardComponents ......................
  • Page 5 6.2 Processor Option ........................26 6.3 Memory Option .......................... 28 6.4 Hot-plug HDDOption ........................30 6.5 Redundant Hot-plug Power Supply Option ................32 6.6Air BaffleOption ........................... 33 7 BIOS Setup ............................. 34 7.1 Common Operations ........................34 7.2 BIOS Parameter Description ....................... 52 7.3 Firmware Update ........................
  • Page 6 8.23 Firmware Update ........................165 8.24 Restore Factory Default ......................170 8.25 Serial Over LAN (SOL) and System Serial Log Recording ............171 8.26 Console Redirection(KVM) ....................... 173 8.27 Virtual Media ..........................177 8.28 Redfish ............................178 8.29 Appendix ..........................183 9 Common Faults, Diagnosis and Troubleshooting ................

  • Page 7: Safety Instructions

    For your safety, please do not attempt to remove the cover of the system to remove or replace any component without assistance provided by Inspur. Only service technicians trained by Inspur are authorized to remove the cover of the host, and to remove and replace internal components.
  • Page 8 Please do not push any objects into the openings of the system. Doing so may cause fire or electric shock. Please place the system far away from the cooling plate and heat sources, and be sure not to block the air vents. Please be sure not to scatter food or liquid in the system or on other components, and do not use the product in humid or dusty environments.
  • Page 9 Please remember that only service technicians trained by Inspur are authorized to remove the cover of the host, and to remove and replace internal components.
  • Page 10 Upon receiving the proper authorization from Inspur and dismounting the internal components, please pay attention to the following: Switch the system power supply off and disconnect the cables, including all connections of the system.
  • Page 11 Safety Introduction When pressing down the release latch and the rail of components is sliding, please be careful; as the sliding may hurt your fingers. Do not overload the AC power supply branch circuits in the rack. The total load of the rack should not exceed 80% of the ratings of the branch circuits.

  • Page 12: Product Specification

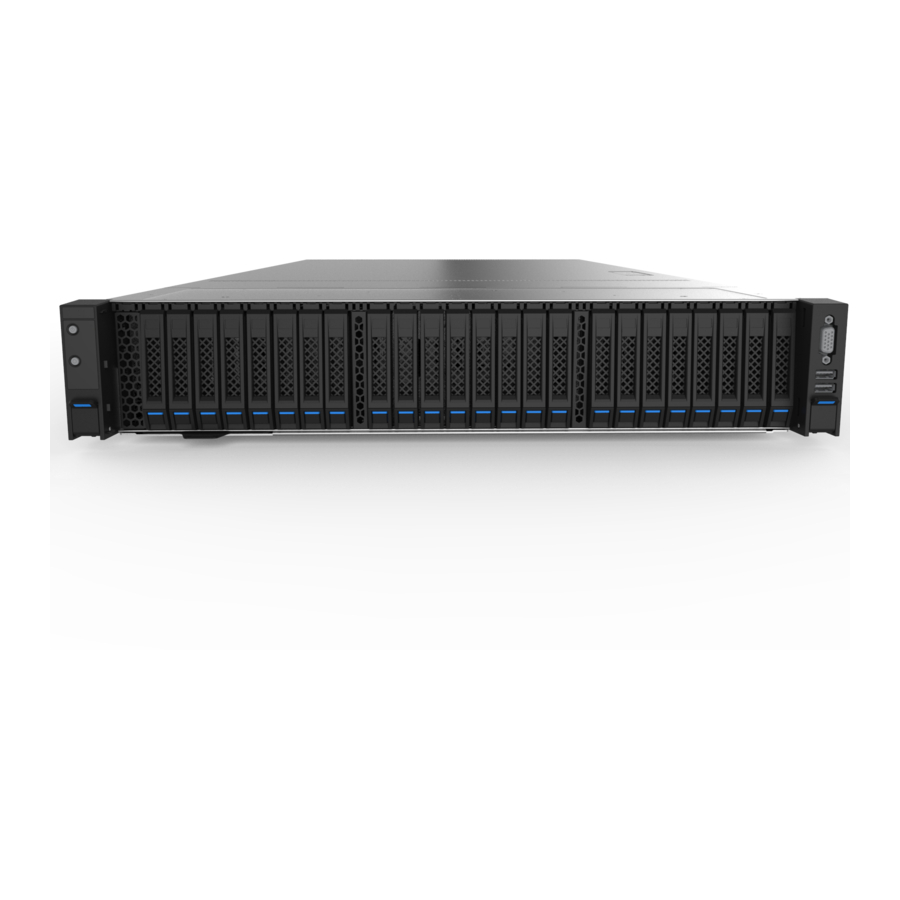

    2 Product Specification 2.1 Introduction Inspur NF8260M5 is a 2U4S rack-mounted server, which is designed based on the new generation of Intel® Xeon® scalable processor, to satisfy the requirements of virtualization, data base (OLAP/OLTP), CRM, SAP, HANA, HPC and other compute-intensive scenarios. This...

  • Page 13: Features And Specifications

    Supports embedded high-capacity flash memory, built-in Inspur InCloud Manager, greatly simplifies the user’s equipment deployment, management and maintenance. 2.5 x 24 configuration (i.e. Full Configuration) ...

  • Page 14: Power Efficiency

    Drive Drive Type SSD/SATA/SAS/NVME: supports up to 24 2.5” SAS/SATA/SSD disks, and up to 6 NVME SSDs External Storage Drive Optical Drive Supports external USB drive TF Card Built-in TF card Power Dual power supply with 800W/1300W/1600W/2000Wand above output power; Specification 1+1 redundancy Power Input...
  • Page 15 Product Specification Table 2-3 High-end Low-end performance EU Regulation 2019/424 performance Server configurations configuration configuration (h) idle state power 342.8W 270.1W (i) list of all components for additional idle power allowances, if any (additional PSU, HDDs or SSDs, additional memory, additional buffered DDR channels, additional I/O devices);...

  • Page 16: Component Identification

    3 Component Identification 3.1 Front Panel Components 2.5” × 24 HDD Bays  Figure 3-1 Figure 3-1 Item Description Front control panel buttons and LEDs Quick release lever HDD bays VGA port USB3.0 port USB2.0 + LCD port 2.5” × 24 HDD sequence diagram Figure 3-2 Front Control Panel Buttons and LEDs ...

  • Page 17: Rear Panel Components

    Component Identification Figure 3-2 Item Description Power button UID│RST button System failure LED Memory failure LED Fan failure LED Power failure LED System overheat LED Network status LED HDD Tray LEDs  Figure 3-4 Figure 3-3 Item Description Status & Interpretation Steady red: An HDD failure occurs Fault alarm LED Steady blue: HDD positioning...

  • Page 18: Motherboardcomponents

    Figure 3-4 Item Description PCIE slots (CPU0/3) PCIE slots (CPU0/1) PCIE slots (CPU1) MLAN port VGA port USB3.0 ports (2) Serial port BMC_RST button UID│RST button OCP card RJ45 latch PSU0 PSU1 GPU0 GPU2 GPU1 GPU3 3.3 Motherboard Components Figure 3-6...
  • Page 19 Component Identification Figure 3-5 Item Description BMC_RST button UID│RST button OCPB connector OCPC connector PCH TF card slot PSOC TF card slot OCPA connector Motherboard handle0 PCIE2_CPU1 slot PSU0 connector PSU1 connector DIMM slots (CPU1) GPU3 power connector0 GPU2 power connector GPU1 power connector GPU0 power connector GPU3 I2C connector...
  • Page 20 Item Description CPU0 socket DIMM slots (CPU0) Front panel right lug connector M2_RISER connector SATA0-3 connector TPM_SPI connector PCIE0_CPU0/3 slot CLR_CMOS Network management port VGA port USB3.0 ports (2) Serial port USB3.0 port (1) BMC_TF connector TPM_LPC connector PCIE1_CPU0/1 slot Motherboard Jumper Introduction ...

  • Page 21: Operations

    Operations 4 Operations 4.1 Power up the Server Insert the power cord plug, then press the Power Button. 4.2 Power down the Server WARNING: To reduce the risk of personal injury, electric shock, or damage to the equipment, remove the power cord to remove power from the server. The front panel Power Button does not completely shut off system power.

  • Page 22: Remove The Access Panel

    Figure 4-1 After performing the installation or maintenance procedure, slide the server back into the rack until it clicks into place. WARNING: To reduce the risk of personal injury, be careful when sliding the server into the rack. The sliding rails could pinch your fingers. Figure 4-2 4.4 Remove the Access Panel WARNING:...

  • Page 23: Install The Access Panel

    Operations the access panel is open. To remove the component: Power down the server if performing a non-hot-plug installation or maintenance procedure. Extend the server from the rack. Loosen the security screws on the back of access panel. Lift up on the hood latch handle, and then remove the front access panel. Figure 4-3 4.5 Install the Access Panel Place the access panel on top of the server with the hood latch open.

  • Page 24: Remove The Pcieriser Cage

    4.6 Remove the PCIE Riser Cage CAUTION: To prevent damage to the server or expansion boards, power down the server and remove all AC power cords before removing or installing the PCIE riser cage. Power down the server. Extend the server from the rack. Remove the access panel.

  • Page 25: Remove The Air Baffle

    Operations 4.8 Remove the Air Baffle CAUTION: For proper cooling, do not operate the server without the access panel, air baffle, or fan installed. If the server supports hot-plug components, minimize the amount of time the access panel is open. Power down the server.

  • Page 26: Setup

    Leave a minimum clearance of 121.9 cm (48 in) from the back of the rack to the back of another rack or row of racks. Inspur servers draw in cool air through the front door and expel warm air through the rear door. Therefore, the front and rear rack doors must be adequately ventilated to allow ambient room air to enter the cabinet, and the rear door must be adequately ventilated to allow the warm air to escape from the cabinet.
  • Page 27 Setup • Front and rear doors—If the 42U rack includes closing front and rear doors, you must allow 5,350 sq cm (830 sq in) of holes evenly distributed from top to bottom to permit adequate airflow (equivalent to the required 64 percent open area for ventilation). •...
  • Page 28 Because of the high ground-leakage currents associated with multiple servers connected to the same power source, Inspur recommends the use of a PDU that is either permanently wired to the building’s branch circuit or includes a nondetachable cord that is wired to an industrial-style plug.

  • Page 29: Rack Warnings

    Setup 5.2 Rack Warnings WARNING: To reduce the risk of personal injury or damage to the equipment, please be sure of the following: • The leveling jacks are extended to the floor. • The full weight of the rack rests on the leveling jacks. •...

  • Page 30: Installing Hardware Options

    5.4 Installing Hardware Options Install any hardware options before initializing the server. For options installation information, refer to the option documentation. For server-specific information, refer to “Hardware options installation”. 5.5 Installing the Server into the Rack CAUTION: Always plan the rack installation so that the heaviest item is on the bottom of the rack.

  • Page 31: Installing The Operating System

    5.6 Installing the Operating System To operate properly, the server must have a supported operating system installed. For the latest information on supported operating systems, refer to the Inspur website (http://www. inspur.com/eportal/ui?pageId=2317460). To install the operating system on the server, you can download from the official website...

  • Page 32: Hardware Options Installation

    6 Hardware Options Installation 6.1 Introduction If more than one option is being installed, read the installation instructions for all the hardware options and identify similar steps to streamline the installation process. WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the internal system components to cool before touching them.
  • Page 33 Hardware Options Installation and CPU together. Figure 6-1 Step 2: Align the heatsink position marked by “1” with the Clip’s triangle mark, vertically align the mounting holes on the heatsink with those on the Clip, and assemble the heatsink and Clip together. Figure 6-2...

  • Page 34: Memory Option

    Step 3: Install the assembled heatsink module onto the CPU socket, and the position marked by “1” should be aligned with the triangle mark on the CPU socket. Tighten the screws according to the sequence of 1, 2, 3, 4. Figure 6-3 Notes: ●...
  • Page 35 Hardware Options Installation Figure 6-4 ● DIMM population guidelines: Figure 6-5...

  • Page 36: Hot-Plug Hddoption

    C=Channel D=DIMM C0D0=Channel0 DIMM0 Each CPU should be installed with 1 DIMM at least. If there is only 1 DIMM, install it into C0-D0. DIMMs are evenly distributed to each CPU by the amount of DIMM quantity/4. If the total number is not a multiple of 4, install them in order of CPU0/1/2/3.
  • Page 37 Hardware Options Installation Figure 6-7 Step 2: The lever on HDD tray pops up automatically, pull it outwards and remove the HDD tray. Figure 6-8 Step 3: Use four screws to fix the HDD into the tray. Figure 6-9 Step 4: Install the HDD into the chassis, and lock the lever firmly.

  • Page 38: Redundant Hot-Plug Power Supply Option

    6.5 Redundant Hot-plug Power Supply Option CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless all bays are populated with either a component or a blank. Access the product rear panel. Remove the power supply blank. WARNING: To reduce the risk of personal injury from hot surfaces, allow the power supply or power supply blank to cool before touching it.

  • Page 39: Air Baffleoption

    Hardware Options Installation Connect the power cord to the power supply. Route the power cord through the power cord anchor or cable management arm. Reposition the cable management arm into the operating position. Connect the power cord to the power source. Verify that the corresponding power supply LED is green.

  • Page 40: Bios Setup

    Power on the server. The system will then start to boot. When “Press <DEL> to Setup or <TAB> to post or <F11> to Boot Menu or <F12> to PXE Boot.” appears below Inspur logo on the screen, press DEL key. When “Entering Setup …” appears in the lower right corner of the screen, it will enter the BIOS setup soon.
  • Page 41 BIOS Setup Table 7-1 BIOS Setup Interface Control Key Instruction Table Function <Esc> Exit or return from submenu to main menu <←> or <→> Select a menu <↑> or <↓> Move the cursor up or down <Home> or <End> Move the cursor to the top or bottom of the screen Select the previous or next numerical value or setting of the current <+>...
  • Page 42 Network, Storage, Video Oprom Policy and Other PCI devices, as shown in the following figure. At present, NF8260M5 server is set to UEFI Mode by default. Compared with Legacy mode, UEFI mode has many advantages: it supports boot from the GPT disk, supports IPv6/ IPv4 PXE boot, and provides UEFI Shell environment.
  • Page 43 BIOS Setup Figure 7-3 7.1.4 View CPU Information Login to the BIOS interface, select “Processor -> Processor Configuration -> Processor Information”, and press Enter to display the CPU detailed information, as shown in the following figure. Figure 7-4...
  • Page 44 Figure 7-5 7.1.5 View Memory Information Login to the BIOS interface, select “Processor -> Memory Configuration -> Memory Topology”, and press Enter to display the manufacturer, speed, capacity and other information of the memories in position, as shown in the following figure. Figure 7-6...
  • Page 45 BIOS Setup 7.1.6 View HDD Information and RAID Configuration 7.1.6.1 View HDD Information Login to the BIOS interface, select “Chipset -> PCH SATA Configuration/PCH sSATA Configuration”, and press Enter to display the HDD information of the current onboard SATA ports or sSATA ports, as shown in the following figures. Figure 7-7 Figure 7-8...
  • Page 46 7.1.6.2 HDD RAID Mode Settings Set the SATA Mode Option to [RAID], press F10 to save the setting, and the system reboots. When Boot Mode is set to UEFI mode, in the BIOS Setup Advanced interface, there will be the Intel(R) RSTe SATA Controller menu, as shown in the following figure. Figure 7-9 Press Enter, the executable operation and the current HDD information will be displayed, as shown in the following figure.
  • Page 47 BIOS Setup Figure 7-11 Table 7-2 Create RAID Menu Instruction Table Interface Function Description Parameters Please enter a volume name less than 16 characters without containing any special Name characters. Please select the RAID volume level. If no volume has been created at present, there are four volume levels of RAID0 (Stripe), RAID1 (Mirror), RAID10 (RAID0+1) and RAID5 (Parity) for selection.
  • Page 48 Figure 7-12 Figure 7-13 Figure 7-14 When Boot Mode is set to Legacy, a prompt “Press <CTRL-I> to enter Configuration Utility…” will appear on the screen during system booting. Press [Ctrl] and [I] keys at the same time to enter SATA RAID configuration, as shown in the following figure.
  • Page 49 BIOS Setup Figure 7-15 After entering SATA RAID configuration interface, it will display the main menu list, the information (HDD ID, HDD type, HDD capacity, volume member or not) of HDDs connected to SATA controller, and the existed RAID volumes information (including volume ID, name, RAID level, capacity, status, bootable or not).
  • Page 50 Create RAID Volume menu. After entering SATA RAID configuration interface, you could use up and down arrow keys to select this menu, and then press Enter to enter the Create RAID Volume menu, or directly input the number before the menu to enter the Create RAID Volume menu.
  • Page 51 BIOS Setup displayed. Delete RAID Volume menu. After entering Delete RAID Volume menu, press [DEL] to delete the selected RAID volume, and the system will prompt “ALL DATA IN THE VOLUME WILL BE LOST! Are you sure you want to delete “Volume0*”? (Y/N)”. To delete this RAID volume, please enter “Y”, to cancel the deletion, please enter “N”.
  • Page 52 Mask Disk as Spare menu. After entering Mask Disk as Spare menu, system will display the HDDs not in RAID volume. Please use the space key to select the HDDs according to the actual demand, and then press Enter. The system will prompt “Are you sure you want to mask selected disks as Spare? (Y/N)”, enter “Y”...
  • Page 53 BIOS Setup Network Configuration/BMC IPv6 Network Configuration”. Press Enter to view the current configuration of BMC IPv4 and BMC IPv6 network, as shown in the following figures. Figure 7-22 Figure 7-23...
  • Page 54 Figure 7-24 Figure 7-25 7.1.7.2 BMC Network Settings Take BMC Sharelink port as an example to introduce the settings of BMC IPv4 network parameters, as shown in the following table.
  • Page 55 BIOS Setup Table 7-5 BMC Network Configuration Instruction Table Interface Parameters Function Description Default Value Set the way to get BMC network parameters, options include: Get BMC Sharelink /Dedicated Do Nothing Do Nothing Parameters Auto Manual Configure BMC network status parameters. When Get BMC Dedicated Parameters is set to [Manual], this option will be displayed.
  • Page 56 Figure 7-27 Figure 7-28 If the setting succeeds, the system prompts “Set Static BMC Station IP OK!!!” Press Enter to confirm, and the IP will take effect immediately. If the setting fails, the system prompts “Set Static BMC Station IP Fail!!!” If the IP does not change, the system prompts “Static BMC Station IP Not Change!!!”...
  • Page 57 BIOS Setup Figure 7-29 7.1.7.4 Set BMC Dynamic Network Parameters Set the Configuration Address Source option to [DynamiBmcDhcp]. If the setting succeeds, the system will prompt “Set Dynamic BMC IP Address Source Success! Dynamic BMC Network Parameters are Getting Now, Please Wait a Moment!”, as shown in the following figure. Figure 7-30 After pressing Enter to confirm, the following interface will stay for 30s, please wait patiently.

  • Page 58: Bios Parameter Description

    After the dynamic network takes effect, the system will prompt “Get Dynamic BMC Dhcp Success!!”, and the interface will be shown as the following figure. Figure 7-32 Note: Please make sure that the BMC management port is connected to the network when you use the Manual setting options.
  • Page 59 BIOS Setup Figure 7-33 Figure 7-34...
  • Page 60 Table 7-6 Main Interface Instruction Table Interface Parameters Function Description Product Name Product name Serial Number Serial number Customer ID Customer ID BIOS Version BIOS version Build Date Build date BMC Firmware Version BMC Firmware version ME Firmware Version ME Firmware version Access Level Current access level CPU Type...
  • Page 61 BIOS Setup Figure 7-35 Table 7-7 Advanced Interface Instruction Table Interface Parameters Function Description Trusted Computing Trusted computing configuration Super IO Configuration Super I/O chip parameter configuration Serial Port Console Redirection Serial port console redirection settings PCI Subsystem Settings PCI subsystem settings Network Stack Configuration Network stack configuration CSM Configuration...
  • Page 62 Figure 7-36 Table 7-8 Trusted Computing Interface Instruction Table Default Value Interface Parameters Function Description Security device support settings. Options include: Enabled Enabled Disabled Security Device Support BIOS supports TPM TCG version 1.2/2.0. BIOS supports TPM module through TPM software binding, when the verification of software binding fails, BIOS will record the error to SEL.
  • Page 63 BIOS Setup Figure 7-37 Table 7-9 Super IO Configuration Interface Instruction Table Interface Parameters Function Description Serial port 0 configuration, the configuration interface provides this serial Serial Port 0 Configuration port’s on-off control and resource allocation control. Users can manually adjust the IO PORT and IRQ number that COM PORT uses.
  • Page 64 Table 7-10 Serial Port 0 Configuration Interface Instruction Table Interface Parameters Function Description Default Value Serial port 0 on-off settings. Options include: Serial Port Enabled Enabled Disabled Select the optimal setting according to the demand. Options include: Auto Change Settings I0=3F8h;...
  • Page 65 BIOS Setup 7.2.2.3.1 Console Redirection (COM0) When the Console Redirection is set to [Enabled], the Console Redirection Settings menu will be displayed. Figure 7-40 Figure 7-41...
  • Page 66 Table 7-12 Console Redirection Settings Interface Instruction Table Interface Parameters Function Description Default Value Terminal type settings. Options include: VT100 Terminal Type VT100+ ANSI VT-UTF8 ANSI Baud rate settings. Options include: 9600 19200 Bits per second 115200 38400 57600 115200 Serial port data width settings.
  • Page 67 BIOS Setup 7.2.2.3.2 Legacy Console Redirection Settings Legacy Console Redirection Settings interface is used to set the Legacy console redirections. Figure 7-42 Table 7-13 Legacy Console Redirection Settings Interface Instruction Table Interface Parameters Function Description Default Value Select one serial port to display the Legacy Legacy Console Redirection Setting COM0 system and Option ROM information...
  • Page 68 Figure 7-43 Table 7-14 Console Redirection Settings Interface Instruction Table Interface Parameters Function Description Default Value Terminal type settings. Options include: VT100 Terminal Type VT100+ ANSI VT-UTF8 ANSI Baud rate settings. Options include: 9600 19200 Bits per second 115200 38400 57600 115200 Flow control settings.
  • Page 69 BIOS Setup 7.2.2.4 PCI Subsystem Settings PCI Subsystem Settings interface is used to set the options related with PCI subsystem. Figure 7-44 Table 7-15 PCI Subsystem Settings Interface Instruction Table Interface Parameters Function Description Default Value Above 4G memory access control on-off settings. Options include: Above 4G Decoding Enabled...
  • Page 70 Figure 7-45 Table 7-16 Network Stack Configuration Interface Instruction Table Interface Parameters Function Description Default Value Network stack on-off settings. Options include: Enabled Disabled Network Stack Enabled Only this option is enabled, the following options can be displayed and the functions can be set. UEFI Ipv4 PXE support on-off settings.
  • Page 71 BIOS Setup Figure 7-46 Table 7-17 CSM Configuration Interface Instruction Table Interface Function Description Default Value Parameters CSM support on-off settings. Options include: CSM Support Enabled Disabled Disabled A20 line control mode settings. Options include: Upon Request GateA20 Active Always Upon Request A20 is an address line, which controls the system how to access the memory space larger than 1MB.
  • Page 72 Video device Option ROM execution mode settings. Options include: Video OPROM Policy Do not launch UEFI Legacy UEFI Other PCI devices Option ROM execution mode settings. Options include: Other PCI devices Do not launch UEFI Legacy UEFI 7.2.3 Chipset Chipset interface includes the information settings and runtime error logging settings of PCH SATA/sSATA, USB and ME devices.
  • Page 73 BIOS Setup 7.2.3.1 PCH SATA Configuration/PCH sSATA Configuration PCH sSATA Configuration and PCH SATA Configuration interfaces are used to set the options related with the onboard sSATA/SATA ports. Take PCH SATA Configuration menu as an example, as shown in the following figure. Figure 7-48 Figure 7-49...
  • Page 74 Table 7-19 PCH SATA Configuration Interface Instruction Table Interface Parameters Function Description Default Value SATA controller on-off settings. Options include: SATA Controller Enabled Enabled Disabled SATA mode settings. Options include: SATA Mode Options AHCI AHCI RAID SATA Port 0~3 SATA port 0~3 HDD information ---- SATA port on-off settings.
  • Page 75 BIOS Setup Chassis front-up USB connector on-off settings. Options include: USB Front Connector (Up) Enabled Enabled Disabled Chassis front-down USB connector on-off settings. Options USB Front Connector include: Enabled Enabled (Down) Disabled Onboard USB connector on-off settings. Options include: Onboard USB Connector Enabled Enabled Disabled...
  • Page 76 Onboard/Offboard VGA device priority settings. Options include: VGA Priority Offboard Device Onboard Device Offboard Device 7.2.3.4 Server ME Configuration Server ME Configuration interface is used to display and set the options related with server ME configuration. Figure 7-52 Table 7-22 Server ME Configuration Interface Instruction Table Interface Parameters Function Description Default Value...
  • Page 77 BIOS Setup Figure 7-53 Table 7-23 Runtime Error Logging Interface Instruction Table Interface Parameters Function Description Default Value System error log record settings. Options include: System Errors Enabled Enabled Disabled 7.2.4 Processor Processor interface is used to set the options related with the processor and memory. Figure 7-54...
  • Page 78 Table 7-24 Processor Interface Instruction Table Interface Parameters Function Description Processor Configuration Processor configuration Common Configuration Common configuration UPI Configuration UPI configuration Memory Configuration Memory configuration IIO Configuration IIO configuration Advanced Power Management Configuration Advanced power management configuration 7.2.4.1 Processor Configuration Processor Configuration interface is used to set the options related with the processor.
  • Page 79 BIOS Setup Figure 7-56 Table 7-25 Processor Configuration Interface Instruction Table Interface Parameters Function Description Default Value Processor information submenu, the processor’s detailed Processor Information ---- information CPU core settings. Input the number of CPU cores you want to enable. In the Help information, it will display the Active Cores effective values you can set and the maximum number of physical cores according to the current CPU usage.
  • Page 80 Intel virtual machine extensions technology on-off settings. Options include: Enabled Enabled Disabled Safe mode extension on-off settings. Options include: Enabled Disabled Disabled Hardware prefetcher on-off settings. Options include: Enabled Disabled Before CPU processing instructions or data, it will prefetch Hardware Prefetcher Enabled these instructions or data from memory to L2 cache, to shorten the amount of time that reading memory takes,...
  • Page 81 BIOS Setup Figure 7-57 Figure 7-58 7.2.4.2 Common Configuration Common Configuration interface is used to set the common options.
  • Page 82 Figure 7-59 Table 7-26 Common Configuration Interface Instruction Table Interface Parameters Function Description Default Value MMIO high base settings. Options include: MMIO High Base MMIO high granularity size settings. Options include: MMIO High Granularity Size 256G 256G 1024G Numa on-off settings. Options include: Numa Enabled Enabled...
  • Page 83 BIOS Setup Figure 7-60 Table 7-27 UPI Configuration Interface Instruction Table Default Value Interface Parameters Function Description UPI Status UPI status submenu, displaying the current UPI link status ---- Degrade precedence settings. Options include: Topology Precedence Feature Precedence Topology Degrade Precedence When the system settings conflict, set it to Topology Precedence Precedence to reduce Feature;...
  • Page 84 Sub NUMA cluster settings. Options include: Auto: Support 1-cluster or 2-clusters according to IMC interleave. Sub_NUMA Cluster Enabled: Support all SNC clusters (2-clusters) and 1-way IMC Disabled interleave. Disabled: SNC function not supported. XPT Prefetch on-off settings: XPT Prefetch Enabled Disabled Disabled KTI Prefetch on-off settings:...
  • Page 85 BIOS Setup NVMDIMM data scrambling on-off settings. Options Data Scrambling for include: Enabled NVMDIMM Enabled Disabled DDR4 data scrambling on-off settings. Options include: Auto Data Scrambling for DDR4 Enabled Enabled Disabled ADR on-off settings. Options include: Enable ADR Enabled Enabled Disabled Legacy ADR mode on-off settings.
  • Page 86 Figure 7-62 7.2.4.4.2 Memory Map Memory Map interface is used to set some modes of the memory. Figure 7-63...
  • Page 87 BIOS Setup Table 7-29 Memory Map Interface Instruction Table Default Value Interface Parameters Function Description Volatile memory mode settings. Options include: Volatile Memory Mode Auto Auto 1LM memory interleave granularity settings. Options include: 1LM Memory Interleave Granularity Auto 256B Target, 256B Channel 64B Target, 64B Channel ·...
  • Page 88 Figure 7-64 Table 7-30 Memory RAS Configuration Interface Instruction Table Interface Parameters Function Description Default Value Mirror mode settings. Options include: Disabled Mirror Mode Disabled Mirror Mode 1LM Mirror Mode 2LM Mirror TAD0 mode on-off settings. Options include: Mirror TAD0 Enabled Disabled Disabled...
  • Page 89 BIOS Setup ADDDC sparing on-off settings. Options include: ADDDC Sparing Enabled Disabled Disabled NGN Die sparing on-off settings. Options include: Set NGN Die Sparing Enabled Enabled Disabled NGN Die Sparing NGN Die sparing aggressiveness settings, the value range is Aggressiveness 0~255, and 0 means no sparing Die.
  • Page 90 Intel AIC Rtimer/AIC SSD Intel AIC Retimer/AIC SSD settings submenu, AIC Retimer/ ---- Technology (Non-VMD) AIC SSD on-off settings of each PStack of each CPU. PCIe hot plug on-off settings. Options include: PCIe Hot Plug Enabled Enabled Disabled PCIE ASPM support on-off settings. Options include: Disabled Disabled PCI-E ASPM Support (Global)
  • Page 91 BIOS Setup Table 7-32 Advanced Power Management Configuration Interface Instruction Table Interface Parameters Function Description Power/Performance Profile Switch between Power & Performance mode, Custom by default CPU P State Control CPU P state control submenu Hardware PM State Control Hardware PM state control submenu CPU C State Control CPU C state control submenu Package C State Control...
  • Page 92 Turbo mode on-off settings. Options include: Turbo Mode Enabled Enabled Disabled CPU flex ration programmable update function on-off settings. Options include: CPU Flex Ration Override Disabled Enabled Disabled CPU flex ratio settings in non-Turbo mode, the setting CPU Core Flex Ratio range is 0-100.
  • Page 93 BIOS Setup Figure 7-69 Table 7-35 CPU C State Control Interface Instruction Table Interface Parameters Function Description Default Value Monitor/Mwait support on-off settings. Options include: Monitor/Mwait Support Disabled Enabled Disabled Autonomous core C-state on-off settings. Options include: Autonomous Core C-State Disabled Enabled Disabled...
  • Page 94 Figure 7-70 Table 7-36 Package C State Control Interface Instruction Table Interface Parameters Function Description Default Value Package C state settings. Options include: C0/C1 state C2 state C0/C1 state Package C State C6 (Non Retention) state C6 (Retention) state No Limit 7.2.4.6.5 CPU-Advanced PM Tuning CPU-Advanced PM Tuning interface is used to set the options related with the CPU power- saving performance, with an Energy Perf BIAS submenu.
  • Page 95 BIOS Setup Figure 7-71 Table 7-37 Energy Perf BIAS Interface Instruction Table Interface Parameters Function Description Default Value Power performance tuning settings. Options include: BIOS Controls Power Performance Tuning OS Controls EPB BIOS Controls EPB Power performance management settings. Options include: Performance Balanced Performance...
  • Page 96 Figure 7-72 Table 7-38 Server Mgmt Interface Instruction Table Interface Parameters Function Description Default Value BMC Self Test Status BMC self-test status ---- BMC Firmware Version Current motherboard’s BMC firmware version ---- FRB-2 timer on-off settings. Options include: FRB-2 Timer Enabled Enabled Disabled...
  • Page 97 BIOS Setup BMC Network BMC network configuration submenu ---- Configuration BMC User Settings BMC user settings submenu ---- VLAN Configuration VLAN configuration submenu ---- View FRU Information View FRU information submenu ---- 7.2.5.1 BMC Network Configuration BMC Network Configuration interface is used to configure the BMC network through BIOS. Figure 7-73 Table 7-39 BMC Network Configuration Interface Instruction Table Interface Parameters...
  • Page 98 Figure 7-74 Figure 7-75...
  • Page 99 BIOS Setup Table 7-40 BMC IPv4 Network Configuration Interface Instruction Table Interface Parameters Function Description Default Value Set the method to get the BMC sharelink/dedicated parameters. Options include: Get BMC Sharelink/Dedicated Do Nothing Do Nothing Parameters Auto Manual Set BMC network status. Options include: Unspecified Configuration Address Source Static...
  • Page 100 Figure 7-77 Table 7-41 BMC IPv6 Network Configuration Interface Instruction Table Interface Parameters Function Description Default Value Set the method to get the BMC sharelink/dedicated parameters. Options include: Get BMC Sharelink/Dedicated Do Nothing Do Nothing Parameters Auto Manual Set BMC network status. Options include: Unspecified Configuration Address Source Static...
  • Page 101 BIOS Setup 7.2.5.2 BMC User Settings BMC User Settings interface is used to configure BMC users through BIOS. Figure 7-78 Table 7-42 BMC User Settings Interface Instruction Table Interface Parameters Function Description Add User Add user submenu Delete User Delete user submenu Change User Settings Change user settings submenu 7.2.5.2.1 Add User...
  • Page 102 Figure 7-79 Table 7-43 Add User Interface Instruction Table Interface Parameters Function Description Default Value User Name Set user name, supporting up to 16 characters. ---- Set user password. It must contain uppercase and lowercase User Password ---- letters, special characters and numbers, within 8-20 characters. Channel NO Set BMC channel, input 1 or 8.
  • Page 103 BIOS Setup Figure 7-80 Table 7-44 Delete User Interface Instruction Table Interface Parameters Function Description User Name Input the name of user to delete Input the password of user to delete. If the password is correct, it pops up “User User Password Deleted!!!”...
  • Page 104 Table 7-45 Change User Settings Interface Instruction Table Default Value Interface Parameters Function Description ---- User Name Input the name of user to modify Input the password of user to modify. Only both the name and ---- User Password password are correct, the following options can be modified. User privilege on-off settings.
  • Page 105 BIOS Setup Table 7-46 VLAN Configuration Interface Instruction Table Default Value Interface Parameters Function Description BMC sharelink/dedicated VLAN control on-off settings. Disabled Options include: Sharelink/Dedicated VLAN Control Enabled Disabled To enable VLAN, it needs to set the VLAN ID first. BMC sharelink/dedicated VLAN ID settings, the range is Sharelink/Dedicated VLAN ID 2~4094.
  • Page 106 Board Mfg Board manufacturer Board Product Board product name Board Serial Board serial number Board Part Number Board part number Chassis Manufacturer Chassis manufacturer Chassis Type Chassis type Chassis Part Number Chassis part number Chassis Serial Chassis serial number System UUID System UUID 7.2.6 Security Security interface is used to set the password of the administrator and user.
  • Page 107 BIOS Setup 7.2.7 Boot Menu Boot interface is used to set the options related with system boot, including boot mode, boot priority, boot procedure, etc. Figure 7-85 Table 7-49 Boot Configuration Interface Instruction Table Interface Parameters Function Description Default Value Setup prompt timeout settings.

  • Page 108: Firmware Update

    Boot Override following options 7.3 Firmware Update For BIOS update, you could select to update in UEFI Shell or OS. 7.3.1 Update BIOS in UEFI Shell When Inspur Logo appears on the screen during system booting, there is a prompt “Press...
  • Page 109 BIOS Setup <DEL> to SETUP or <TAB> to POST or <F11> to Boot Menu or <F12> to PXE Boot” below. Press F11 key to open the Boot Menu, as shown in the following figure. Enter the item: UEFI: Built-in EFI Shell. Figure 7-87 Enter the disk where the AfuEfi64 package resides, and enter the AfuEfi64 folder.
  • Page 110 Figure 7-89 If there are any changes in ME part, execute the command to update 32M ME+BIOS: AfuEfix64.efi BIOS.bin /b /p /n /x /k /l /me, and the process is as shown in the following figure. Parameter instructions: - /B Program Boot Block - /P Program main bios image - /N Program NVRAM - /X Do not check ROM ID...
  • Page 111 BIOS Setup Figure 7-90 Note: After the update is complete, please power off the machine, confirm that there is no residual electricity on the motherboard, and then power it on. 7.3.2 Update BIOS in Linux There are 32bit and 64bit Linux OS afulnx tools. Taking Linux 64bit OS as an example, use the afulnx_64 tool to enter the directory containing afulnx_64 tool.
  • Page 112 Figure 7-91 If there are any changes in ME part, execute the command to update BIOS and ME simultaneously: ./afulnx_64 BIOS.bin /b /p /n /x /k /l /me, as shown in the following figure. Figure 7-92 Notes: For Linux system, it needs to run the afulnx_64 tool as root. After the update is complete, please power off the machine, and confirm that there is no residual electricity on the motherboard, and then power it on.

  • Page 113: Bmc Settings

    BMC Settings 8 BMC Settings 8.1 Introduction This Specification describes the functional specifications for the Baseboard Management Controller (BMC). It also describes the feature’s detail information. This document is written for software developers, system integrators, testers, server management users. 8.2 Server System Overview BMC is an independent system of host server system.
  • Page 114 8.2.2 Integrated BMC Hardware ASPEED AST2500 is the processor of server management subsystem, based on ARM1176JZF-S 32-bit RISC CPU microcontroller. The following functionality is integrated into the component: Baseboard Management Controller (BMC) with peripherals  Server-class Super I/O (SIO)  Graphics controller ...

  • Page 115: Ipmi2.0

    BMC Settings 8.3 IPMI2.0 8.3.1 Channel ID Assignment for Each Interface Table 8-1 Channel ID Assignment for Each Interface Channel ID Interface Support Sessions Primary IPMB Secondary IPMB Third IPMB Primary LAN Secondary LAN KCS / SMS 8.3.2 System Interface Support LPC interface, and LPC provides hardware path for KCS messaging.
  • Page 116 8.3.5 IPMI Commands Tables below define the IPMI commands supported by the BMC. IPMI SPEC standard command: Table 8-3 IPMI NetFn NetFn Chassis Storage Transport Bridge Value 0x06 0x00 0x04 0x0A 0x0C 0x02 Table 8-4 IPMI Spec Standard Command IPMI Device “Global” Commands NetFn SUPPORT Get Device ID...
  • Page 117 BMC Settings Get System GUID Set System Info Parameters Get System Info Parameters Get Channel Authentication Capabilities Get Session Challenge Activate Session Set Session Privilege Level Close Session Get Session Info Get AuthCode Set Channel Access Get Channel Access Get Channel Info Command Set User Access Command Get User Access Command Set User Name...
  • Page 118 Set Power Cycle Interval Chassis Get System Restart Cause Chassis Set System Boot Options Chassis Get System Boot Options Chassis Get POH Counter Chassis Event Commands Set Event Receiver Get Event Receiver Platform Event (a.k.a. “Event Message”) PEF and Alerting Commands Get PEF Capabilities Arm PEF Postpone Timer Set PEF Configuration Parameters...
  • Page 119 BMC Settings Reserve SDR Repository Storage Get SDR Storage Add SDR Storage Partial Add SDR Storage Delete SDR Storage Clear SDR Repository Storage Get SDR Repository Time Storage Set SDR Repository Time Storage Enter SDR Repository Update Mode Storage Exit SDR Repository Update Mode Storage Run Initialization Agent Storage...
  • Page 120 Set User Callback Options Transport Get User Callback Options Transport Set Serial Routing Mux Transport SOL Activating Transport Set SOL Configuration Parameters Transport Get SOL Configuration Parameters Transport Command Forwarding Commands Forwarded Command Bridge Set Forwarded Commands Bridge Get Forwarded Commands Bridge Enable Forwarded Commands Bridge...

  • Page 121: Management Web Gui

    BMC Settings 8.4 Management Web GUI HTTPS (Port 443) is supported to access Web GUI. HTTP is disabled by default, users can enable it by IPMI OEM CMD. The Management Web GUI provides management interface for users to view the system information, system event and status, and to control the managed server.
  • Page 122 configure SMTP server information in “SMTP” page. Main features supported in Web GUI. Table 8-6 Features Supported in Web GUI Auto Refresh Menus Subdirectory Main content Support System Running State BMC Information Quick Launch Tasks Overview General Information YES Information Active Session FW Version Information Recent System Event Log Information...

  • Page 123: Snmp

    BMC Settings BMC Network Setting BMC DNS Setting BMC Network Network Bonding Network Link Setting Services Supported service or protocol setting BMC time setting SMTP SMTP setting for email alert BMC Settings Alerts SNMP Trap and email alert setting Threshold Threshold setting for sensors Access Control IP/MAC access limit policy...

  • Page 124: Smash-Lite Cli

    objects. It is an Internet Standard protocol for collecting and organizing information about managed devices on IP networks and for modifying that information to change device behavior. In the BMC, the agent can obtain the server information such as network information, user information, temperature/voltage/fan speed and so on through the SNMP service.
  • Page 125 BMC Settings Figure 8-4 Smash Help Ipconfig  Figure 8-5 Ipconfig sensor  Figure 8-6 Sensor  Figure 8-7 Fru...
  • Page 126 chassis  Figure 8-8 Chassis user  Figure 8-9 User  Figure 8-10 MC...
  • Page 127 BMC Settings  Figure 8-11 Fan  Figure 8-12 Psu  Figure 8-13 Id diagnose ...

  • Page 128: System Information And State

    Figure 8-14 Diagnose 8.7 System Information and State Login WEB GUI, go to page “Information-> System Information”, this page displays information and health status of main components of platform, including CPU, Memory, PCIE Device, Network, Hard Disk Backplane, Power Supply Unit, Fan, Temperature, and Voltage.
  • Page 129 BMC Settings Table 8-7 CPU Information Attribute Value CPUx, x is CPU No., starting from 0. Processor Name Product Model Normal State Warning State Processor Status Critical State State unavailable or current power is off The State depends on CPUx_Status sensors. Processor Speed (MHz) Processor Speed Core...
  • Page 130 8.7.3 Device Inventory Go to table “Device Inventory” in System Information page. Figure 8-17 PCIE Information Table 8-9 PCIE Information Attribute Value x, x is PCIE device number, starting from 0. Slot on Board Onboard slot number where device is located. Slot on Riser Riser slot number where the device is located.
  • Page 131 BMC Settings Table 8-10 BMC Adapter Attribute Value x, x denotes the device number. Name eth0 or eth1 MAC Address Mac Address IP Address IP Address Table 8-11 System Adapter Attribute Value x, x denotes the device number. Present Present Absent Location Location...
  • Page 132 Table 8-13 Hard Disk Attribute Value x, x denotes the device number. Present Present Absent Front/Rear Hard disk location, front or rear Hard Disk Backplane Hard Disk Backplane Number Normal State Error Error State Absent Locating Locate Absent or Non Locate Rebuilding Rebuild Absent or Non Locate...
  • Page 133 BMC Settings Table 8-15 Power Supplies Attribute Value PSUx, x denotes the power supply number. Present Present Absent Status Error Status, depends on PMBus Status Word command, 97h. MFR ID Manufacture ID MFR Model Manufacture Model Serial Number Serial Number Rated Power (W) Rated Power FW Version...
  • Page 134 Table 8-16 Fan Information Attribute Value FANx_y, x denotes FAN or FAN group number, y denotes FAN number in group. Present Present Absent Normal State Status Critical State State unavailable or current power is off Speed (rpm) Speed in rpm Duty Ratio (%) Speed in duty Fan Power (Optional)
  • Page 135 BMC Settings Note ： Threshold value N/A means not configured. 8.7.9 Voltage Go to table “Voltage” in System Information page. Figure 8-23 Voltage Information Table 8-18 Voltage Information Attribute Value Sensor Sensor Name Normal State Warning State Status Critical State State unavailable or current power is off Reading (V) Temperature Reading...
  • Page 136 8.7.10 Global Running State Login WEB GUI, go to first page “Overview”, main devices’ running state are displayed. Figure 8-24 Global Running State Table 8-19 System Running State Device State Denotation Power On Current Power Status Power Off UID LED On UID Status UID LED Off CPU Healthy state:...
  • Page 137 BMC Settings PSU Healthy state: Normal State Power Supply Unit Warning State – One or more PSUx_Status warning Critical State – One or more PSUx_Status critical Power Off PSU Redundant state: Normal State Power Redundancy Warning State –PSU_Redundant Sensor warning Critical State –...

  • Page 138: Device State Monitor And Diagnostic

    Chassis Part Number: ** Chassis Serial Number: ** Board Information Area Format Version: * Language: * Manufacture Date Time: weekday month day time year Board Manufacturer: Inspur Board Information Board Product Name: ***** Board Serial Number: ** Board Part Number: **...
  • Page 139 BMC Settings Sensor type. Temperature: BMC monitors temperature of system components like CPU, PCH, DIMM,  PSU and HSBP, and monitors Inlet/Outlet temperatures. Voltage: System P12V, P5V, P3V3, PVNN, PVDDQ, PVCCIO, PVCCIN.  Fan Speed: System fan.  Power Consumption: BMC monitors Total Power, CPU Power, Memory Power, PSU Input ...
  • Page 140 Event Offset:  If sensor event type is generic, please refer to Generic Event/Reading Type Code table in IPMI Specification, Version 2.0. If sensor event type is sensor-specific, please refer to Sensor Type Code tables in IPMI Specification, Version 2.0. Assertion/De-assertion ...

  • Page 141: Logs

    BMC Settings 8.8.5 PSU Table 8-25 PSU Health State Monitored State Level Related Model Present Info SDR/SEL/ Blackbox Power Supply Failure Critical SDR/SEL/ Blackbox Predictive Failure Warning SDR/SEL/ Blackbox Power Supply AC lost Critical SDR/SEL/ Blackbox 8.9 Logs Logs provide the history record of main devices state changes, used for fault diagnostic. 8.9.1 System Event Log BMC provides the ability to record IPMI sensor based event history.
  • Page 142 Figure 8-25 System Event Log Table 8-26 SEL Attributes Event ID Event ID in SEL Time Stamp Event generate time Severity Event error level, include Error, Warning, Information Sensor Name Sensor Name, locate the device Sensor Type Sensor Type defined in IPMI2.0 Description Event details 8.9.2 Audit Log...
  • Page 143 BMC Settings Figure 8-26 BMC Audit log Table 8-27 Audit Log Attributes Event ID Event ID Time Stamp Event generate time Host Name BMC host name Description Event details 8.9.3 Blackbox Log BMC supports blackbox function used to record some details when event occurred. Record each CPU’s MSR, CSR Registers, used for fault diagnostic.

  • Page 144: Event Alerting

    8.9.4 System Serial Log Refer to section “Serial over LAN (SOL) and System Serial Log Recording”. 8.10 Event Alerting BMC supports SNMP Trap and SMTP email alerts. 8.10.1 SNMP Trap Alert BMC supports SNMP Trap. Users open trap receiver and set trap destination IP in BMC Web GUI.
  • Page 145 BMC Settings Step 2 Set event filter, users can select sensor type or sensor name. Figure 8-29 Event Filter Step 3 Set alert type and destination. Firstly enable one of three items. If SNMP selected, user should set destination to his IP, if Email selected, user should set LAN Channel to dedicated or shared network, then set destination to a user configured email.

  • Page 146: Diagnostics

    Step 2 Configure destination email for related user. Figure 8-32 Email Settings Step 3 Set destination in Figure “Alert Policy Configure” like SNMP Trap Alert Step 3. 8.10.3 Syslog Syslog supports on/off, supports log level filtering, supports 4 receiving targets and every target can configure the receiving server address (IPv4 / IPv6 / FQDN), port number, log type, enable status and send test information.
  • Page 147 BMC Settings 8.11.1 BIOS Post Code (Port 80h) BIOS sends Post code to IO port 80h. If there are any errors during power on, the last post code is on port 80h. BMC is able to trace post code via port 80h to figure out the cause of issue happened.

  • Page 148: Bmc Self Recovery

    8.11.3 BMC Watchdog for System Software watchdog can be used for a number of system timeout function by system management or by BIOS. If software watchdog is triggered, the following actions are available. System Reset  System Power Off  System Power Cycle ...

  • Page 149: Led

    BMC Settings timeout is more than 1 minute, BMC will reset. When entering the flash mode, set watchdog time to 20 mins, if timeout BMC will reset  automatically. When flashing image starts, the watchdog will update to 20 mins, if timeout BMC will reset automatically.
  • Page 150 both BMC and system. Maximum bandwidth: Dedicated NIC – 1000M, Shared NIC – 100M.  BMC network interface compatibly supports IPV4 and IPV6, supports automatic access or  IP address manual setting, and MAC address is stored in the EEPROM. Support VLAN.
  • Page 151 BMC Settings Figure 8-36 Network Bonding Network Bonding: Enable/Disable the Network Bonding. If VLAN is enabled, Network Bonding cannot be enabled. Default Interface: Select the default network interface. Auto Configuration: Enable/Disable Auto Configuration. If Auto Configuration is disabled, then interface service can be configured via IPMI command.
  • Page 152 NCSI to anther NIC, user should set in Web GUI. Supported NCSI cards on PURLEY platform, include onboard NIC, PHY card, OCP A/B/C card, Inspur designed and NCSI-supported PCIE NIC. Different projects support one or more NCSI cards.

  • Page 153: Users

    BMC Settings other port when working port link is disconnected. Default NCSI mode is Manual Switch to port0. NCSI Failover setting, as shown in figure “BMC Shared NIC Switch”. NCSI Mode: Select the supported NCSI mode. The available modes are “Auto Failover” and “Manual Switch”.
  • Page 154 It is case-sensitive.  Special characters ‘,’ (comma), ‘.’ (period), ‘:’ (colon), ‘;’ (semicolon), ‘ ‘ (space), ‘/’ (slash),  ‘\\’ (backslash), ‘(‘ (left bracket) ,’)’ (right bracket) and so on are not allowed. Password Authentication Password encryption scheme: 64Bit Blowfish. Password is encrypted to store in BMC ...
  • Page 155 - White space is not allowed. - No more than 64 characters. 8.15.3 SNMP User SNMP user is used to support SNMP Get/Set. Default read community: cmccread and inspur@0531  Default write community: cmccwrite  SNMPV3 supports user authentication, supported authentication algorithm is SHA and MD5;...
  • Page 156 In-band mode means sending IPMI CMD in HOST OS. In this mode, IPMI CMD does  not need to authenticate user and password, because he will get the highest privilege if someone accesses the HOST OS. So if the user forgets password or password expires, this is a way to change password or disable password security rules.
  • Page 157 BMC Settings System Event Log BMC System Audit Log Logs Black Box Log Event Log Setting BMC System Audit Log Setting BMC Self-inspection Result BMC Recovery Fault Diagnosis Capture Screen Host POST Code User Administration Security Dual Image configuration Dual Firmware Update Administrator BIOS FW Update CPLD Update...
  • Page 158 8.15.4.3 User Privilege for Smash-Lite Table 8-33 Sub CMD ipconfig sensor chassis user 　 　 password register diagnose diaglog Note N = No Access Privilege level of Unified User U = User Privilege level of Unified User O = Operator Privilege level of Unified User A = Administrator Privilege level of Unified User R = Root user - sysadmin of BMC OS YES = Support...

  • Page 159: Protocol And Ports

    BMC Settings 8.16 Protocol and Ports BMC supports network connection manager library to configure networking services configuration in run-time. RCMP+, HTTP/HTTPS, KVM, CD-MEDIA, FD-MEDIA, HD-MEDIA, SSH, TELNET and SOLSSH services are supported so far. Users can enable or disable theses services, configure communication port, session timeout value of the service and the maximum number of allowed sessions for the services.

  • Page 160: Time And Ntp

    8.17 Time and NTP BMC supports that system describes instants in time. It’s defined as the number of seconds that have elapsed since 00:00:00 1970/01/01 and the time can be referenced as timestamp for other BMC application. By interface such as WEB UI, users are able to get current system date and time information, or configure date and time, or synchronize date and time through NTP.
  • Page 161 BMC Settings BIOS provides following features to BMC. Sync Host RTC time with BMC by “Set SEL Time Command”.  Provide BMC information and configure BMC in BIOS Setup Menu.  Provide System Inventory information, like CPU and DIMM to BMC. ...
  • Page 162 Page “Information-> BIOS Setup Options” in Web GUI displays BIOS Setup Options. Figure 8-40 BIOS Setup Options 8.18.2 BIOS Boot Options BMC supports BIOS startup options, including timeliness and startup options. BMC must restart within 60 seconds, otherwise the BIOS startup option action will be ...

  • Page 163: Storage

    BMC Settings Figure 8-41 Boot Option 8.19 Storage Server storage subsystem generally consists of RAID and SAS hard disks. BMC physically interacts with the RAID and SAS controllers through I2C to obtain information such as controllers, disks, and arrays, and to set RAID. Table 8-37 Currently Supported RAID and SAS Configuration of RAID Model...
  • Page 164 9440-16i RAID Broadcom 　 Supported 　 3408 IT Broadcom 　 Not Supported 　 3408 iMR RAID Broadcom 　 Supported 　 3508 RAID Broadcom 　 Supported 　 3154-8i RAID Broadcom 　 Not Supported 　 HBA1100 Microsemi 　 Not Supported 　 SmartHBA2100 Microsemi 　...
  • Page 165 BMC Settings Flash Size (MB) Min Strip Size (KB) Max Strip Size (KB) Spin Down Time (Minutes) Rebuild Rate Back Ground Init (BGI) Rate Consistency Check (CC) Rate Reconstruction Rate S.M.A.R.T Polling Cache Flush Interval (s) Spinup Drive Count Spinup Delay Controller BIOS Shield State Supported Maintain PD Fail History...

  • Page 166: Server Control

    8.20 Server Control 8.20.1 Server Location The managed server can be located by means of UID LED. Users can control UID LED by BMC IPMI CMD and UID Button separately.  UID can be turned on/off by UID Button even BMC crashed. ...

  • Page 167: Power Supply And Power Consumption

    BMC Settings Figure 8-44 Virtual Power Button 8.21 Power Supply and Power Consumption 8.21.1 Power Supply Redundancy BMC usually supports PSU Redundancy, which means if one or more PSUs cannot normally output power, server will work normally powered by other power supply. 8.21.2 PSU Active Standby In the case of meeting the normal work, BMC provides a way to manually set the power supply to standby to improve power conversion efficiency.
  • Page 168 Figure 8-45 PSU Active Standby 8.21.3 Power Peak Power peak is used to prevent many servers from being started at the same time when first time A/C power is restored, which would cause heavy power loading. Power peak can be enabled or disabled. Disabled by default. ...
  • Page 169 BMC Settings Figure 8-47 Power Limits 8.21.5 Power Consumption Statistics and History Record BMC provides curve-based inlet temperature and power monitoring statistics. Administrators can gain insight into the actual use of electricity and cooling resources through energy monitoring devices. Users can optimize the server’s energy savings based on historical data.

  • Page 170: Fan Speed Control (Fsc)

    Figure 8-49 Total Power History Record 8.22 Fan Speed Control (FSC) 8.22.1 Fan Speed Control BMC supports Auto Fan Control by default, and the fan module speed is controlled by the algorithm provided by thermal team. Users can enable Manually Fan Control in Web GUI, if enabled, users can select one of four fan speeds predefined for each fan module.

  • Page 171: Firmware Update

    BMC Settings Figure 8-50 Fan Speed Control 8.22.2 Fan Speed Control (FSC) Watchdog MCU or CPLD will monitor BMC Fan control task by receiving BMC watchdog signal. If MCU or CPLD cannot receive watchdog signal in 4 Mins, all Fans will be set to full speed to avoid system overheating.
  • Page 172 8.23.1.2 Dual image Dual image means BMC supporting two images in flash, when active image cannot boot, BMC will try another image to boot. 8.23.1.3 WEB Update BMC firmware update is supported via the Management Web GUI. Support hardware watchdog, please refer to “Hardware watchdog” in section “BMC Self ...
  • Page 173 BMC Settings Figure 8-51 Figure 8-52 BMC Update Step 1 Step 2 Select image file, click Upload button to upload file, BMC will enter flash mode, IPMI service will stop, and then BMC will verify image. Verify: Size should be 32M. Verify image integrity, it will make sure this is BMC image.
  • Page 174 Figure 8-53 BMC Update Step 2 Step 3 Check image version and current image version, then click “Proceed to Update” button to start update. Wait for about 15mins (both images), then flash is complete. Figure 8-54 BMC Update Step 3 8.23.1.4 SOC Flash Update SOCflash tool will directly erase and overwrite flash with new image without Firmware Integrity Checking.
  • Page 175 BMC Settings Intel ME firmware is packaged with BIOS firmware as a single firmware image. Support two upgrade modes: “BIOS+ME” and “BIOS Only”.  Power off the system before performing BIOS firmware update.  After BIOS firmware update, BIOS NVRAM will be cleared, all BIOS configurations will be ...

  • Page 176: Restore Factory Default

    Figure 8-56 BIOS Update Step 2 8.23.3 CPLD FW update BMC uses JTAG to update CPLD. Support Web GUI update. 8.24 Restore Factory Default BMC supports to restore factory default in Web GUI. Go to page “Administration->Restore Factory Defaults” to check and configure. Figure 8-57 Restore Factory Default Note: Update policy “Overwrite”...

  • Page 177: Serial Over Lan (Sol) And System Serial Log Recording

    BMC Settings Table 8-39 Items Preserved configuration Note SEL Log IPMI, including PEF data, SOL data, IPMI user IPMI information, SMTP, DCMI data, etc. Select IPMI option while including this configuration. Select IPMI option while including this configuration. Select IPMI option while including this SMTP SMTP configuration.
  • Page 178 Figure 8-58 SOL Setting in BIOS Figure 8-59 Default Serial Setting...

  • Page 179: Console Redirection(Kvm)

    BMC Settings LPC Bus SupperIO UART1 UART2 Internet UART3 Port COM0 Port Figure 8-60 SOL Schematic 8.25.2 System Serial Log Recording BMC can record system serial information. The logs BIOS or OS sends to the serial port will be recorded to the BMC’s DDR, and keep up to 2M bytes of system serial logs. When more than 2M, log will loop to store, and the old log content will be deleted.
  • Page 180 depend on JAVA, .NET. Go to “Remote Control -> Console Redirection” in WEB GUI, click “Launch KVM HTML5 Viewer” to launch HTML5 KVM. Figure 8-62 Console Redirection Figure 8-63 KVM Screen 8.26.2 Java KVM Support Java KVM, users should download and open JNLP (Java Application), and JRE environment should be ready.
  • Page 181 BMC Settings Figure 8-64 Java KVM 8.26.3 KVM Reconnect Support reconnection after network disconnection, the retry count is 3 by default, and the retry time interval is 10s. Users could change reconnect setting in page “Remote Control -> Configure Remote Session”. Retry count ranges from 1 to 6, time interval ranges from 5 to 30 seconds.
  • Page 182 Figure 8-66 Mouse Mode Settings Table 8-40 KVM Mouse Mode Client OS Host OS Windows 8 Windows 7 Windows Server 2012 Windows Server 2008 R2 RHEL 5.2 Relative Relative Relative Relative RHEL 5.4 Relative Relative Relative Relative RHEL 5.6 Relative Relative Relative Relative...

  • Page 183: Virtual Media

    BMC Settings 8.27 Virtual Media The media redirection will allow users to take various media devices and images that presented on the client side (Local Media Support) or remote (Remote Media Support), and attach them as virtual USB on the server side in which the BMC is resident. The virtual media supports: Simultaneous hard disk, floppy, USB key, CD/DVD, folder redirection.

  • Page 184: Redfish

    Remote Media Support: To enable or disable Remote Media support, check/uncheck the ‘Enable’ check box. Mount CD/DVD: To enable or disable Mount CD/DVD support, check/uncheck the ‘Enable’ check box. Note: You can also select all the media types simultaneously. Server Address for CD/DVD Images: Displays the address of the server where the remote media images are stored.
  • Page 185 BMC Settings system components and the semantics of services and components, and be easy to expand. For servers that provide Redfish, the client can obtain the BMC information by sending HTTP request and specify the operation for the BMC. The client can access the Redfish service through the HTTP client. The following is the use of curl in Linux to send the request to access redfish.
  • Page 186 Note: https://BMC_IP:8080/redfish/v1/SessionService/Sessions/1 is the deleted address. 8.28.4 Steps Get the resources provided by Redfish, Redfish’s root directory visit does not require authorization. Get the accessible resource URL through visiting the Redfish root directory. Request: curl -k -u username:password https://BMC_IP:8080/redfish/v1/ Response: “@Redfish.Copyright”: “Copyright 2014-2016 Distributed Management Task Force, Inc.
  • Page 187 BMC Settings “Systems”: { “@odata.id”: “/redfish/v1/Systems” “Tasks”: { “@odata.id”: “/redfish/v1/TaskService” “UUID”: “92384634-2938-2342-8820-489239905423” Figure 70 Response of Get the Accessible Resource URL Get the URL of the device category based on the acquired resource. Eg: Get the URL for the Chassis category: / redfish / v1 / Chassis: Request: curl -k -u username:password https://BMC_IP:8080/redfish/v1/Chassis Response:...
  • Page 188 “@odata.type”: “#Chassis.v1_2_0.Chassis”, “Id”: “1”, “Name”: “Computer System Chassis”, “ChassisType”: “RackMount”, “AssetTag”: “5280”, “Manufacturer”: “Inspur”, “Model”: “5280”, “SKU”: “8675309”, “SerialNumber”: “5280”, “PartNumber”: “224071-J23”, “PowerState”: “On”, “IndicatorLED”: “Lit”, “Status”: { “State”: “Enabled”, “Health”: “OK” “Thermal”: { “@odata.id”: “/redfish/v1/Chassis/1/Thermal” “Power”: { “@odata.id”: “/redfish/v1/Chassis/1/Power”...

  • Page 189: Appendix

    BMC Settings 8.29 Appendix Table 8-41 BMC Self-Inspection Code Table Self-Inspection code Description 0x55 SFT_CODE_OK 0x56 SFT_CODE_NOT_IMPLEMENTED 0x57 SFT_CODE_DEV_CORRUPTED 0x58 SFT_CODE_FATAL_ERROR 0xff SFT_CODE_RESERVED 0x80 SEL_ERROR 0x40 SDR_ERROR 0x20 FRU_ERROR 0x10 IPMB_ERROR 0x08 SDRR_EMPTY 0x04 INTERNAL_USE 0x02 FW_BOOTBLOCK 0x01 FW_CORRUPTED...

  • Page 190: Common Faults, Diagnosis And Troubleshooting

    If there is a machine and a power module of the same type, you could change the power module to test whether there is a power module fault. d. If the instructions above do not resolve the problem, please contact Inspur customer service.
  • Page 191 KVM to check whether there is output on the monitor. If there is normal output, it indicates the VGA port may be abnormal, please contact Inspur customer service. If above operations could not resolve the problem, please contact Inspur customer service.
  • Page 192 If shutdown is allowed, you could exchange the two power modules to judge whether it is power module fault. If above operations could not resolve the problem, please contact Inspur customer service. HDD status LED is abnormal Description: The server is under normal operation, but the HDD status LED is off or red.
  • Page 193 It needs to improve the server room’s environment, to avoid server over-temperature running because of too much dust. Check whether the server runs under high load. If above operations could not resolve the problem, please contact Inspur customer service. There is alarm sound during startup...

  • Page 194: Software Problems

    Inspur technical hotline can be called for support. USB interface problem Description: Unable to use devices with a USB interface. Suggestions: Make sure the operating system on server supports USB devices.
  • Page 195 Common Faults, Diagnosis and Troubleshooting turn down the virtual memory or allocate the virtual memory to other partitions. If above operations could not resolve the problem, please contact Inspur customer service. Abnormal memory capacity Description: The memory capacity displayed in the OS and the physical memory capacity are inconsistent.

  • Page 196: Battery Replacement

    10 Battery Replacement If the server no longer automatically displays the correct date and time, you may need to replace the battery that provides power to the real-time clock. WARNING: The computer contains an internal lithium manganese dioxide, a vanadium pentoxide, or an alkaline battery pack.

  • Page 197: Regulatory Compliance Notices

    Regulatory Compliance Notices 11 Regulatory Compliance Notices 11.1 Regulatory Compliance Identification Numbers For the purpose of regulatory compliance certifications and identification, this product has been assigned a unique regulatory model number. The regulatory model number can be found on the product nameplate label, along with all required approval markings and information.

  • Page 198: European Union Regulatory Notice

    Compliance with these directives implies conformity to applicable harmonized European standards (European Norms) that are listed in the EU Declaration of Conformity issued by INSPUR for this product or product family and available (in English only) within the product documentation.

  • Page 199: Chinese Notice

    Batteries, battery packs, and accumulators should not be disposed of together with the general household waste. To forward them to recycling or proper disposal, use the public collection system or return them to Inspur, an authorized Inspur Partner, or their agents...

  • Page 200: Battery Caution

    11.7 Battery Caution 11.7.1 Battery use caution When battery is used, avoid: ● High or low extreme temperatures during use, storage and transportation. ● Extremely low air pressure, or low air pressure at high altitude. ● Battery replacement. Use the battery properly. Improper use of the battery such as the following may cause risks of fire, explosion or leakage of flammable liquid or gas.

  • Page 201: Restricted Access Area

    Regulatory Compliance Notices ● If the battery compartment does not close securely, stop using the product and keep it away from children. ● If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. 11.7.4 Avertissements de sécurité...

  • Page 202: Electrostatic Discharge

    Use a portable field service kit with a folding static-dissipating work mat. If you do not have any of the suggested equipment for proper grounding, have an authorized reseller install the part. For more information on static electricity or assistance with product installation, contact Inspur Customer Service.

  • Page 203: Warranty

    Warranty 13 Warranty 13.1 Introduction Inspur warrants that all Inspur-branded hardware products shall provide a period of three (3) year warranty. This document describes Warranty Service, including a detailed description of service-level. The warranty terms and conditions may vary by country, and some services and/or parts may not be available in all countries.

  • Page 204: Warranty Exclusions

    Customers could return defective parts to the designated Inspur site after submitting a service request. Inspur may, at its discretion, repair or replace the defective parts. Repair or replacement parts may be new, used, or equivalent to new in performance and reliability.

  • Page 205: Appendix

    BMC Settings 14 Appendix 14.1 Drive Neodymium Content Reference Seagate drive neodymium content reference range: Table 14-1 Neodymium Content Range Product Series Name ＜ 5g 5g - 25g ＞ 25g Cimarron （ 2T/4T ） √ Cimarron （ 6T/8T ） √ Evans √...
