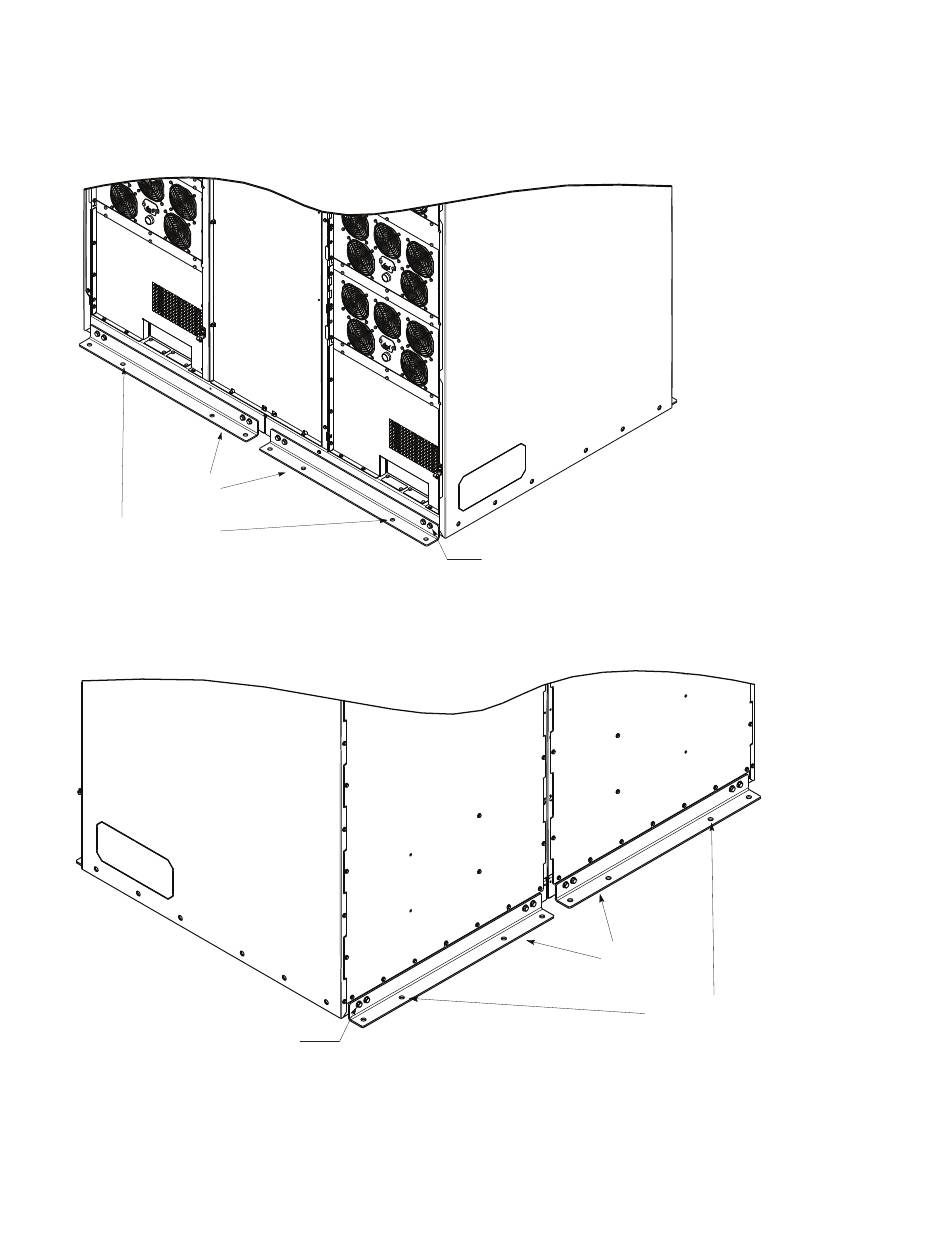

Figure 2. Front Seismic Mounting Bracket Installation
Front Seismic
Brackets (2)
Floor Mounting
Holes (4 places per bracket)
Figure 3. Rear Seismic Mounting Bracket Installation
Bracket Bolts
(4 places per
bracket)
Eaton 93PM UPS (400kW Frame) Seismic Mounting Bracket Installation Instructions
Eaton 93PM UPS (400kW Frame) Seismic Mounting Bracket Install Instructions
Seismic Mounting
Bracket Bolts
(4 places per bracket)
Rear Seismic
Brackets (2)
Rear Mounting
Holes (4 please per
bracket)
P-164000774—Rev 01
3
