Backyard Creations Conley Owner's Manual page 9

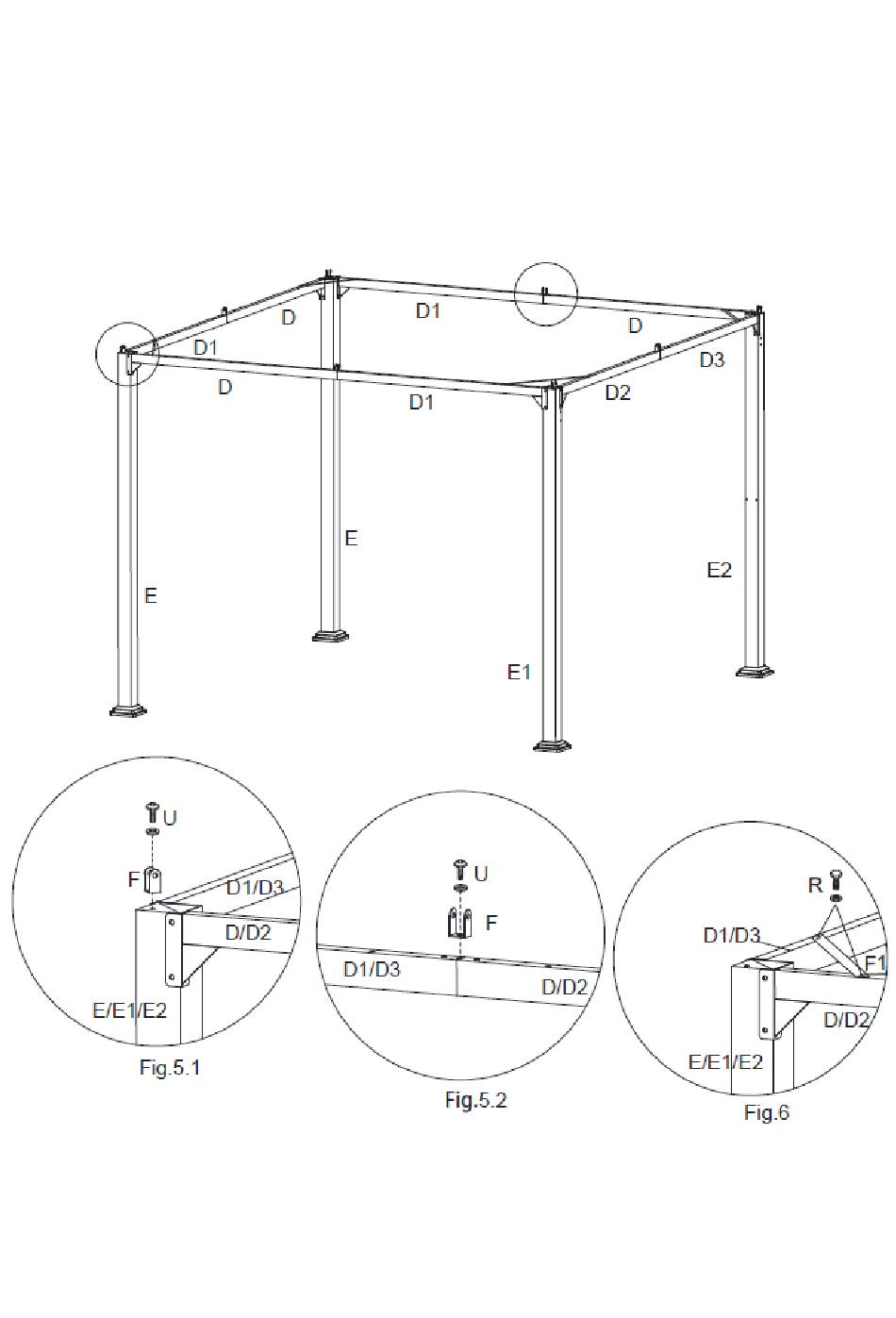

Step 4A: Connect the U-Shaped Connector (F) to the top of the Corner Posts using Bolt and Washer (U).
Repeat for three remaining corner posts. See Figure 5.1.
Step 4B: Connect the U-Shaped Connector (F) to the center of the Cross Beams using Bolt and Washer (U).
Repeat for three remaining Cross Beams. See Figure 5.2.
Step 4C: Connect Cross Beam Corner Plates (F1) across the top of the beams using Bolt and Washer (R).
Repeat for each corner. See Figure 6.
TIGHTEN ALL BOLTS FROM STEP 3 AND STEP 4
9 of 19
