Owner's Manual

Callaway 5-Piece Seating Group

Model Number: CAL-5PC-SG

SKU Number: 272-2194

1 of 12

Need help?

Do you have a question about the CAL-5PC-SG and is the answer not in the manual?

Questions and answers

Summary of Contents for Backyard Creations CAL-5PC-SG

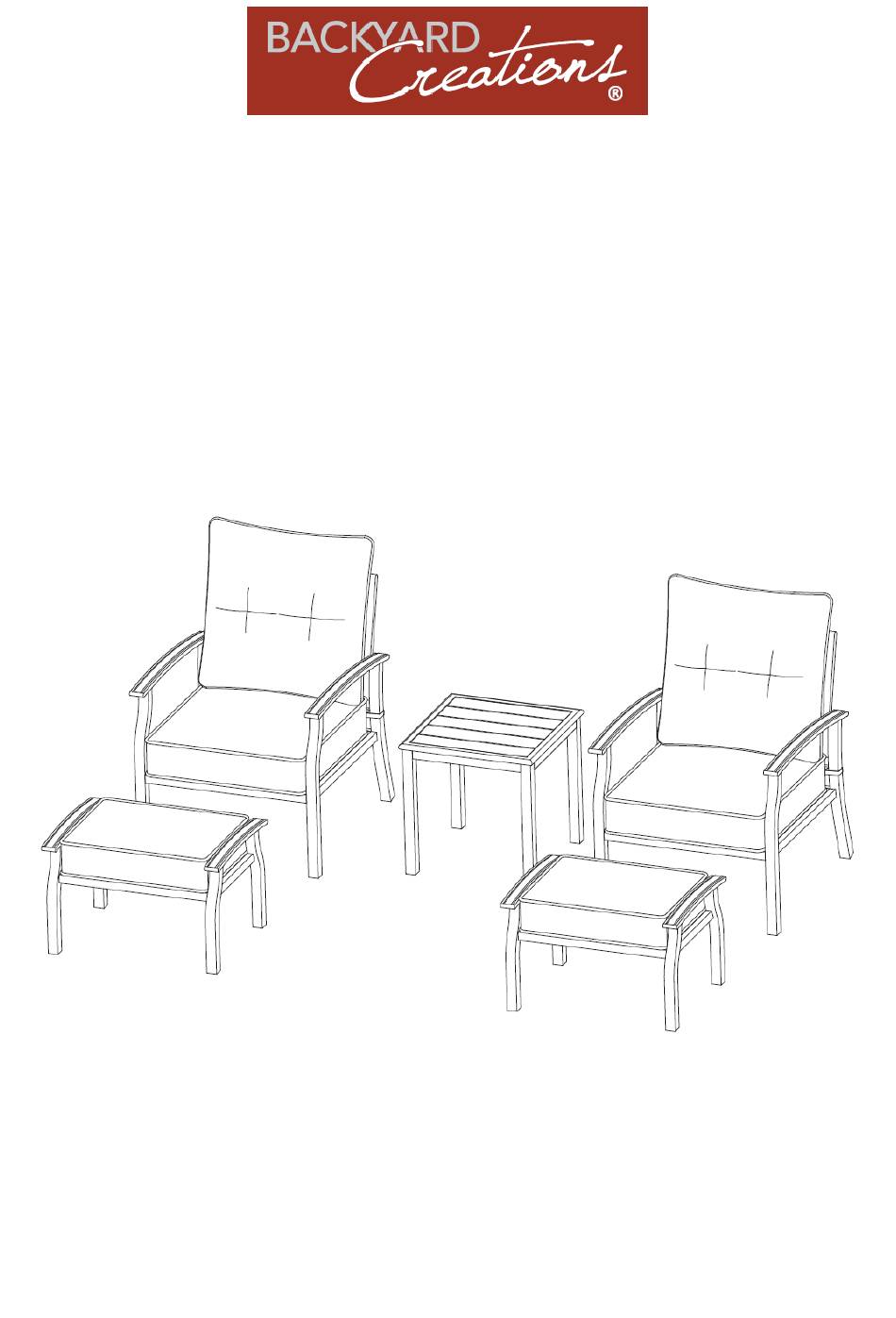

Page 1 Owner’s Manual Callaway 5-Piece Seating Group Model Number: CAL-5PC-SG SKU Number: 272-2194 1 of 12...
Page 2 Parts List – Callaway Chair (2) Letter Illustration Description Qty. Letter Illustration Description Qty. Left Arm M6 Steel Washer Right Arm M6 Bolt Cap Back Allen Wrench Seat Back Cushion M6 x 40mm Bolt Seat Cushion M6 x 45mm Bolt 2 of 12...
Page 3 Assembly Instructions Callaway Chair (2) Note: For video instructions please visit: https://insideout.store/video-assembly-instructions/ Important: Read all the instructions before assembly. Failure to do so may result in faulty assembly and ⚫ potential injury. ⚫ Before assembling the product, remove all protective materials, hardware kit(s), and identify all parts packed in the carton are present.
Page 4 Step 2: Attach the Back (C) to the Right Arm (B) using Bolts (F) and Washers (G). Repeat for Left Arm (A). Tighten All Bolts. Attach Bolt Caps (H) to Bolts (E & F). See Figure 2. Figure 2 4 of 12...
Page 5 Step 3: Place the Seat and Back Cushions (K & J) on the assembled chair. See Figure 3 and Figure 4. Repeat Steps 1 to 3 for the second chair. Figure 3 Figure 4 Note: Please see our video for additional assembly assistance: https://insideout.store/video-assembly-instructions/ 5 of 12...
Page 6 Parts List – Callaway Ottoman (2) Letter Illustration Description Qty. Letter Illustration Description Qty. Ottoman Leg M6 Bolt Cap Seat Allen Wrench M6 x 40mm Bolt Cushion M6 Steel Washer 6 of 12...
Page 7 Assembly Instructions Callaway Ottoman (2) Note: For video instructions please visit: https://insideout.store/video-assembly-instructions/ Important: Read all the instructions before assembly. Failure to do so may result in faulty assembly and ⚫ potential injury. ⚫ Before assembling the product, remove all protective materials, hardware kit(s), and identify all parts packed in the carton are present.
Page 8 Step 2: Turn Ottoman to upright position and place the Cushion (G) on the Ottoman. See Figure 2 and Figure 3. Figure 2 Figure 3 Note: Please see our video for additional assembly assistance: https://insideout.store/video-assembly-instructions/ 8 of 12...
Page 9 Parts List – Callaway Side Table Letter Illustration Description Qty. Letter Illustration Description Qty. Tabletop M6 x 20mm Bolt Table Support M6 Steel Washer Frame Table Leg M6 Bolt Cap M6 x 15mm Bolt Allen Wrench 9 of 12...
Page 10 Assembly Instructions Callaway Side Table Note: For video instructions please visit: https://insideout.store/video-assembly-instructions/ Important: Read all the instructions before assembly. Failure to do so may result in faulty assembly and ⚫ potential injury. ⚫ Before assembling the product, remove all protective materials, hardware kit(s), and identify all parts packed in the carton are present.
Page 11 Step 2: Attach the four Table Legs (C) to the Tabletop (A) using Bolts (D) and Washers (F). Tighten Bolts. Attach Bolt Caps (G). See Figure 2. Figure 2 Step 3: Turn table to upright position. See Figure 3. Figure 3 Note: Please see our video for additional assembly assistance: https://insideout.store/video-assembly-instructions/ 11 of 12...
Page 12: Warranty
Care & Maintenance Maintain your outdoor furniture by using furniture covers or storing out of the elements when not in use. Frame: Clean frames with a mild soap and warm water. Do not use abrasive materials, cleaners or bleach. Rinse with clean water and dry thoroughly. Always clean, drain and dry thoroughly before storing for the winter.
