Step 2:

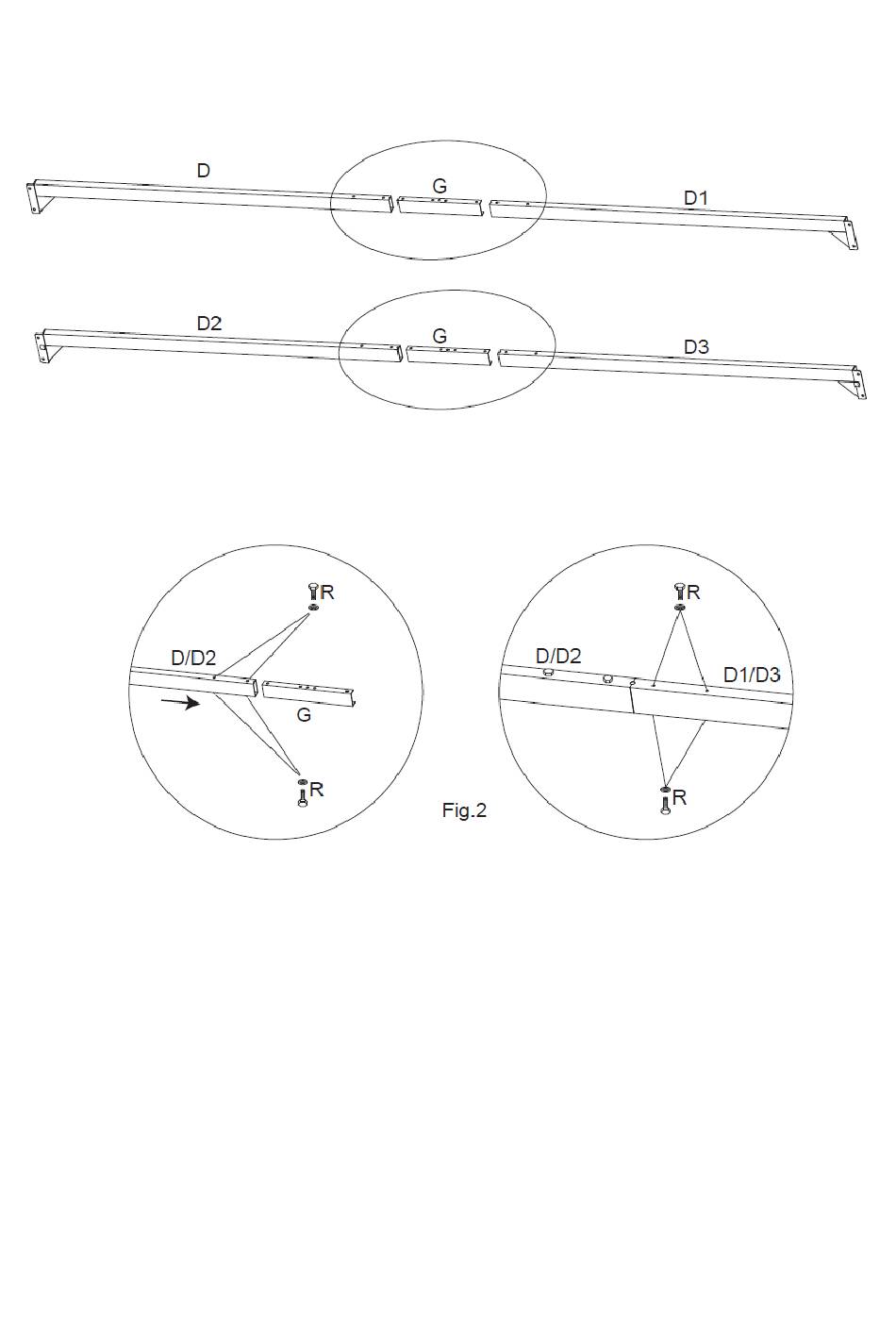

Insert Cross Beam Center Connector Plate (G) into Cross Beam (D/D1) using Bolt and Washer (R).
Repeat for remaining cross beams (D/D1). Insert Cross Beam Center Connector Plate (G) into
Cross Beam (D2/D3) using Bolt and Washer (R). See Figure 2. Tighten Bolts.
7 of 19
