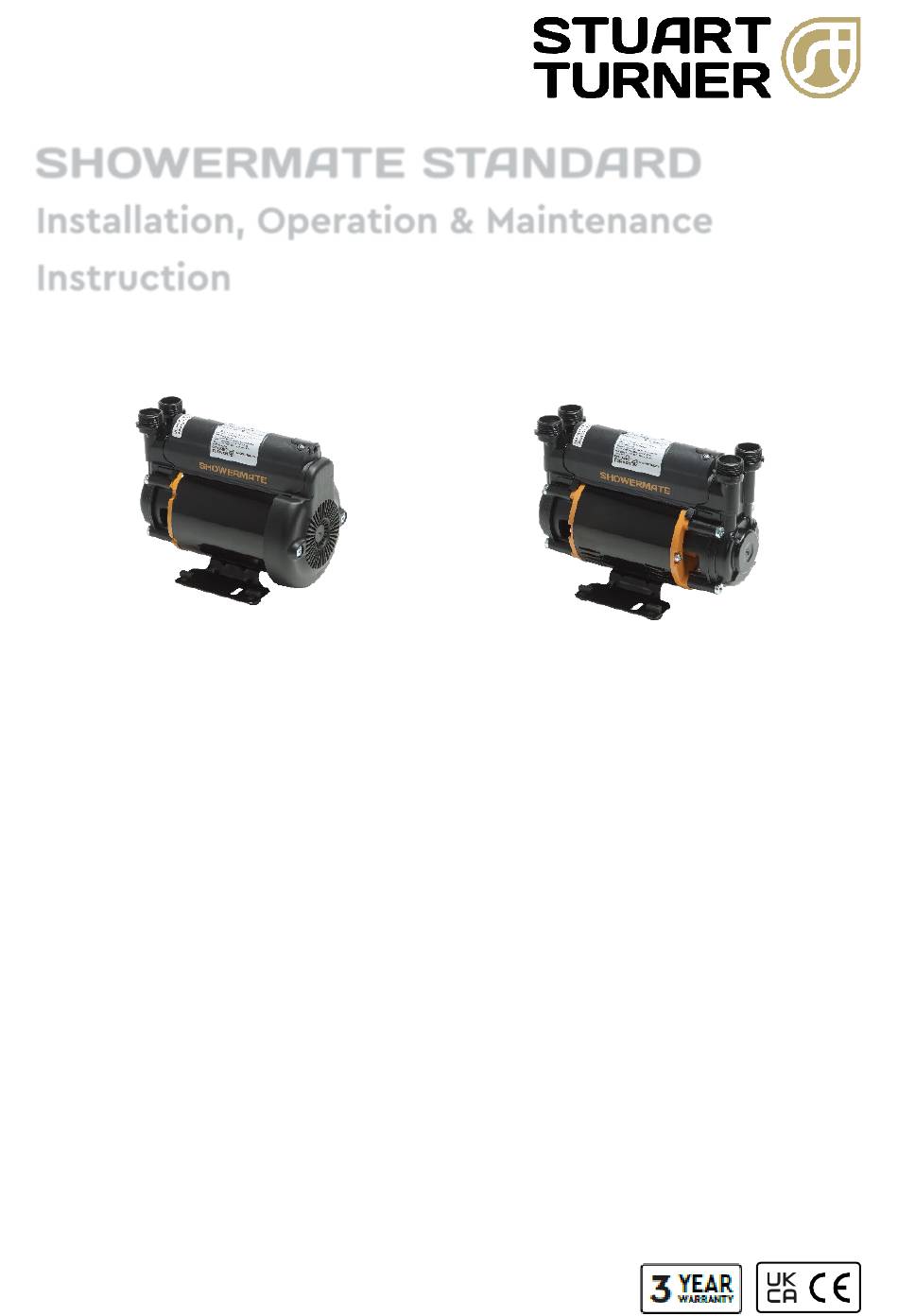

SHOWERMATE STANDARD
Installation, Operation & Maintenance
Instruction
Please leave this instruction booklet with the homeowner as it contains important
warranty, maintenance and safety information.
Read this manual carefully before commencing installation.
This manual covers the following products:
SHOWERMATE S2.0 Bar Single
Pt No. 47340
SHOWERMATE S2.6 Bar Single
Pt No. 47341
Please note images are representative only and may not portray you model.
FOR POSITIVE HEAD APPLICATIONS
SHOWERMATE S1.5 Bar Twin
Pt No. 47342
SHOWERMATE S2.0 Bar Twin
Pt No. 47343
SHOWERMATE S2.6 Bar Twin
Pt No. 47344
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Stuart Turner SHOWERMATE STANDARD
Summary of Contents for Stuart Turner SHOWERMATE STANDARD
- Page 1 SHOWERMATE STANDARD Installation, Operation & Maintenance Instruction Please leave this instruction booklet with the homeowner as it contains important warranty, maintenance and safety information. Read this manual carefully before commencing installation. This manual covers the following products: SHOWERMATE S2.0 Bar Single SHOWERMATE S1.5 Bar Twin...
-
Page 2: Table Of Contents
CONTENTS PRODUCT OVERVIEW ..................3 CHECKLIST ......................5 IMPORTANT FACTS-READ BEFORE COMMENCING PUMP INSTALLATION ..6 LOCATION – GENERAL ..................8 PUMP CONNECTIONS ..................13 ELECTRICAL REGULATIONS ................17 COMMISSIONING ....................19 MAINTENANCE ....................20 TECHNICAL SPECIFICATIONS ................21 TROUBLESHOOTING GUIDE ................24 PRODUCT WARRANTY TERMS &... -
Page 3: Product Overview
Showermate Single pumps are not suitable for boosting a single side of a dual flow mixer valve or tap. Consult Stuart Turner for an alternative pump. 1.3 Storage If this product is not to be installed immediately on receipt, ensure that it is stored in a dry, frost and vibration free location in its original packaging. - Page 4 Do not remove terminal box cover. No user serviceable parts inside terminal box. Any service work involving the removal of the terminal box cover must only be undertaken by Stuart Turner Ltd or by one of their approved repairers, or similarly qualified persons in order to avoid a hazard.
-
Page 5: Checklist
3. CHECKLIST IMPORTANT: With the pump removed from its packaging check for any damage prior to installation. If any damage is found contact Stuart Turner Ltd within 24 hours of receipt. Figure 1 NOTE: This image is for reference only... -
Page 6: Important Facts-Read Before Commencing Pump Installation
4. IMPORTANT FACTS-READ BEFORE COMMENCING PUMP INSTALLATION 4.1 Water Storage Capacity The hot and cold-water storage capacity must be sufficient to meet the flow rates required by the pumped equipment and any other water using fittings and appliances, which may be operated simultaneously. Ensure the pump is primed as described in the priming section before starting, damage to the shaft seal will result otherwise. - Page 7 4.5 Plumbing Installation Regulations The plumbing installation must comply with the current water and building regulations. The plumbing installation must be installed by a qualified person.
-
Page 8: Location - General
Direction of flow: Ensure the water flow is in the direction of the arrow that is marked on the flow switch reed clamp (vertically upwards). • Anti-vibration hoses: Only use the Stuart Turner hose set supplied with the pump. •... - Page 9 5.1 Preferred Pump Location The pump must, for optimum performance, be sited as close as possible to and never more than 4 metres from the HOT WATER cylinder. The pump should always be sited BELOW the HOT WATER take-off from the cylinder. The pump location is also dependent on limitations of the static inlet and outlet heads of the installation.
- Page 10 5.2 Non-Preferred Pump Location If it is necessary to position the pump above the secondary tapping on the hot cylinder it is fed by, the risk of introducing air will be increased. To avoid this risk one of the two following solutions must be adopted: The use of a top entry cylinder flange.
- Page 11 Figure 5 Twin Pump...
- Page 12 5.3 Cold Water Connection The cold-water supply: Must be a DEDICATED AIR FREE supply via a tank connector and must be positioned at a slightly lower level (25 mm minimum) than the feed pipe to the hot water cylinder. Ensure that the pipework size from the cold-water tank is 22mm minimum. Do not connect to the mains.
-
Page 13: Pump Connections
6. PUMP CONNECTIONS • Do not use stainless steel, chrome or nickel-plated pipe with the anti- vibration hose push-in plumbing connections. • Do not introduce solder flux into the joint or surrounding area as connectors will be attacked and will fail. •... - Page 14 6.2 Connecting Hose to Pipework The hoses are fitted with plastic push-in connectors, which must only be connected with the following: 15mm diameter copper pipe to BS EN 1057 R250(half hard) (Table 15 mm plastic pipe to BS 7291 part 1 and part 2 (Table 1), or part 3 (Table 1) plus internal support sleeve*.
- Page 15 Check in the mouth of the fitting that the ‘O’-ring, nylon washer and collet are in position as shown in Figure 9 Figure 9 Push the pipe firmly into the fitting, until pencil mark is level with the top of the collet and the pipe stop resistance is felt.
- Page 16 15mm Compression to G3/4 M G3/4 F x15mm elbow Tap connector G ¾ Flexible hose (supplied) Fibre washer 15mm copper pipe 15mm Compression to G3/4 M 15mm elbow G ¾ Flexible hose (supplied) 15mm copper pipe G3/4 F x15mm elbow Tap connector Fibre washer 15mm to G3/4 M...
-
Page 17: Electrical Regulations
7. ELECTRICAL REGULATIONS • Regulations: The electrical installation must be carried out in accordance with the current national electrical regulations and installed by a qualified person. • Safety: In the interests of electrical safety, a 30mA residual current device (R.C.D. not supplied) should be installed in the supply circuit. This may be part of a consumer unit or a separate unit. - Page 18 There are no user serviceable electrical items within the pump. 7.4 Supply Cord Replacement If the supply cord is damaged, it must be replaced by Stuart Turner Ltd or by one of their approved repairers, or similarly qualified persons in order to avoid a hazard.
-
Page 19: Commissioning
Carefully check pump and pipework for leaks whilst pump running and stationary before leaving the installation unattended. For Further Technical Support: Phone the Stuart Turner Tech Assist team on +44 (0) 800 31 969 80. Our staff are trained to help and advise you over... -
Page 20: Maintenance
9. MAINTENANCE Do not remove the terminal box cover. No user serviceable parts inside. There are no user serviceable parts available for the pump. Turn off water supplies to the pump and release pressure by opening water outlets before attempting maintenance. 9.1 Water Scale As water is heated scale deposits are released in areas of hard water, scale can cause the mechanical seal to stick if left without use for long periods. -
Page 21: Technical Specifications
10. TECHNICAL SPECIFICATIONS 10.1 Single Pump S2.0 Bar Single S2.6 Bar Single PUMP MODEL 47340 47341 Warranty 3 years (Subject to Conditions) General Conformity Certification UKCA/CE Pump Type Peripheral Pump Control Flow Switch Anti-Vibration Feet Features Anti-vibration Hose Dry Run Protection ... - Page 22 10.2 Twin Models S1.5 Bar Twin S2.0 bar Twin S2.6 Bar Twin PUMP MODEL 47342 47343 47344 Warranty 3 years (Subject to Conditions) General Conformity Certification UKCA/CE Pump Type Peripheral Pump Control Flow Switch Anti-Vibration Feet Features Anti-vibration Hose Dry Run Protection ...
- Page 23 Stuart Turner reserves the right to amend the specification in line with its policy of continuous development of its products. Note: For information on other voltages/frequencies which are not shown, consult Tech Assist on +44 (0) 800 31 969 80.
-
Page 24: Troubleshooting Guide
Check fuse (see fuse section) Check circuit breaker is set Check wiring connections Pump jammed If motor ‘buzzes’ switch off power and contact Stuart Turner Integral motor Wait for thermotrip to auto-reset and check that thermotrip duty point and run time is within specification... - Page 25 If pump continues to run, this indicates a or P.C.B. closed circuit in either the flow switch reed or P.C.B. in the terminal box. Contact Stuart Turner Jammed flow Remove outlet hoses and check that flow switch switch sits in lowest position.
-
Page 26: Product Warranty Terms & Conditions
* Important Note This extended promotional warranty is only granted under the following conditions: That the product is registered on the Stuart Turner web site within 12 months of the purchase date. That a valid receipt or other acceptable form of ‘proof of purchase’ such as a copy of the installer’s invoice/receipt is also uploaded during this registration process. - Page 27 EN 62233: 2008 + AC: 2008 RoHS in EEE Regulation (Amendment) 2021 IT IS HEREBY CERTIFIED THAT THE STUART TURNER PUMPS: 47340, 47341, 47342, 47343, 47344 COMPLIES WITH THE ESSENTIAL REQUIREMENTS OF THE ABOVE STATUTORY REGULATION AND EU DIRECTIVES STUART TURNER LTD...
