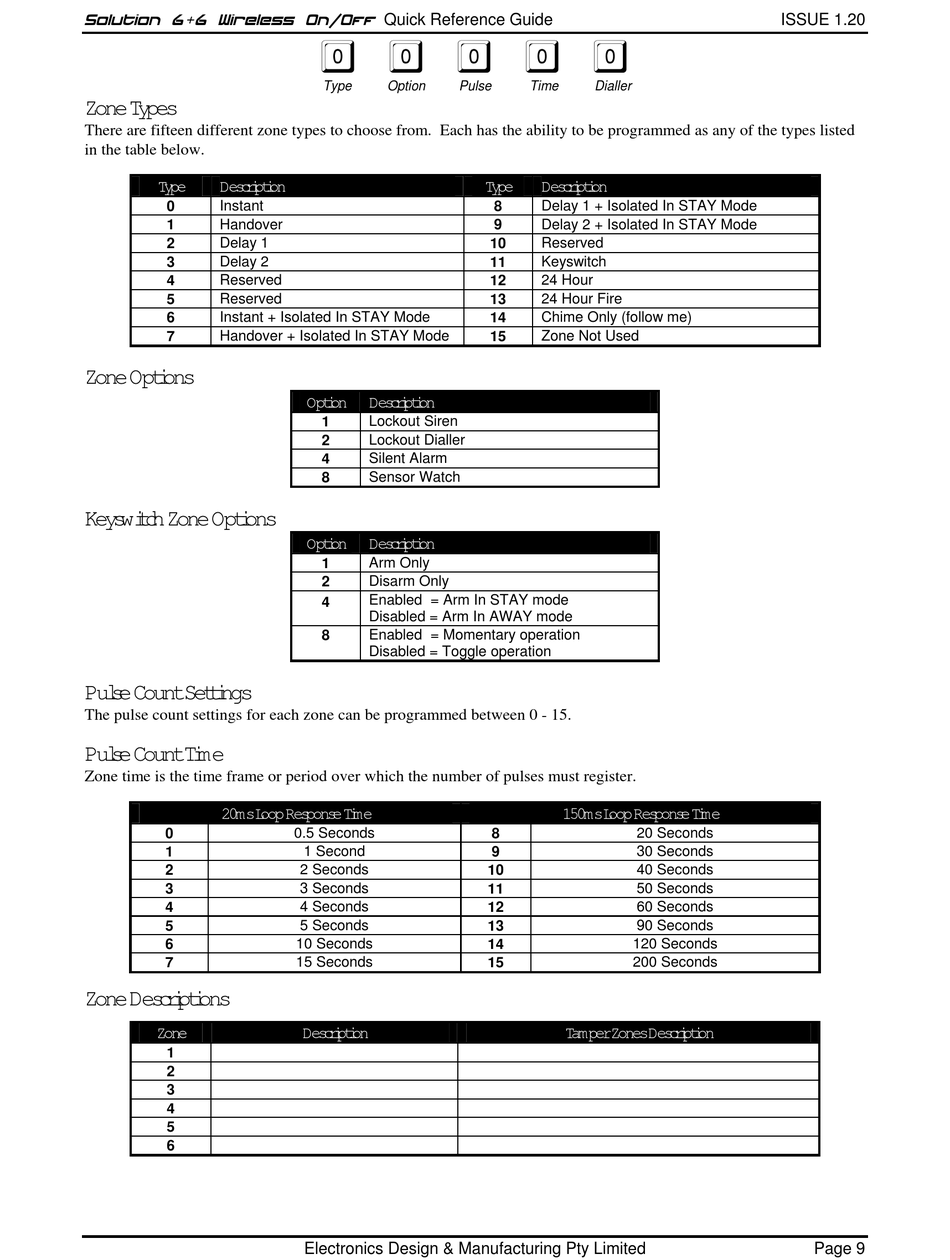

Solution 6+6 Wireless On/Off
Zone T y pes
There are fifteen different zone types to choose from. Each has the ability to be programmed as any of the types listed
in the table below.
T y pe
Des c r i pt i on
Instant
0
1
Handover
Delay 1
2
Delay 2
3
4
Reserved
Reserved
5
6
Instant + Isolated In STAY Mode
Handover + Isolated In STAY Mode
7
Zone Opt i ons
Key s wi t c h Zone Opt i ons
Pul s e Count Set t i ngs
The pulse count settings for each zone can be programmed between 0 - 15.
Pul s e Count T i me
Zone time is the time frame or period over which the number of pulses must register.
20ms L oop Res pons e T i me
0
1
2
3
4
5
6
7
Zone Des c r i pt i ons
Zone
1
2
3
4
5
6
Quick Reference Guide
0 0 0 0 0
Type
Option
Pulse
Opt i on
Des c r i pt i on
Lockout Siren
1
2
Lockout Dialler
Silent Alarm
4
8
Sensor Watch
Opt i on
Des c r i pt i on
1
Arm Only
Disarm Only
2
Enabled = Arm In STAY mode
4
Disabled = Arm In AWAY mode
8
Enabled = Momentary operation
Disabled = Toggle operation
0.5 Seconds
1 Second
2 Seconds
3 Seconds
4 Seconds
5 Seconds
10 Seconds
15 Seconds
Des c r i pt i on
Electronics Design & Manufacturing Pty Limited
Time
Dialler
T y pe
Des c r i pt i on
Delay 1 + Isolated In STAY Mode
8
9
Delay 2 + Isolated In STAY Mode
Reserved
10
Keyswitch
11
12
24 Hour
24 Hour Fire
13
14
Chime Only (follow me)
Zone Not Used
15
150ms L oop Res pons e T i me
20 Seconds
8
9
30 Seconds
40 Seconds
10
11
50 Seconds
60 Seconds
12
13
90 Seconds
120 Seconds
14
15
200 Seconds
T amper Zones Des c r i pt i on
ISSUE 1.20
Page 9
