Quick Reference Guide ISSUE 1.20
Solution 6+6 Wireless On/Off

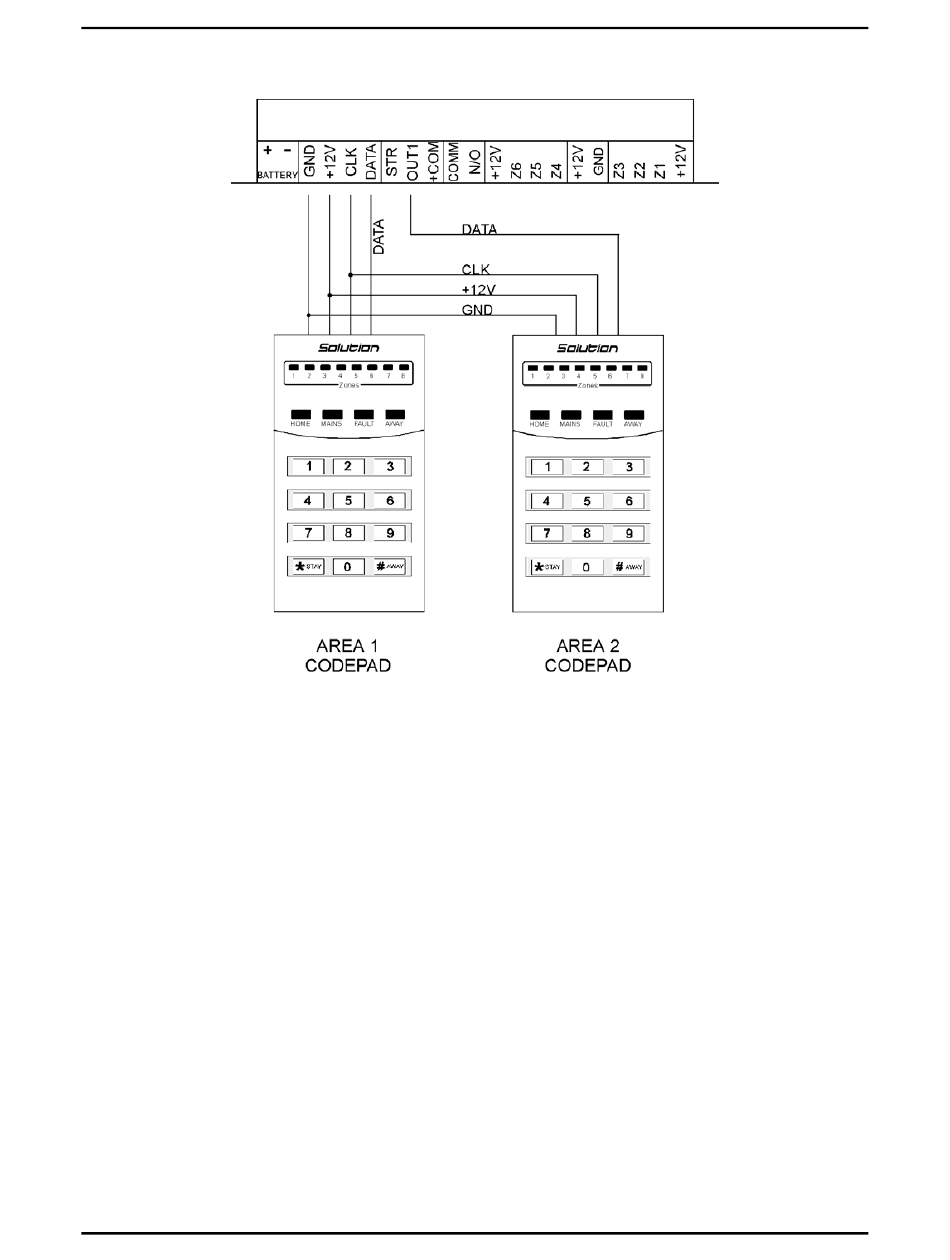

The following DIP Switch settings and locations must be programmed for the two "Area Addressable" codepads to
function correctly.
AREA 1 CODEPAD
DIP Switch 1 on the back of the remote codepad will need to be in the "ON" position. The following location will also
need to be programmed.
[LOCATION 182, Option Bit 1 must be enabled]
AREA 2 CODEPAD - (Output 1)
DIP Switch 2 on the back of the remote codepad will need to be in the "ON" position. The following location will also
need to be programmed.
[LOCATION 140 = 6, 141 = 1]
