Kwik Bay - The Quick Service Lift
Operation and Installation Manual
It is the customer's responsibility to follow the
to assure the lift is installed, commissioned and
operated according to manufacturer's recommendation.
IN ADDITION
Failure to read and understand the information below regarding the CORRECT OPERATION of the Atlas® KwikBay locking system
may result in damage to the lift.

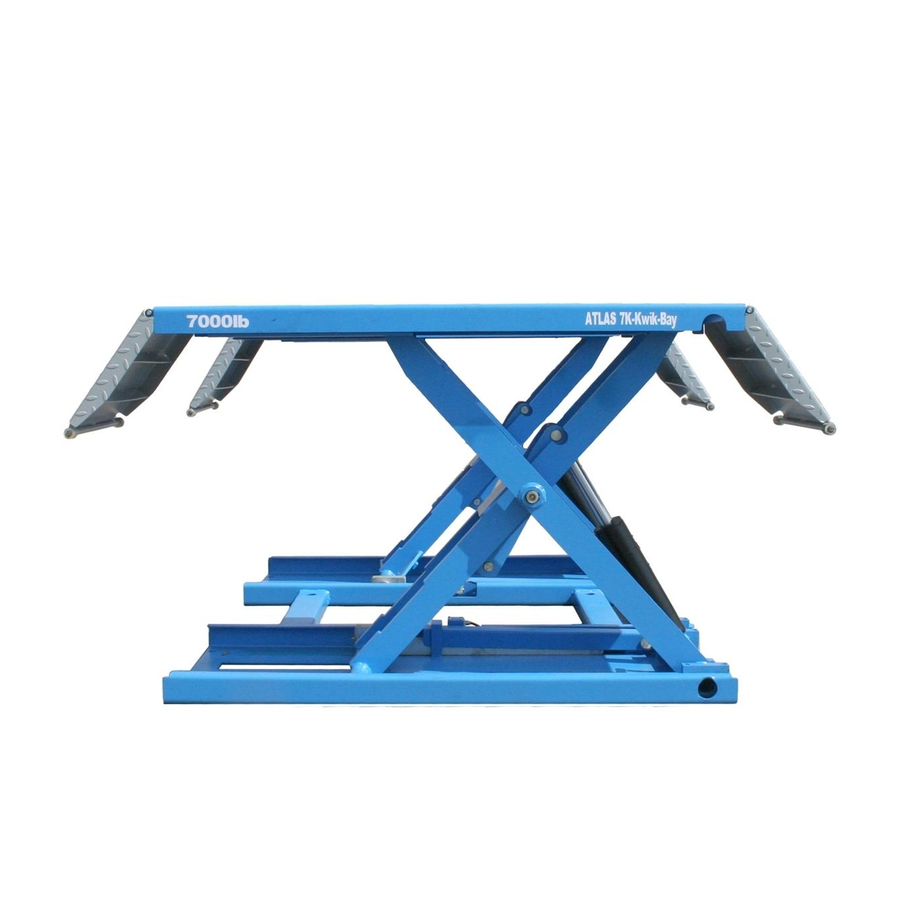

The Atlas® Kwik Bay mid-rise is designed to QUICKLY raise a vehicle to a desired height, perform the necessary service work, and
then lower the vehicle to the ground WITHOUT engaging the pneumatic positive lock bar system. The pneumatic positive locking
system will automatically engage in the unlikely event of a hydraulic failure while the vehicle is in the air. If the vehicle is to be stored
on the raised lift platforms for an
extended period of time
then the pneumatic positive lock system needs to be activated (by the user).
IMPORTANT
When the vehicle service work or vehicle storage time has been completed and the operator wants to the lower the vehicle to the
ground (or to a lower locked position), please follow these important steps and remember:
IT IS IMPERATIVE THAT THE LOCK BARS BE COMPLETELY DISENGAGED WHEN THE VEHICLE IS BEING LOWERED TO
THE GROUND. FAILURE TO FULLY DISENGAGE BOTH LOCK BARS DURING THE LOWERING PROCESS WILL CAUSE
FRAME DAMAGE TO THE LIFT.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atlas Kwik Bay
Summary of Contents for Atlas Kwik Bay
- Page 1 The Atlas® Kwik Bay mid-rise is designed to QUICKLY raise a vehicle to a desired height, perform the necessary service work, and then lower the vehicle to the ground WITHOUT engaging the pneumatic positive lock bar system. The pneumatic positive locking system will automatically engage in the unlikely event of a hydraulic failure while the vehicle is in the air.
- Page 2 • When the consoles DOWN Button is pressed (to lower the vehicle), it is IMPERATIVE for the operator to physically check to make sure that the lift platforms raise up enough to allow BOTH Blue Safety Lock Bars to FULLY disengage from the Silver Safety Lock Bars mounted on the frame.
- Page 3 Silver Safety Lock Bars at the same time and at the same HERE position so that the platforms remain LEVEL. Click to see the Kwik Bay Lift and locking system in action.
