Atlas 14KOF-EXT Installation & Operation Manual
  1. Manuals
  2. Brands
  3. Atlas Manuals
  4. Lifting Systems
  5. 14KOF-EXT
  6. Installation & operation manual

Atlas 14KOF-EXT Installation & Operation Manual

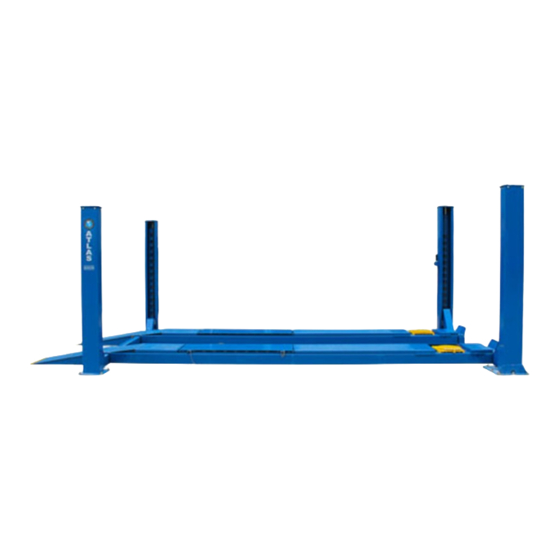

Four-post alignment lift 14,000 lb. capacity
Hide thumbs Also See for 14KOF-EXT:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 14KOF-EXT and is the answer not in the manual?

Questions and answers

Related Manuals for Atlas 14KOF-EXT

Summary of Contents for Atlas 14KOF-EXT

  • Page 2 Revised 9/5/2018 Read this entire manual before operation begins. Record below the following information which is located on the serial number data plate. Serial No. Model No. Date of Installation...

  • Page 3: Table Of Contents

    Maintenance Schedule..26 14KOF-EXT Parts List ..30 Warranty ....51...

  • Page 4: Specifi Cations

    Front: 7 1/2” X 11” Rear: 12 1/2” X 14 1/4” Base of Column Front: 17 3/4” X 21 3/4” Rear: 113 7/8” Clearance Between Columns Front: 110 1/8” Rear: 125 3/4” Outside Column to Outside Column Front: 125 1/8” Specifications 14KOF-EXT...
  • Page 5 Specifications 14KOF-EXT...

  • Page 6: Important Information

    We are not responsible for freight damage. Shortages or damage also must be reported within 7 business days to your local Atlas distributor. The concrete fl oor where the lift will be installed must be a minimum of 4” in thickness.

  • Page 7: Tools Required For Installation

    25 foot Tape Measure Step Ladder 3 Gallons of Hydraulic Oil, SAE-10 or equivalent (AW 32 or AW 46) Installation will take a minimum of 6 people. A forklift or other hoisting device will make the installation easier. Tools Required for Installation 14KOF-EXT...

  • Page 8: Anchoring Tip Sheet

    Do not use an impact wrench to tighten. Tighten the nut, two or three turns on average concrete (28-day cure). If the concrete is very hard, only one or two turns may be required. Anchoring Tip Sheet 14KOF-EXT...

  • Page 9: Installation

    Please read entire instruction before starting to assemble the lift STOP!!!! Open up the parts box and verify all parts are present Installation 14KOF-EXT...
  • Page 10 2. Before assembling the lift, drive a vehicle into the installation position to check for adequate clearance. 3. Note: All four columns need to be level and square from front to back and side to side. Installation 14KOF-EXT...
  • Page 11 2. Turn the runway with the cylinder over. By hand, pull the cylinder shaft out to its maximum length. Before After 3. Place the columns and cross beams near their relative positions. The column with the power unit mounting bracket will be positioned on the driver’s front. Installation 14KOF-EXT...
  • Page 12 Remove C-clip 2. Lay each rear column down facing upward. The rear Columns are 89” in length. 3. Insert the short locking ladders into the rear columns. Set the columns upright into their relative positions. Short Ladder Long Ladder Installation 14KOF-EXT...
  • Page 13 4. Maneuver the white wear blocks into the columns so the slotted ends mesh with the lock ladder. There are 2 wear blocks per side. 5. Using the bolt supplied at the bottom of the column, attach the short lock ladders. Do not tighten the bolt. Installation 14KOF-EXT...
  • Page 14 6. Bolt on the top cap. Pay close attention to the top caps. There is a left side and a right side. Cable Holes Lock Ladder Holes 7. Insert the top of the short lock ladder through the top cap. Bolt down the top cap until ½ inch of thread is exposed at the top. Installation 14KOF-EXT...
  • Page 15 1. Remove the pins on both ends of the front cross beams. The pins will be reinserted after the cables are routed. The pins hold the cables up in the pulleys so they do not slip off. Remove C-clip Installation 14KOF-EXT...
  • Page 16 4. Pick up the cross beams and slide them into the columns. Make sure the cross beams are pushed to the bottom of the columns. It helps to have 2 people for this procedure. Installation 14KOF-EXT...
  • Page 17 3. Route each equalizing cable into their positions. The longest cable is the Passenger front (421.4”). The 2nd long cable is the driver’s front (359.3”). The 3rd long cable is the passenger rear (218.2”). Shortest cable is the driver’s rear (156.1”). Installation 14KOF-EXT...
  • Page 18 Rear cross beam. pulley. Front cross beams. 5. Install the runways. Do not tighten the bolts. Just make them snug. This will allow for movement when plumbing and squaring the lift. Installation 14KOF-EXT...
  • Page 19 (4 pulley stack). 2. Cable Identifi cation: Cable 1-Driver’s Front; Cable 2-Driver’s Rear; Cable 3-Passenger Rear; Cable 4- Passenger Front 3. Follow picture diagrams below for cable positions. Installation 14KOF-EXT...
  • Page 20 Cable Sheave Routing Cylinder Cable Support Installation 14KOF-EXT...
  • Page 21 (long) fi tting Hydraulic (short) fi tting STEP 10: {Pneumatic (Air) Component Installation} 1. With the hardware provided, install the air lock control valve and the regulator/moister trap. Connect pneumatic lines (provided). See photos below for pneumatic line installation. Installation 14KOF-EXT...
  • Page 22 Main air supply Air out to pneumatic lock in. ¼” threaded control valve. air receptacle. Air in from regulator Air out to pneumatic safety locks Installation 14KOF-EXT...
  • Page 23 2. Follow the diagram below for 220 volt motor wiring. Make certain that the wires are installed in the proper legs of the AC contactor for normal operation. “UP” button A1 and 3L2 Install wires from electrical supply in these 2 terminals. 3L2 and 5L3 Installation 14KOF-EXT...
  • Page 24 Do not over heat or toggle the motor 4. Listen for locks to click at the same time while raising the lift. 5. If locks do not click at the same time (synchronize), repeat the procedures on STEP 11: {Runway Leveling}. Installation 14KOF-EXT...

  • Page 25: Operation Instructions

    Push the handle on the lowering valve with the other hand. The lift will lower automatically. 3. Drive away the vehicle when the lift is lowered to the lowest position Operation Instructions 14KOF-EXT...

  • Page 26: Maintenance Schedule

    Let concrete cure before installing lifts and anchors. 4. Columns: Look for corrosion, giving special attention to the area at the base of the column. Check severely corroded areas by pecking with an awl or welder’s Maintenance Schedule 14KOF-EXT...
  • Page 27 A thorough inspection of the lifting system must be performed quarterly by qualifi ed lift service personnel; more frequently (monthly) under extreme service conditions such as outside installations or high usage (10 or more cycles per day, etc.). Maintenance Schedule 14KOF-EXT...
  • Page 28 (shaft) should be replaced. c. Check sheaves and replace if cracks are found. d. Check for ease of rotation. If sheaves do not turn freely, the sheave and sheave pin should be removed, inspected, lubricated, and reinstalled or replaced. Maintenance Schedule 14KOF-EXT...
  • Page 29 9. Inspect for worn or missing parts: Replace worn or damaged parts as required. 10. Observe both locking latches and slack cable devices during lift operation to ensure that all latches line up with slots in latch bar located in all four columns. Maintenance Schedule 14KOF-EXT...

  • Page 30: 14Kof-Ext Parts List

    14KOF-EXT Parts List ITEM DESCRIPTION REMARK Beam weldment(master, open side) Beam weldment(slave, open side) Beam weldment(close side) Platform weldment(slave side) Platform weldment(master side) Ramp weldment Baffl e sliding plate weldment Small ramp weldment Surface mount plate 610*500 Frame of sliding plate...
  • Page 31 Limited wheel pin Limited wheel Flat washer φ8 Spring washer φ8 Pulley shaft Hexagon nipples M6*30 Air cylinder for latch quickly fi tting for air cylinder Gasket "V" air fi tting Nut M6 Pulley of the beam 14KOF-EXT Parts List 14KOF-EXT...
  • Page 32 Column(slave, open side) Column(master, open side) Cotter pin Big nut of cylinder Lock block of cable Pull block for raising Nylon sliding block of cylinder Screw M6*15 Column weldment(slave, close side) Cover plate for close, left column 14KOF-EXT Parts List 14KOF-EXT...
  • Page 33 9/16 hydraulic hose 9/16-2020 Explosion trap Copper backing 2G 3/8 Pipe fi tting Cylinder support Hexagon nipples M12*30 Nut M18 Flat washer φ18 Ladder for close side column Flat washer φ20 Cable L=5985 Cable L=4405 Cable L=11930 14KOF-EXT Parts List 14KOF-EXT...
  • Page 34 Air hose φ8 PU8*5 Air hose φ8 PU8*5 Air hose φ8 YPU8 Air hose φ8 PU8*5 Air hose φ8 PU8*5 Air hose φ8 PU8*5 Air hose φ8 YPE8 Air hose φ8 PU8*5 Ladder for open side column 14KOF-EXT Parts List 14KOF-EXT...
  • Page 35 14KOF-EXT Parts List 14KOF-EXT...
  • Page 36 14KOF-EXT Parts List 14KOF-EXT...
  • Page 37 14KOF-EXT Parts List 14KOF-EXT...
  • Page 38 14KOF-EXT Parts List 14KOF-EXT...
  • Page 39 14KOF-EXT Parts List 14KOF-EXT...
  • Page 40 14KOF-EXT Parts List 14KOF-EXT...
  • Page 41 14KOF-EXT Parts List 14KOF-EXT...
  • Page 42 14KOF-EXT Parts List 14KOF-EXT...
  • Page 43 14KOF-EXT Parts List 14KOF-EXT...
  • Page 44 14KOF-EXT Parts List 14KOF-EXT...
  • Page 45 14KOF-EXT Parts List 14KOF-EXT...
  • Page 46 14KOF-EXT Parts List 14KOF-EXT...
  • Page 47 14KOF-EXT Parts List 14KOF-EXT...
  • Page 48 14KOF-EXT Parts List 14KOF-EXT...
  • Page 49 14KOF-EXT Parts List 14KOF-EXT...
  • Page 50 14KOF-EXT Parts List 14KOF-EXT...

  • Page 51: Warranty

    Prices do not include any local, state or federal taxes. RETURNS: Products may not be returned without prior written approval from the Manufacturer. DUE TO THE COMPETITIVENESS OF THE SELLING PRICE OF THESE LIFTS, THIS WARRANTY POLICY WILL BE STRICTLY ADMINISTERED AND ADHERED TO. Warranty 14KOF-EXT...
