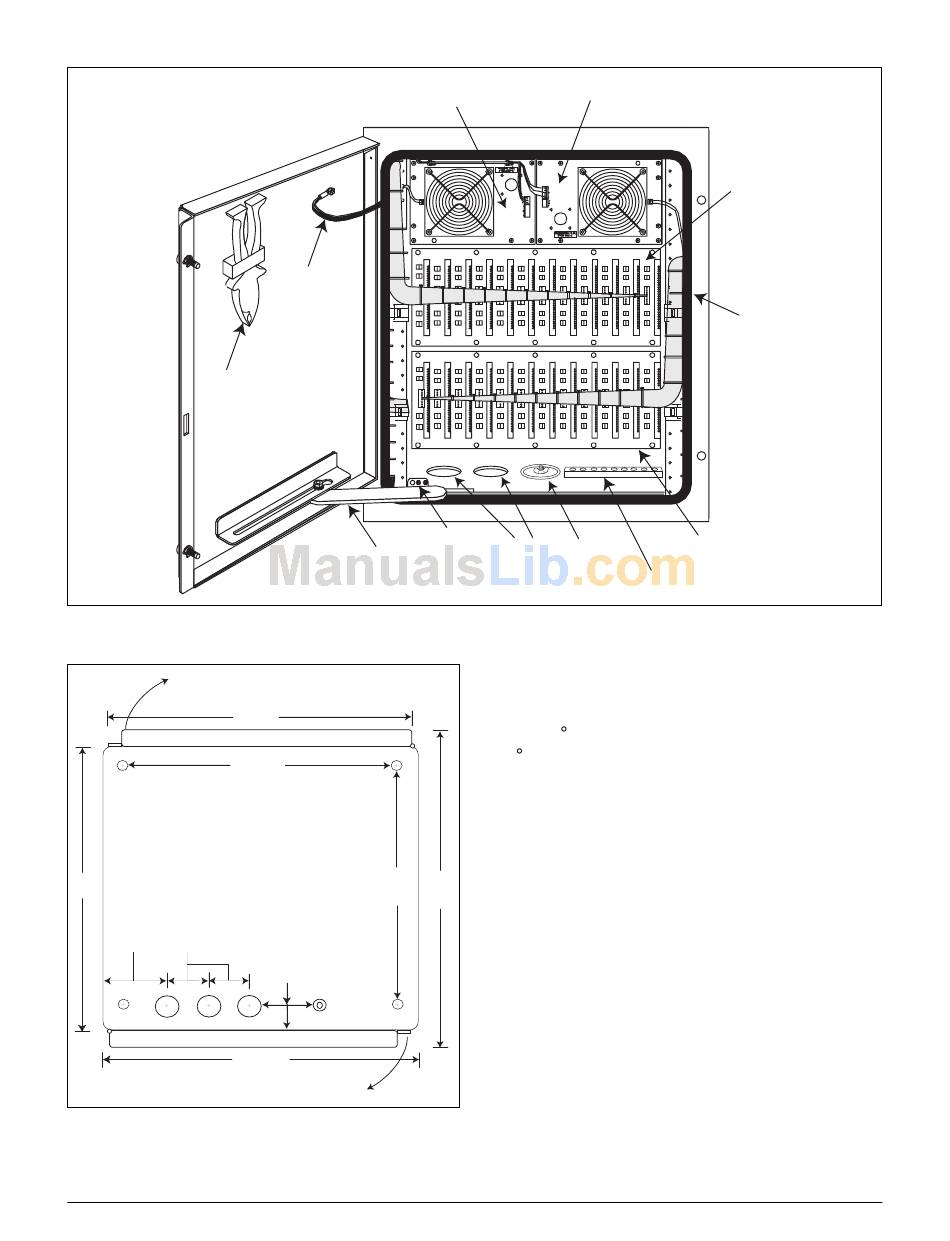

Figure 3. Top View Cutaway With Installation Measurements; Figure 2. Cabinet Assembly, Rear View - ADTRAN T200 H2TU-R Installation And Maintenance Manual

Gas Tube
Extractor
Pliers
OPEN
Front door
20 7/16"
View is looking down with top cut away.
Mounting bolt hole center lines are 1 5/8" in from each edge.
Ground stud is 1 5/8" from rear edge.
Measurements shown are center to center (C/C).
Door width includes locking flange.
Cable penetrations are 1 7/8" in diameter.
Cabinet is 27" high not including cable stubs.
Pad mount brackets are 18" high.
17"
Dimensions are tape rule derived and measured from
outside the cabinet.
5 3/4" cable dimensions +/- 1/8"
3 1/4"
spare
A B
Rear door
23 5/8"
overall
Figure 3. Top View Cutaway With Installation
Measurements
61150090L1-5A
Pimary
Fan Board
to Cable A
Door
Ground
Braid
Rear Door
Rear Door
Retainer

Figure 2. Cabinet Assembly, Rear View

23"
C/C
13 3/4"
overall
C/C
2 1/2" C/L
Ground
Lug
OPEN
Section 61150090L1-5A, Issue 1
Secondary
Fan Board
to Cable A
A, B, and Spare
Switch
Cable Penetrations
Fan Operation and Indication
Two thermostatically controlled line powered cooling
fans limit heat buildup. The primary fan energizes at
about 110 F. The secondary fan energizes at about
150 F.
Primary and secondary fan board operation is
monitored by the FPU. The following conditions
cause an alarm at the FPU:
• Any fan or fan board not receiving power.
20"
• Secondary fan turning On.
• Open cabinet door.
The single FPU at the CO has a separate power supply
for each fan board. The FPU fits into one slot of the
E220 HTU-C shelf (for HDSL applications).
The FPU is purchased separately. Information on fan
board operation and testing is in Section 3. For
additional details on the FPU refer to I&M Practice:
61150091L1-5. The FPU Practice should be on-hand
at the CO for reference during cabinet testing.
Surge Arrestor
Board for top Shelf
Door Gasket
Surge Arrestor Board
for bottom Shelf
( )
Ground Connecting lug on
cabinet bottom
Buss
