1. GENERAL

The ADTRAN T200 Encapsulated Low Voltage HRE,
P/N 1246041L3, is used to extend the effective range
of an ADTRAN HDSL-based T1 circuit. Figure 1 is
an illustration of the HRE. HRE equipment features
include:
• Up to 12 kft of 24-gauge wire range in each direction
• 2B1Q line coding
• Lightning protection
• In-band loopback control
• Type 400 mechanics
• Enhanced provisioning, performance monitoring, and
diagnostics
The ADTRAN T400 Encapsulated Low Voltage HRE
can effectively double the deployment range of
standard HDSL and provide carrier service area
(CSA)-compliant loops on both side of the HRE.
Using a centrally-located unit extends the digital
subscriber loop serving range up to 24 kft over
24-AWG twisted pair wire.
61246041L3-5A
Installation and Maintenance
61246041L3-5, Issue 1
T
rademarks: Any brand names and product names included in this document are
trademarks, registered trademarks, or trade names of their respective holders.
CLEI Code # T1R6DJVD_ _
HRE ENCAPSULATED
HDSL T1 RANGE EXTENDER
1246041L3
GREEN / WHITE
HDSL LOOP 1 - NETWORK
ORANGE / WHITE
HDSL LOOP 2 - NETWORK
BLUE / RED
HDSL LOOP 1 - CUSTOMER
BLUE / WHITE
HDSL LOOP 2 - CUSTOMER
BROWN / WHITE
NO CONNECTIONS
SLATE / WHITE

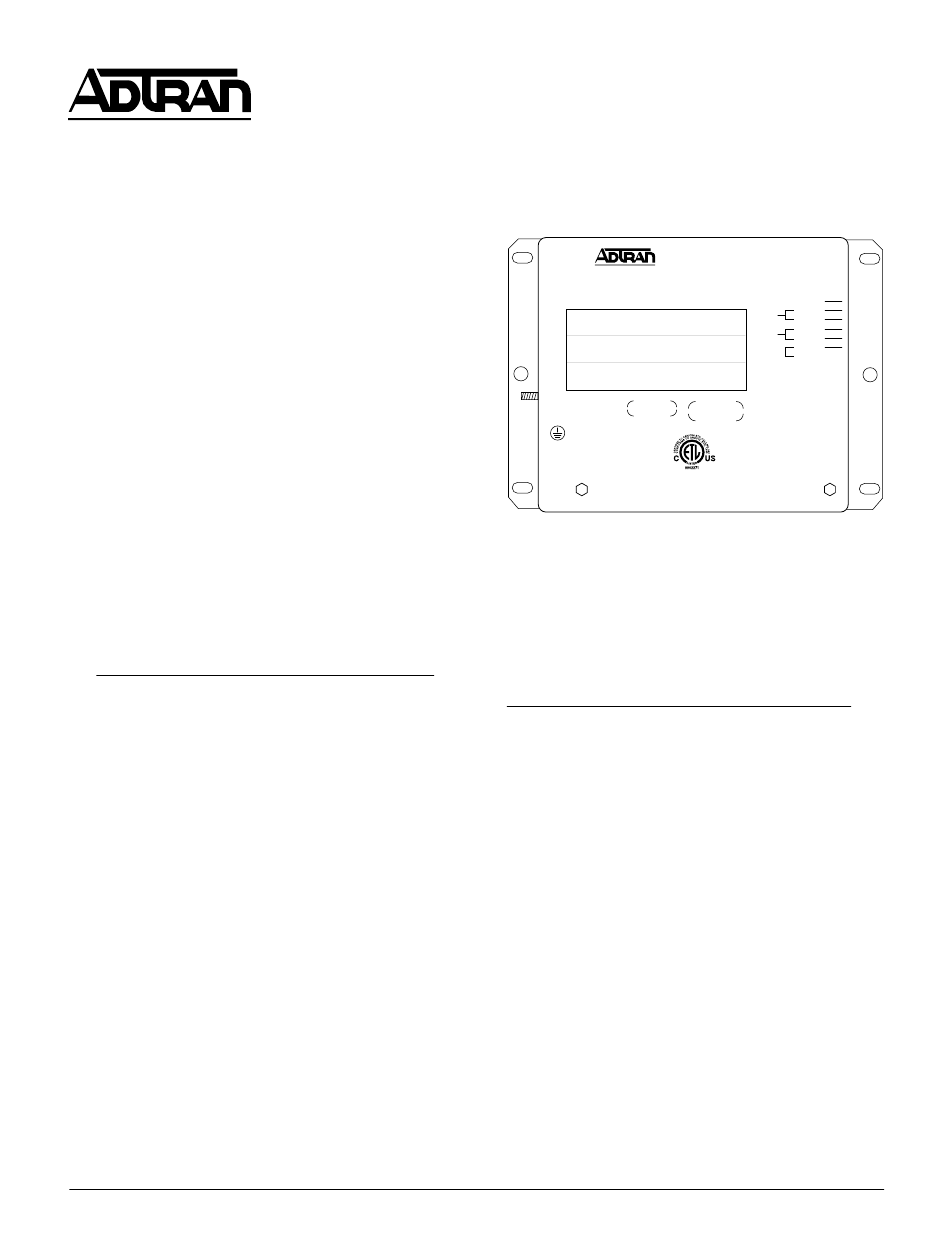

Figure 1. ADTRAN T200 HRE

An HRE is used in conjunction with any span
powering T1 HDSL transceiver unit for the central
office (HTU-C) and low voltage HDSL transceiver
unit for the remote end (HTU-R). Compatible
ADTRAN HDSL transceiver units are as follows:
Part Number
Description
1242002LX .......... 220/E220 HTU-C
1242016LX .......... 3192 HTU-C
1242023LX .......... DDM Plus HTU-C
1244001LX .......... Low Voltage 220/E220 HTU-C
1244002LX .......... Litespan HTU-C
1244021LX .......... Low Voltage T200 HTU-R CP
1244022LX .......... Low Voltage HTU-R SA
1245001LX .......... 5th Generation 220/E220 HTU-C
1245002LX .......... 5th Generation Litespan AHTIU
1245003LX .......... 5th Generation DDM Plus HTU-C
1245004LX .......... 5th Generation 3192 HTU-C
1245021LX .......... 5th Generation T200 HTU-R CP
1245022LX .......... 5th Generation T200 HTU-R SA
1245024LX .......... 5th Generation T400 HTU-R
1245026LX .......... 5th Generation T200 HTU-R CI
1246001LX .......... 6th Generation 220/E220 HTU-C
1246003LX .......... 6th Generation DDM Plus HTU-C
1246004LX .......... 6th Generation 3192 HTU-C
1246026LX .......... 6th Generation T200 HTU-R CI
Section 61246041L3-5A
Issue 1, November 2000
POWER
NET

LOOP 2

LOOP 2
LPBK
GREEN=REM
1
