1. GENERAL

This practice provides installation and maintenance
procedures for the ADTRAN Low Voltage Total
®
Reach
ISDN - Central Office circuit card (TRI-C).

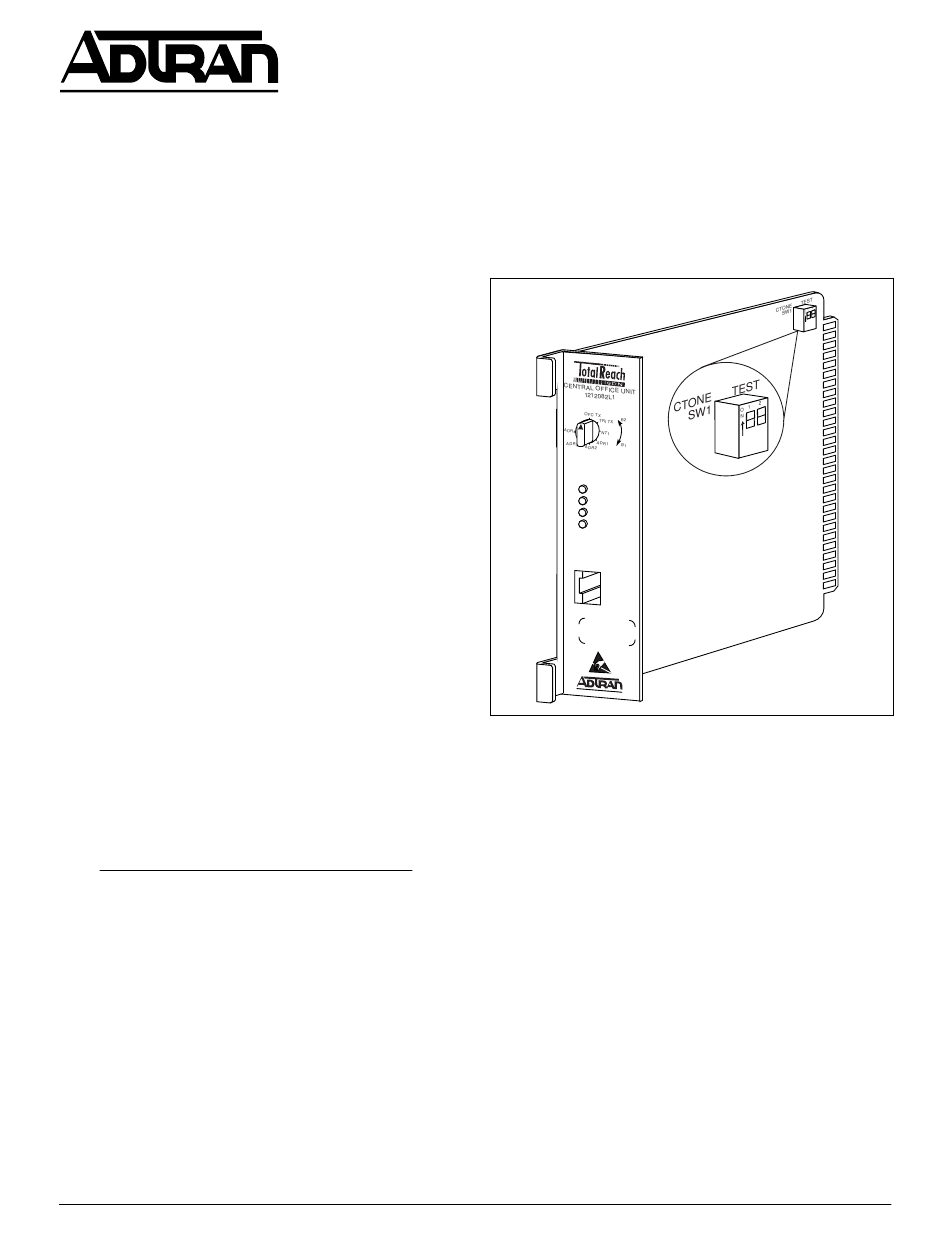

Figure 1 is an illustration of the T400 TRI-C.
Revision History
Issue 3 of this document inserts an additional table
(new Table 9) describing cable type and temperature
loss data.
Features
Total Reach ISDN-C, part number 1212082L1,
features include:
Trademarks: Any brand names and product names included in this document are
61212082L1-5C
trademarks, registered trademarks, or trade names of their respective holders.
T400 TRI-C
®
Total Reach
ISDN Central Office Card
Installation and Maintenance
Section 61212082L1-5, Issue 3
CLEI Code #DDRPLRC1 _ _
O FF IC E I/F
TR I I/F
TE ST
AC T

Figure 1. T400 Total Reach ISDN-C

•
ISDN 2B1Q U-interface meets all Layer 1
requirements as specified in ANSI T1.601-
1992.
•
U-interface provides 18 kft nominal range on
mixed gauge wire.
•
Total Reach (TR) interface provides 30.5 kft
nominal range on mixed gauge wire.
•
Distinctive LUNT metallic DC test signature as
specified in TR-NWT-000397.
•
Performance monitoring of the Layer 1 facility
as specified in TR-NWT-000397 and
TR-TSY-000829.
•
Eight hours of performance history as specified
by TR-NWT-000829.
•
Local test access for DS0 digital test sets.
•
Eight ISDN BRA National Standard embedded
operations channel (eoc) messages responded
to, including B1, B2, and 2B+D loopbacks.
Section 61212082L1-5
Issue 3, March 2000
1
