1. GENERAL

This practice provides installation and maintenance
procedures for the ADTRAN 23-inch T400 Shelf,
illustrated in Figure 1.
Revision History
Issue 5 clarifies shelf backplane fuse requirements and
updates text format.
Features
The T400 shelf, P/N 1150092L1, supports the
following features and functions:
61150092L1-5E
ADTRAN 23-Inch T400 Shelf
Installation and Maintenance

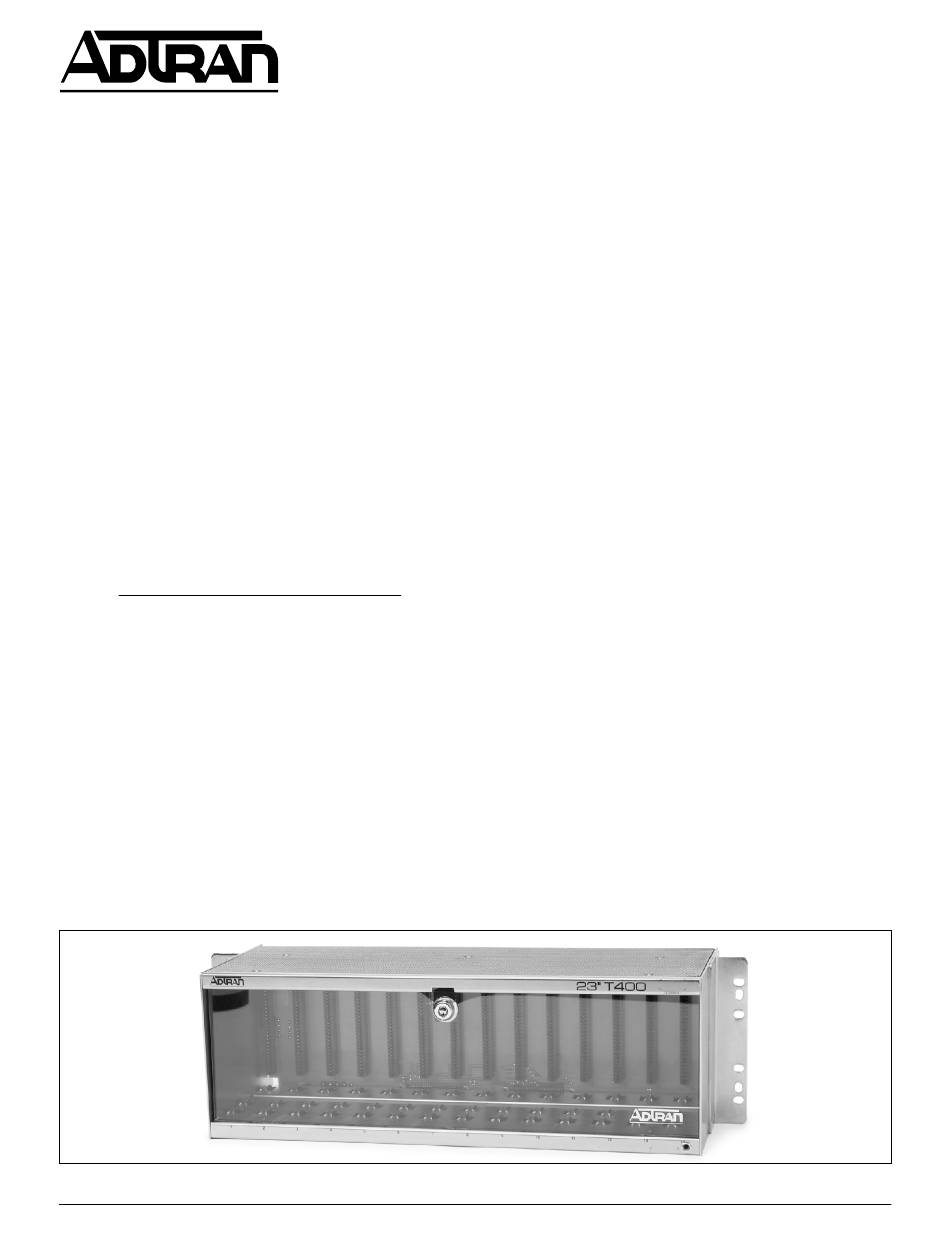

Figure 1. 23-inch T400 Shelf
Trademarks: Any brand names and product names included in this document are
Section 61150092L1-5, Issue 5
trademarks, registered trademarks, or trade names of their respective holders.
CLEI Code NDMMBJ01 _ _
• Accommodates up to 14 industry standard
T400/T200 circuit packs.
• Meets applicable sections of GR-1089-CORE
and GR-63-CORE for NEBS Level 3
Compliance.
• Provides four 25-pair amphenol connectors.
• Locking front cover.
• Various mounting positions for standard rack
configurations.
• Loss of power alarm relay.
• Front panel electrostatic discharge (ESD)
grounding jack.
General Description
The T400 Shelf is designed to deploy T200/T400
circuit packs. The shelf supports 2-wire, 4-wire, or
two to 4-wire circuit pack form factors for both central
offices and customer premises.
Equipped with mounting flanges, the T400 shelf
installs in a standard 23-inch central office
communications bay. The shelf measures 21 inches
wide, 11 inches deep, and 7 inches high, occupying
four vertical rack units. Two sets of holes on the
mounting flanges allow for positioning the shelf in
either of two standard bay mounting configurations.
The shelf backplane printed circuit board (PCB)
accommodates card edge connectors plus the
interconnects for signals, power, ground, and loss of
power alarm (Figure 2). The backplane of the T400
Shelf contains the following:
• Fourteen 56-pin card edge connectors, one for
each individual circuit pack.
