ADTRAN 400 Installation And Maintenance

For Loop Powered Network Termination Units
CONTENTS
1. GENERAL .......................................................... 1
2. INSTALLATION ............................................... 1
3. CONNECTIONS ................................................ 2
4. MAINTENANCE ............................................... 3
5. WARRANTY AND CUSTOMER SERVICE ... 3
FIGURES
Figure 1. T400 LP Housing ...................................... 1
Figure 2. T400 LP Housing with Cover Open ......... 2
Figure 3. T400 LP Housing Rear Panel .................... 2
TABLES
Table 1. Cable Pairs ................................................ 2
Table 2. Barrier Strip Interface Connection to Card
Edge Connector ......................................... 2
1. GENERAL
This section provides installation and maintenance
information for the ADTRAN
Single Mount Housing, illustrated in Figure 1.
Description
The ADTRAN T400 housing is used with a Loop
Powered (LP) Type 400 network termination unit and
is located at the customers premises. Functioning as a
point-of-demarcation, the combination housing and
circuit pack provide diagnostic and provisioning
information useful in installation and trouble isolation
procedures.
Connections are made to the unit by a screw terminal
block and an RJ-48 jack.
Document Revision History
This document has been revised to include additional
grounding information.
Features
The ADTRAN T400 LP Housing, P/N 1212007L1,
features include:
• Standalone Type-400 housing
61212007L1-5B
All manuals and user guides at all-guides.com
Type 400 Single Mount Housing
Installation and Maintenance
® Type 400 (T400)
Trademarks: Any brand names and product names included in this document are
Section 61212007L1-5, Issue 2
trademarks, registered trademarks, or trade names of their respective holders.
CLEI Code # NCM5MPSD_ _

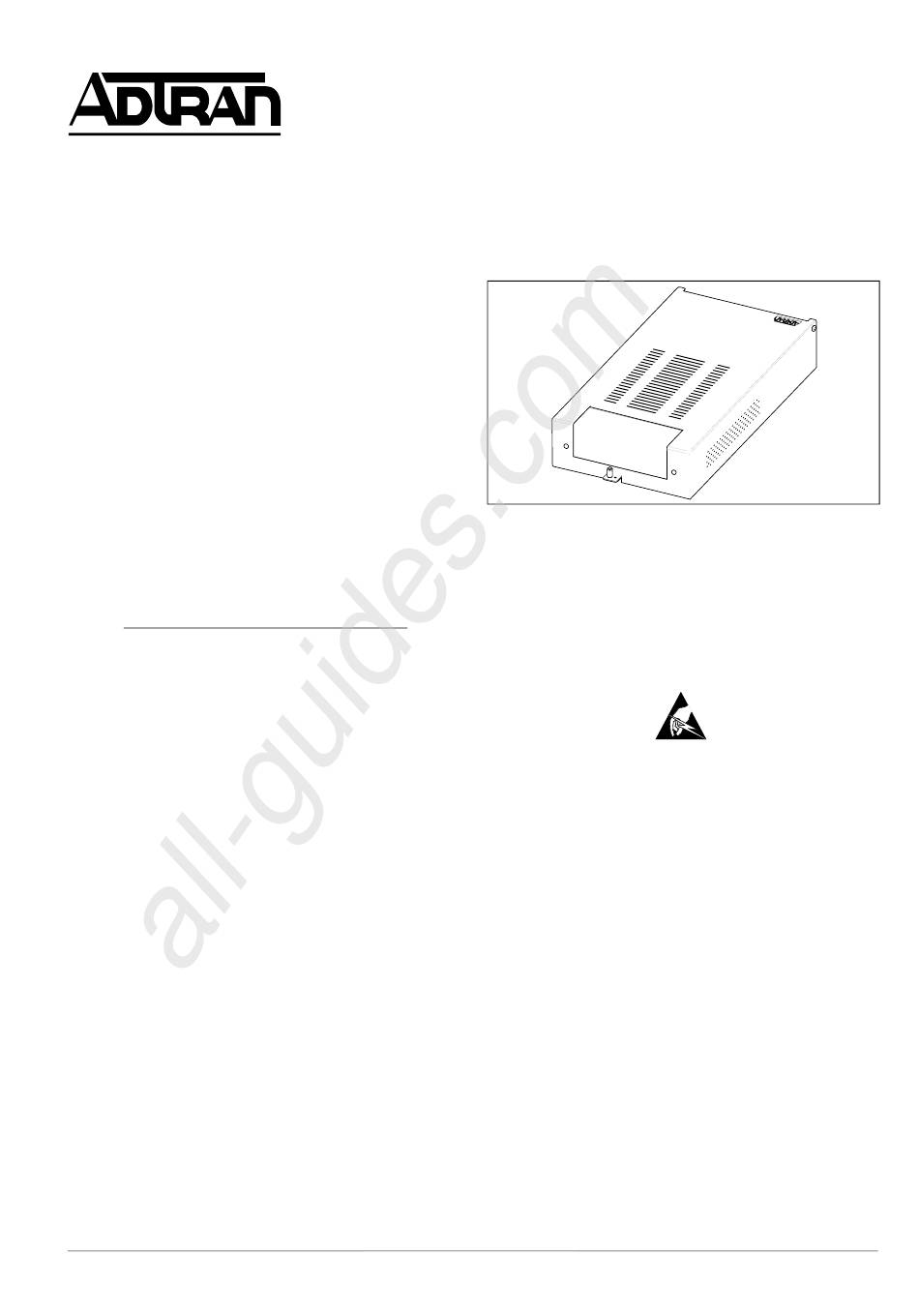

Figure 1. T400 LP Housing
• Span Powered
• Network connection via terminal barrier strip
• Customer connects to RJ-48 or barrier strip
• Durable metal enclosure
2. INSTALLATION
C A U T I O N !
SUBJECT TO ELECTROSTATIC DAMAGE
OR DECREASE IN RELIABILITY.
HANDLING PRECAUTIONS REQUIRED.
After unpacking the unit, inspect it for damage. If
damage is discovered, file a claim with the carrier and
then contact ADTRAN. See Warranty and Customer
Service.
The ADTRAN T400 LP housing may be mounted
using the mounting holes shown in Figure 2.
Open the cover and insert the circuit card through the
front of the housing until it snaps into the card edge
connector (J1), shown in Figure 2. After making the
interface connections and lowering and securing the
cover, the unit is ready for normal operation. Some
circuit cards may require a frame ground connection
to pin 11 or 27 of the gold finger connector. A ground
lug (L1), as illustrated in Figure 2, is provided to
connect an external frame ground wire to the unit.
Section 61212007L1-5B
Issue 2, May 2001
1
