ADTRAN T200 Installation And Maintenance Manual

CONTENTS
1. GENERAL .............................................................1
2. PHYSICAL DESCRIPTION .................................1
3. INSTALLATION ..................................................3
4. CONNECTIONS ...................................................4
5. SPECIFICATIONS ...............................................4
6. MAINTENANCE ..................................................5
7. WARRANTY AND CUSTOMER SERVICE ......5
FIGURES
Figure 1. Type 200 or 400 Single Mount Housing ....1
Figure 2. T400 Housing Terminal Strips ...................2
Figure 3. T400 Housing Rear Panel ...........................3
Figure 4. Wall Mount Template Measurements ........3
TABLES
Table 1. Compliance Codes .......................................4
Table 2. Card Edge Connector Pinout .......................4
Table 3. Specifications ...............................................4

1. GENERAL

This section provides installation and maintenance
information for the ADTRAN Type 200 or Type 400
Single Mount Housing. The T400 Housing is used to
house a standard T400 circuit pack, and is capable of
performing loop termination. Figure 1 is an
illustration of the unit.
Basic Features
The basic features of the unit are listed below.
• Standalone Type 400 housing
• -48 Vdc power connections
• Network connection through a terminal strip
• Interchangeable RJ-48C or RJ-48X jacks shipped
with unit for connection to CPE
• Durable, hinged metal enclosure
• Wraparound transparent front panel for easy LED
viewing
• Cover secured with captive screw
61242034L3-5B
Type 200 or 400 Single Mount Housing
Installation and Maintenance
Trademarks: Any brand names and product names included in this document are
61242034L3-5, Issue 2
trademarks, registered trademarks, or trade names of their respective holders.

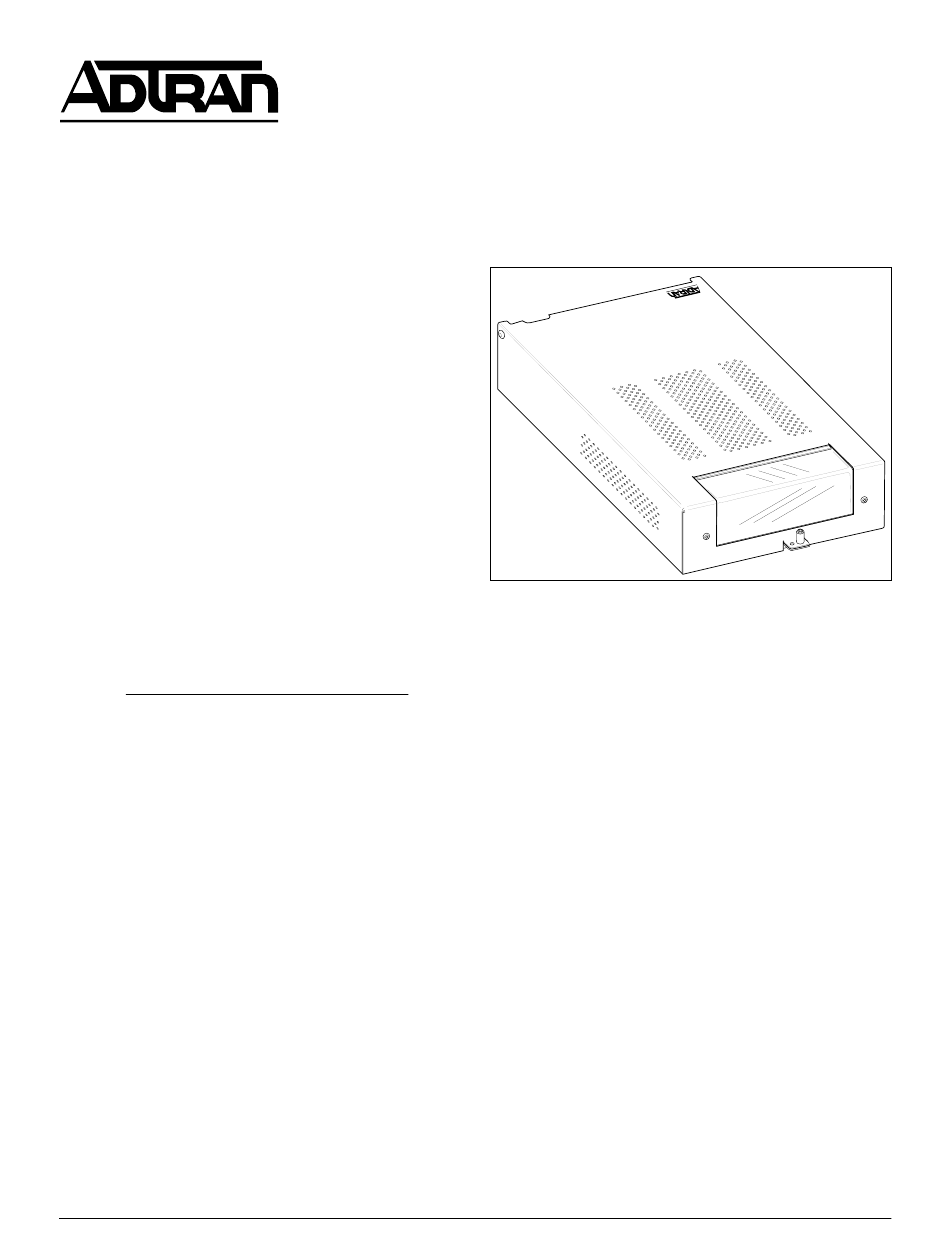

Figure 1. Type 200 or 400 Single Mount
Housing
The T400 Housing is designed to accept any standard
Type 200 or Type 400 plug-in card. For non-loop
powered units, the T400 Housing can provide power
to the circuit card through an external power supply.
The ADTRAN 1353DSK48V04 power supply can be
used to provide -48 Vdc from standard 100-120 Vac
to power these cards.
This power supply must be purchased separately. The
T400 Housing also provides network and customer
interface connections to the circuit card.
Revision History
Issue 2 of this document includes new switch SW1
and additional pin descriptions.
Description
The ADTRAN T400 Housing, part number
1242034L3, is a Type 400 metal chassis that is
intended to be wall-mounted. It houses a single T200
or T400 circuit card.

2. PHYSICAL DESCRIPTION

Figure 1 illustrates the ADTRAN T400 Housing with
the cover on. Connections are made available by
unscrewing the lock screw and lifting the hinged
cover.
Section 61242034L3-5B
Issue 2, Janunary 2001
CLEI # T1MFKTE6_ _
1
