61222026L7-5B
T200 H2TU-R Circuit Pack
2-Wire HDSL (HDSL2) Remote Unit
Installation and Maintenance
Trademarks: Any brand names and product names included in this document are
Section 61222026L7-5, Issue 2
trademarks, registered trademarks, or trade names of their respective holders.
CLEI Code #T1L3W71A _ _
1222026L7
M
O
N

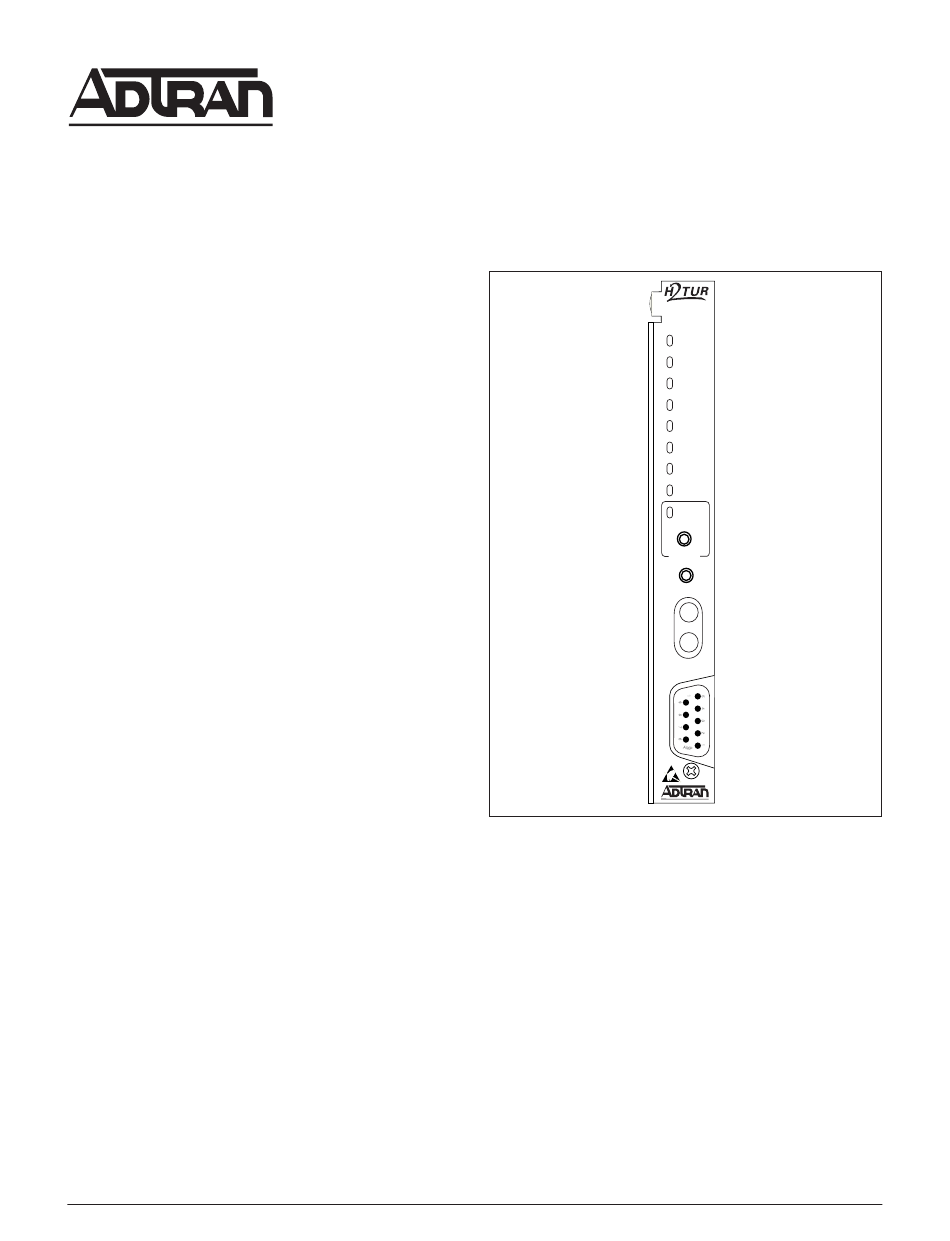

Figure 1. ADTRAN T200 H2TU-R

1. GENERAL

The ADTRAN 2-wire T200 HDSL2 transceiver unit
for the remote end (H2TU-R), P/N 1222026L7, is a
network terminating unit used to deploy an HDSL2 T1
circuit using 2-wire metallic facilities, see Figure 1.
The H2TU-R is a T200 mechanics card which will fit
T200 or T400 mechanic enclosures. The H2TU-R can
be housed in the ADTRAN standalone metal
enclosures (P/N 1242034LX or 1245034L1). Refer to
the appropriate ADTRAN practice for more
information. The T200 H2TU-R card can also plug
into the ADTRAN HR12 HDSL2 remote shelf (P/N
1242007LX), or the ADTRAN HR4 HDSL2 remote
shelf (P/N 1242008L1).
Section 61222026L7-5B
Issue 2, June 2001
STAT
DLOS
RLOS
HLOS
DSL
HCRC
ARM/LBK
(YEL) (GRN)
B8ZS
AIS / LP
(OFF) (GRN)
O
P
T
CPE LOS
LBK
TX
RX
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T200 H2TU-R and is the answer not in the manual?

Questions and answers

Summary of Contents for ADTRAN T200 H2TU-R

  • Page 1: Table Of Contents

    ADTRAN practice for more Table 7. ADTRAN T200 H2TU-R Specifications ....19 information. The T200 H2TU-R card can also plug Table A-1. In Band Addressable Loopback Codes ....A-2 into the ADTRAN HR12 HDSL2 remote shelf (P/N 1242007LX), or the ADTRAN HR4 HDSL2 remote shelf (P/N 1242008L1).
  • Page 2: Installation

    ® 1221002L1 ....LiteSpan H2TU-C damage is discovered, file a claim with the carrier, 1221003LX ....DDM+ H2TU-C then contact ADTRAN. See Warranty and Customer 1221004LX ....3192 H2TU-C Service. 1221006L6 ....T200 H2TU-C ® 1221007L4 ....H2TU-C for Soneplex The settings on the H2TU-C are encoded and ®...
  • Page 3 Table 2. Front Panel Indicators Label Condition Description 1222026L7 STAT Off ......Indicates no power present at H2TU-R. Blinking Green ..The unit is in the process of acquiring HDSL2 synchronization. Solid Green ..Normal Operation: HDSL2 synchronization is achieved. STAT DLOS Off ......
  • Page 4: Connections

    H2TU-R circuit pack. Chassis Ground 4. HDSL2 SYSTEM TESTING The T200 H2TU-R provides diagnostic, loopback, and DS1 TX Tip signal monitoring capabilities. HDSL2 Tip The nine front panel LEDs provide diagnostics for...
  • Page 5: Figure 4. Hdsl2 Loopbacks

    LOOP H2TU-C H2TU-R Figure 3 illustrates all of the possible loopback H2TU-R Bilateral Loopback locations of the ADTRAN HDSL2 equipment. LOCAL Customer Loopbacks DSX-1 LOOP In addition to the loopbacks in the direction of the H2TU-C...
  • Page 6: Front Panel Operation

    5. FRONT PANEL OPERATION The H2TU-R supports two types of terminal emulation modes. The Manual Update Mode is a The front panel contains two pushbuttons on the dumb terminal mode, where the user can utilize print faceplate. These are labeled “LBK” and screen and log file commands easily.
  • Page 7 Operation The screens illustrated in Figures 6 through 21 apply For abbreviations used in the screen diagrams, see to an HDSL2 circuit deployed with ADTRAN's HDSL2 technology. The circuit includes an H2TU-C Table 3. and an H2TU-R. Other configurations are possible (i.e., HDSL2 repeater, other vendor's equipment) and...
  • Page 8: Figure 6. Hdsl2 Main Menu Screen

    6. Scratch Pad, Circuit ID, Time/Date 7. Terminal Modes 8. Alarm History 9. Event History 10. Virtual Terminal Control CIRCUIT ID: 01/01/00 00:32:53 Adtran HDSL2 Main Menu HDSL2 Unit Information Provisioning Span Status Loopbacks and Test Performance History Scratch Pad, Ckt ID, Time/Date...
  • Page 9: Figure 7. Hdsl2 Information Screen

    HDSL2 circuit. This screen HDSL2 circuit. To change a particular option setting, also displays contact information for ADTRAN select the appropriate number, and a new menu will Technical Support, Internet site, and address.
  • Page 10: Figure 9. Span Status Screen

    The Span Status Screen, illustrated in Figure 9, From this screen, all registers can be zeroed (which provides quick access to status information for each requires confirmation), and MIN/MAX can be reset. HDSL2 receiver in the circuit. The Legend selection provides a description of the messages that are used NOTE on the Span Status Screens.
  • Page 11: Figure 11. Loopback And Test Commands Screen

    Figure 11 illustrates the Loopback and Test The Performance History Screens, illustrated in Commands Screen, which provides the user with the Figure 12 and Figure 13 display the historical ability to invoke or terminate all available HDSL2 HDSL2 and T1 performance data in several different loopbacks.
  • Page 12: Figure 13. 24-Hour Performance History Line Data Screen

    At each 15-minute interval, the performance The user is prompted to select a module and interface information is transferred to the 15-minute to view the corresponding performance data. Line (L) performance data register. This unit stores and Path (P) can be viewed. performance data in 15-minute increments for the last Abbreviations used in the Performance History 24-hour period.
  • Page 13: Figure 15. Performance Data Definitions Screen Continued

    Figure 16 illustrates the Scratch Pad, Circuit ID, and Time/Date Screen. The Scratch Pad data can be any alphanumeric string up to 50 characters in length. The Circuit ID can be any alphanumeric string up to 25 characters in length. The time should be entered using military time (for example, enter 3:15 p.m.
  • Page 14: Figure 17. Terminal Modes Screen

    This unit includes two terminal emulation modes. session is automatically initiated if a terminal is These modes are described on the Terminal Modes connected to the H2TU-R, and the HDSL2 loops Screen, illustrated in Figure 17. are in sync with the H2TU-C. When a remote terminal session is in progress, the screens are not accessible from the H2TU-C.
  • Page 15: Figure 18. Alarm History Screen

    The Alarm History Screen, illustrated in Figure 18, The Event History Screen, illustrated in Figure 19, provides the user with a detailed alarm history and provides a log history of HDSL2 circuit events. events log for the HDSL2 and T1 spans. This screen includes a time, date, first/last occurrence, and count for each type of HDSL2 or T1 alarm.
  • Page 16: Figure 20. Virtual Terminal Control Screen

    Figure 20, illustrates the Virtual Terminal Control Screen. CIRCUIT ID: 01/01/00 00:45:20 Virtual Terminal Session: Inactive Virtual Host: Virtual Terminal Control Log into H2TU-C Selection: Figure 20. Virtual Terminal Control Screen Section 61222026L7-5, Issue 2 61222026L7-5B...
  • Page 17: Hdsl2 Deployment Guidelines

    7. HDSL2 DEPLOYMENT GUIDELINES Loop loss per kft for other wire is summarized in Table 4. The ADTRAN HDSL2 system is designed to provide DS1-based services over loops designed to comply Table 4. HDSL2 Loss Values with Carrier Service Area (CSA) guidelines. CSA Ω...
  • Page 18: Troubleshooting Procedures

    8. TROUBLESHOOTING PROCEDURES 9. MAINTENANCE Use Table 6 to troubleshoot the ADTRAN H2TU-R. The ADTRAN H2TU-R requires no routine maintenance. In case of equipment malfunction, use the faceplate Bantam jack and/or DB-9 connector to help locate the source of the problem.
  • Page 19: Product Specifications

    10. PRODUCT SPECIFICATIONS Table 7 lists the H2TU-R specifications. Table 7. ADTRAN T200 H2TU-R Specifications Loop Interface Modulation Type ........16-TC PAM Mode ............Full Duplex, Partially Overlapped Echo Canceling Number of Pairs ........One Bit Rate ............ 1.552 mpbs Baud Rate ..........
  • Page 20: Warranty And Customer Service

    11. WARRANTY AND CUSTOMER SERVICE ADTRAN Sales Pricing and Availability ADTRAN will replace or repair this product within 10 (800) 827-0807 years from the date of shipment if it does not meet its published specifications or fails while in service ADTRAN Technical Support (see ADTRAN U.S.
  • Page 21: Appendix A. Hdsl2 Loopback

    Appendix A HDSL2 Loopbacks HDSL2 MAINTENANCE MODES The unit can detect the loopback activation or This Appendix describes operation of the HDSL2 deactivation code sequence only if an error rate of or better is present. system with regard to detection of in-band and ESF facility data link loopback codes.
  • Page 22 Table A-1. In-Band Addressable Loopback Codes Function / Code Response Arm/ 11000 (also known as a 2-in-5 pattern) When sent from the network, the H2TU-C will arm and the H2TU-R will loop up toward the network. No AIS or errors will be sent as a result of this loopback.
