ADTRAN T400 Installation Instructions

PRACTICES
CONTENTS
1. GENERAL .................................................................... 1
2. PHYSICAL DESCRIPTION .......................................... 2
3. INSTALLATION ............................................................ 3
4. CONNECTIONS ........................................................... 3
5. SPECIFICATIONS ........................................................ 4
6. REFERENCES ............................................................. 4
7. MAINTENANCE ........................................................... 4
8. WARRANTY AND CUSTOMER SERVICE .................. 4
FIGURES
Figure 1. T400 Housing ................................................... 1
Figure 2. T400 Housing Terminal Barrier Strip ............ 2
Figure 3. T400 Housing Rear Panel ............................... 2
Figure 4. T400 Wall Mounting Template
Measurements ................................................. 3
Table A. T400 Housing Basic Features ........................ 1
Table B. T400 Housing Terminal Block Interface
Connection to Card Edge Connector ............ 3
Table C. Specifications .................................................. 4
___________________________________________
1. GENERAL
1.1 This section provides installation and
maintenance information for the ADTRAN Type 400
(T400) Single Mount Housing. Figure 1 is an illustration
of the unit. The part number and basic features for the
unit are provided in Table A.
The T400 Housing is used to house a standard
T400 circuit pack, and is capable of performing loop
termination.
1.2 Future changes to this practice will be listed in
this paragraph.
1.3 The T400 Housing is designed to accept any
standard Type 400 plug-in card. For non-loop powered
units, the T400 Housing can provide power to the circuit
card through an external power supply. The ADTRAN
1353.DSK48V02 power supply can be used to provide
-48 VDC from standard 120 VAC to power these cards.
61242.034L2-5A
HANDLING PRECAUTIONS REQUIRED.
TYPE 400 SINGLE MOUNT HOUSING
INSTALLATION/MAINTENANCE
TABLES
C A U T I O N !
SUBJECT TO ELECTROSTATIC DAMAGE
OR DECREASE IN RELIABILITY.

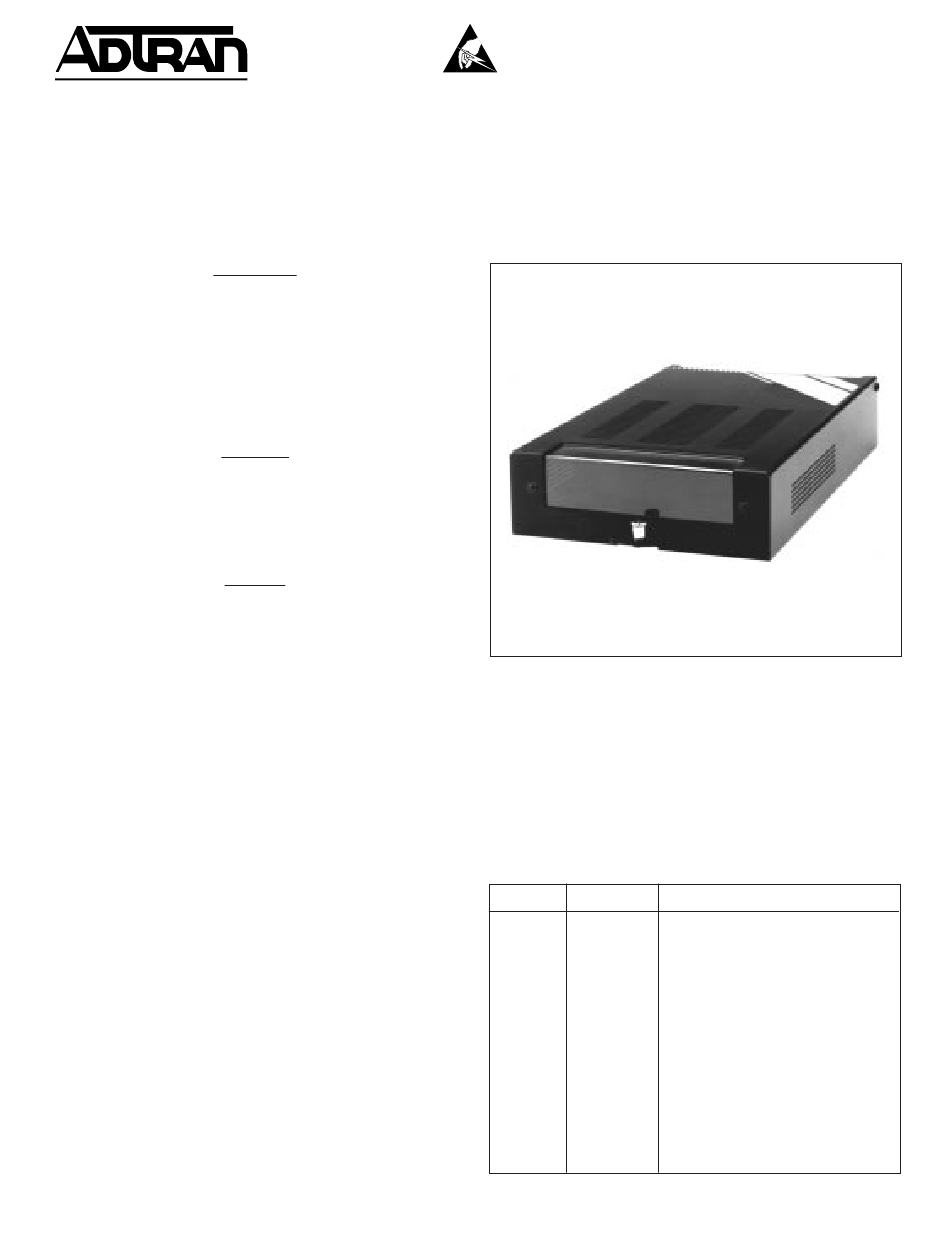

Figure 1. T400 Housing
The ADTRAN 1353.Power08 power supply can
be used to provide -48 VDC from standard 220 VAC.
These power supplies must be purchased separately.
The T400 Housing also provides network and customer
interface connections to the circuit card.
Table A. T400 Housing Basic Features
Unit
Part No.
T400
1242034L2
Single
Mount
Housing
Section 61242034L2-5, Issue 1
Section 61242034L2-5
Issue 1, June 1995
CLEI Code # TBD _ _ _
Features
Stand alone Type 400 housing
-48 VDC power connections
Network connection through a
terminal barrier strip
Removable RJ-48C or RJ-48X
jacks shipped with unit for easy
connections to CPE
Durable, hinged metal enclosure
Wraparound transparent front
panel for easy LED viewing
Cover secured with thumb screw
Page 1
