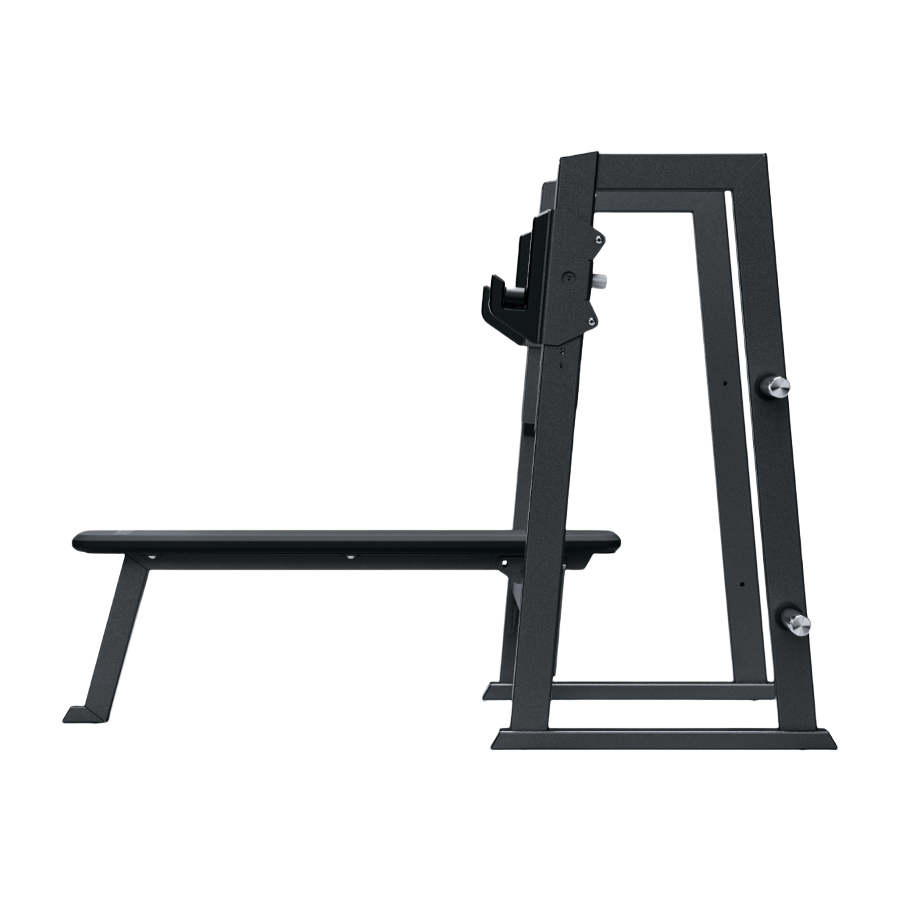

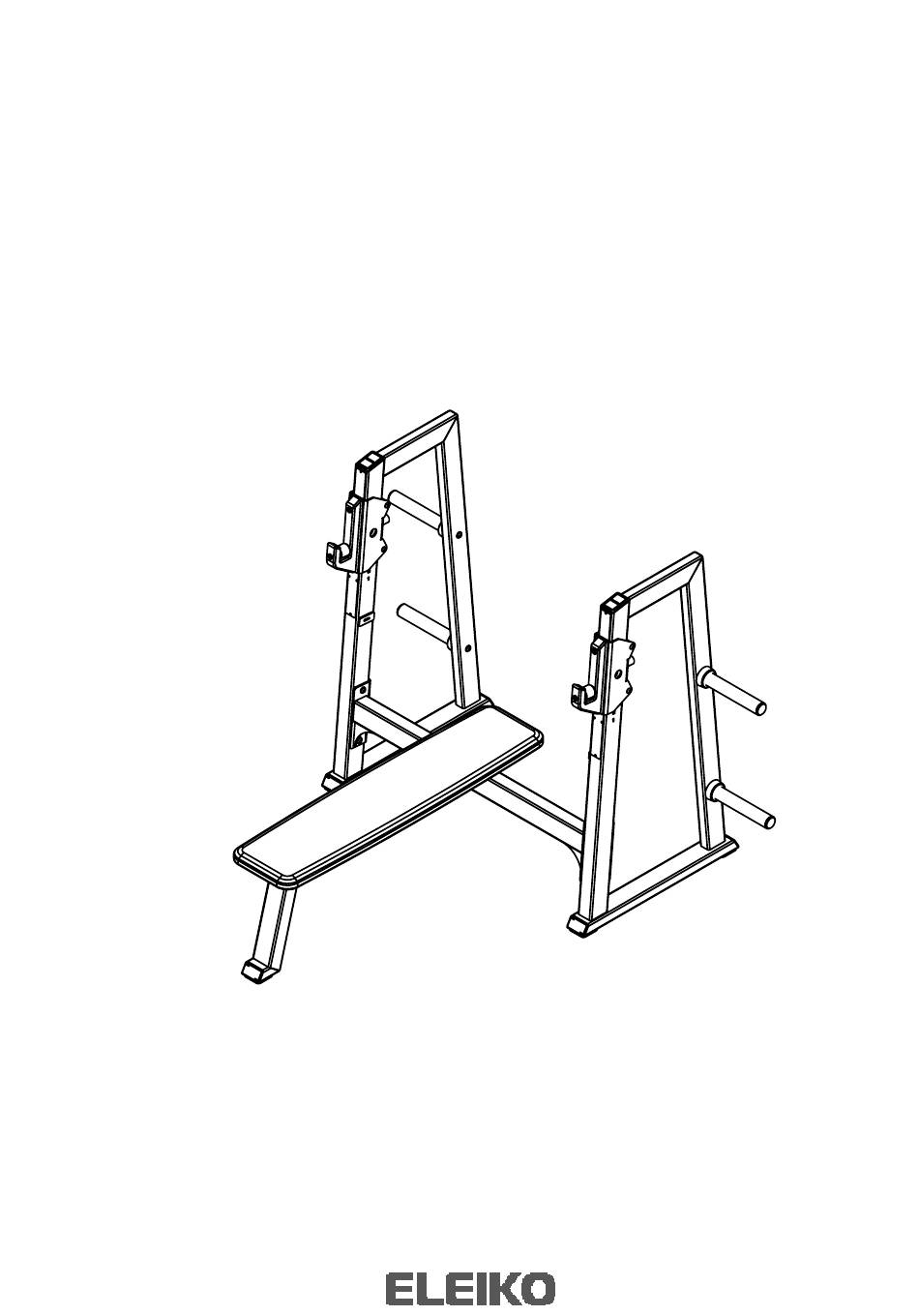

- Page 1 ELEIKO OLYMPIC FLAT BENCH Art.no. 3062964, 3062965...
-
Page 2: Table Of Contents
CONTENTS Read before installation and use Safety instructions Warning labels List of components Assembly instructions Tools needed User guide Purpose General instructions for use Product specifications Care and maintenance Preventive maintenance and inspections Spare parts and service Warranty... -
Page 3: Read Before Installation And Use
Install and use this equipment in a place where access and supervision are specifically controlled by the owner. Be sure to install the equipment on a stable base and level the equipment properly. Eleiko recommends that all equipment is secured to the floor and installed by a licensed contractor or an Eleiko installer. -
Page 4: Warning Labels
WARNING LABELS - 4 -... -
Page 5: List Of Components
LIST OF COMPONENTS 2001355 2001354 2000378 2001345 3085460 3000197p14 RIGHT FRAME LEFT FRAME 3000197p14 UPHOLSTERY FRAME 3085374 a4 3085374 p32 K6S M10 x 25 M10 X 30 3080009 p23 3061757 p30 3085374 a7 2000675-L25 2001435-L30 - 5 -... - Page 6 LIST OF COMPONENTS UPHOLSTERY UPHOLSTERY POLYURETHANE 2001277 UPHOLSTERY SKAI LEATHER 2001394 - 6 -...
-
Page 7: Assembly Instructions
ASSEMBLY INSTRUCTIONS Before assembly, make sure you have enough clearance on all sides of the equipment, not less than 0,6 meters. Take in account 0,6 m 0,6 m the accessibility to remove and replace bar and weights. TOOLS NEEDED You need the following tools to assemble the equipment. ALLEN KEY SIZE 6 NOTE: Do not use electric power tools for assembly. - Page 8 3080009 p23 M10 X 30 3085374 a4 RIGHT FRAME BE CAREFUL WHEN LAYING FRAME ON THE GROUND TO PREVENT DAMAGE! START HERE! LOOSE SCREWS! - 8 -...
- Page 9 M10 X 30 3080009 p23 LEFT FRAME START HERE! LOOSE SCREWS! - 9 -...
- Page 10 UPHOLSTERY FRAME UPHOLSTERY 3085374 p32 K6S M10 x 25 - 10 -...
- Page 11 M10 X 30 - 11 -...
- Page 12 3061757 p30 3085374 a7 M10 X 30 TIGHTEN ALL SCREWS! - 12 -...
-
Page 13: User Guide
USER GUIDE PURPOSE The unit is designed to be used for a variety of bench press excersises from a flat bench position. GENERAL INSTRUCTIONS FOR USE Ideally use a barbell that meets or is IWF/IPF-certified. Never stand on the pad and never put the barbell on the cushion. PRODUCT SPECIFICATION Max user weight 150 kg / 330 lbs... -
Page 14: Care And Maintenance
E-mail: info@eleiko.com | Phone: +46 35 17 70 70 WARRANTY All products manufactured by ELEIKO are warranted to the original purchaser to be free from defects in workmanship and / or materials under normal use or service as follows: · 10 years on structural frame welds (NOT on moving parts) ·... - Page 16 Eleiko Group AB | Klastorpsvägen 18 | SE-302 62 HALMSTAD | Sweden E-mail: info@eleiko.com | Phone: +46 35 17 70 70 www.eleiko.com...
