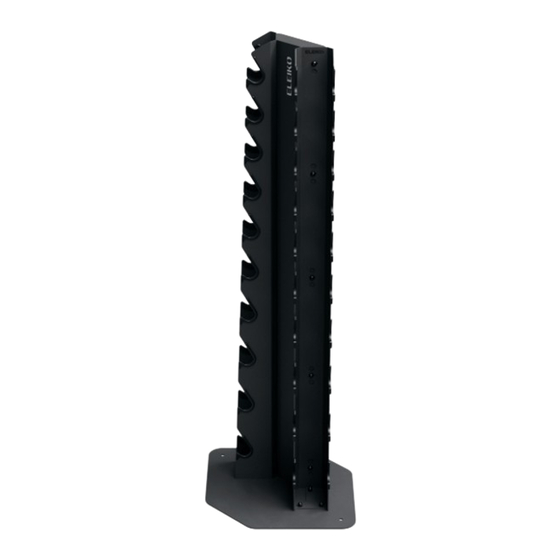

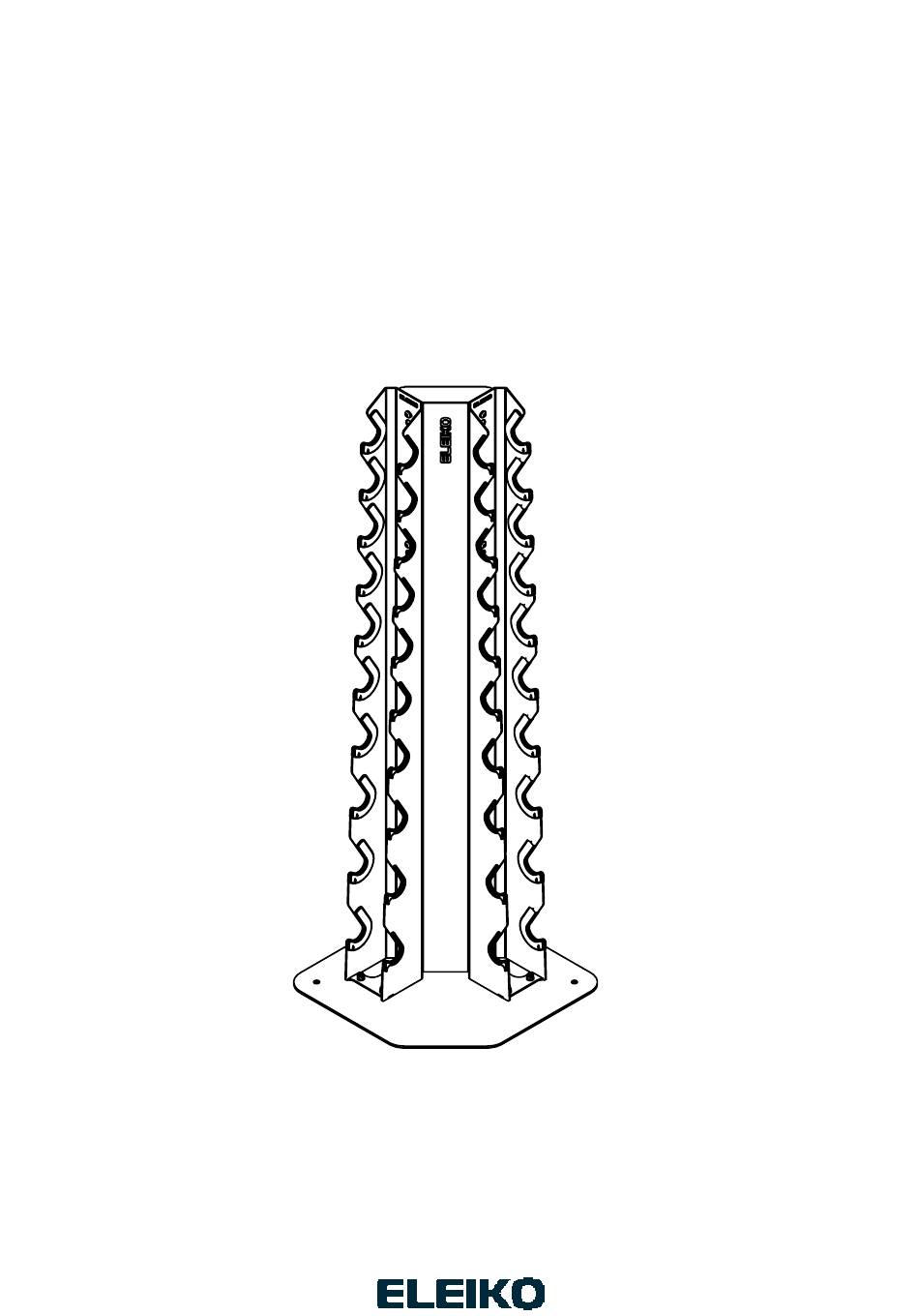

- Page 1 ELEIKO VERTICAL DUMBBELL RACK - ANGLED Art.no. BD-1-640...
-
Page 2: Table Of Contents
CONTENTS Read before installation and use Safety instructions User guide Purpose General instructions for use Product specifications List of components Assembly instructions Tools needed Care and maintenance Preventive maintenance and inspections Spare parts and service Warranty... -
Page 3: Read Before Installation And Use
Install and use this equipment in a place where access and supervision are specifically controlled by the owner. Be sure to install the equipment on a stable base and level the equipment properly. Eleiko recommends that all equipment is installed by a licensed contractor or an Eleiko installer. -
Page 4: User Guide
USER GUIDE PURPOSE To store dumbbells with weight 1-10 kg and distance between heads of at least 130 mm. This storage rack is optimized for Eleiko EVO dumbbells 1-10 kg. GENERAL INSTRUCTIONS FOR USE Place dumbbell rack on a level floor Store dumbbells in the intended holders, where 1 kg should be placed at the top and 10 kg at the bottom. -
Page 5: List Of Components
LIST OF COMPONENTS 2002025a5 2002024a2 2002025p4 2000668 2000747-L20 2000670 2000804-L20 - 5 -... -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS Before assembly, make sure you have enough clearance on all sides of the equipment. Take in account the accessibility to remove and replace dumbbells. TOOLS NEEDED You need the following tools to assemble the equipment. Spanner Size 5 (M8) NOTE: Do not use electric power tools for assembly. - Page 7 BOLT TO GROUND This product are recommended to be bolted to the ground. Make sure the ground is solid and level. Consult a licensed contractor to choose the appropriate anchoring fasteners for your facility. - 7 -...
- Page 8 - 8 -...
- Page 9 - 9 -...
- Page 10 - 10 -...
-
Page 11: Care And Maintenance
WARRANTY All products manufactured by ELEIKO are warranted to the original purchaser to be free from defects in workmanship and / or materials under normal use or service as follows: · 10 years on structural frame welds (NOT on moving parts). - Page 12 Eleiko Group AB | Klastorpsvägen 18 | SE-302 62 HALMSTAD | Sweden E-mail: info@eleiko.com | Phone: +46 35 17 70 70 www.eleiko.com...
