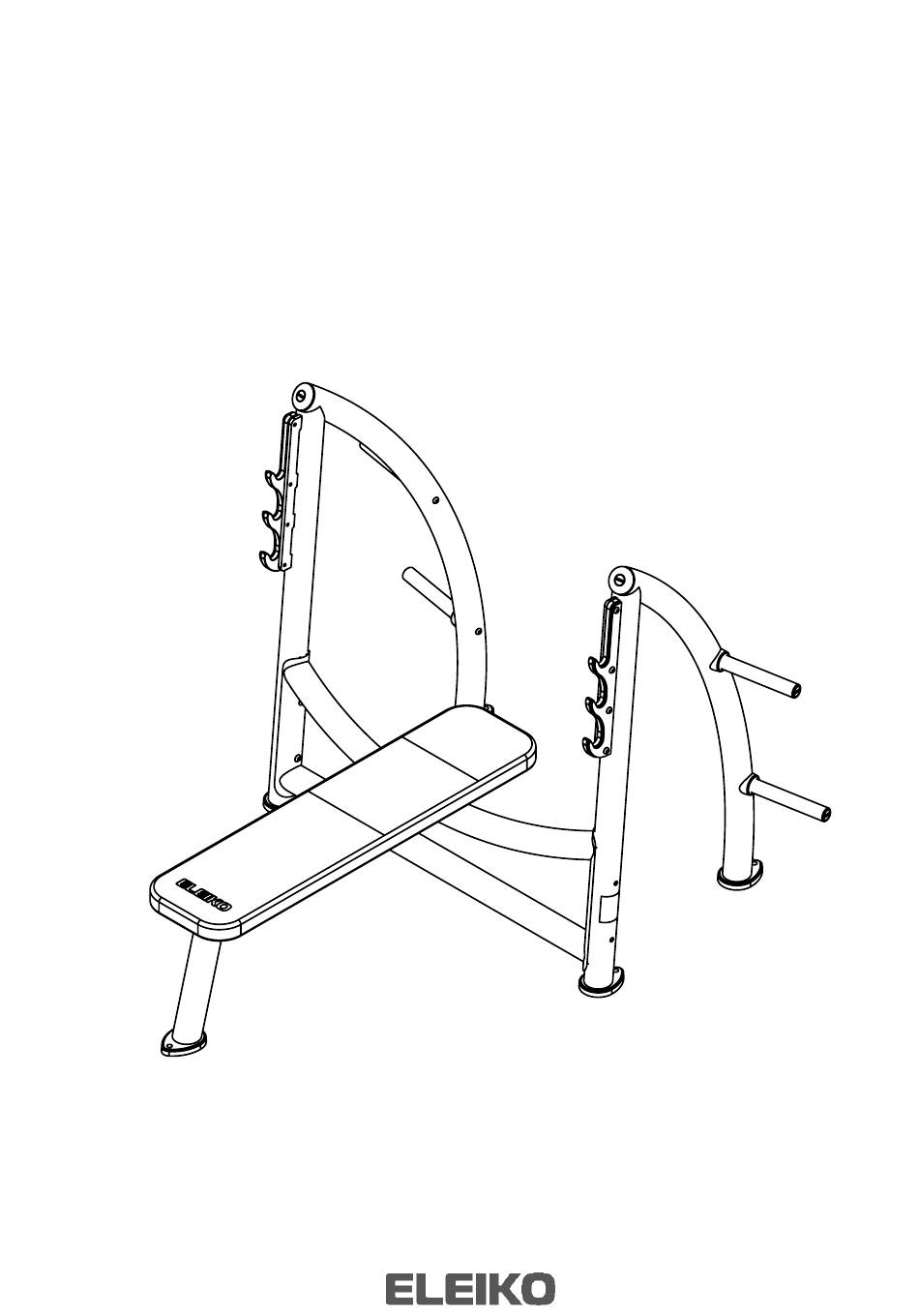

- Page 1 ELEIKO ATLETICA OLYMPIC BENCH PRESS Art.nr 3061390...
-
Page 2: Safety Instructions
ELEIKO-installer. SAFETY INSTRUCTIONS It is the responibility of the purchaser of ELEIKO products to instruct all users and supervising personnel on proper usage of the equipment. 1. All included warnings (labels) and instructions MUST be read before the use of any ELEIKO-equipment. -
Page 3: Product Specifications
PRODUCT SPECIFICATIONS Bench for bench press training and weight storage. Product weight 80 kg / 176 lbs Max user weight 150 kg / 331 lbs Max training weight 350 kg / 772 lbs 1719 x 1628 x 1292mm Dimensions (L x W x H) 68"... -
Page 4: Table Of Contents
CONTENTS Cross Section Frame Right Frame Left Weight Pin Rubber Stop Upholstry Middle Section 2000684 Art. no. 2000839 Screw M10x30 J-CUP J-Cup Bracket Screw M12x30 Lock NutM10 Art.no.2000675-L30 3061390 p39 Art.no.2000743-L30 3061390 p41 Art.no.2000718 Washer M10 Screw M8x20 Screw M10x20 screw M10x25 Art.no.2000719 Art.no.2000747-L20... -
Page 5: Required Tools
REQUIRED TOOLS Allen Key Allen Key Size 8mm Size 10mm Socket wrench and socket size 16mm (M10) GENERAL The table below is general torque to use for different threads. Use these torques, if nothing else is set. Below numbers are for screw/nut of quality 8.8. TORQUE (Nm / ftlb) THREAD Quality 8.8... -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS Screw M12x30 Cross Section Frame Right Art.no.2000743-L30 Frame Left 2000743-L30... - Page 7 Screw M8x20 Upholstry Middle Section Art.no.2000747-L20 Art. no. 2000839 2000747-L20...
-
Page 8: Lock Nutm10
Washer M10 Lock NutM10 screw M10x25 Art.no.2000719 Art.no.2000718 Art.no.2000675-L25 2000675-L25 2000719 2000718... - Page 9 Rubber Stop Weight Pin Screw M10x25 2000684 Art.no.2000675-L25 2000685 2000684 2000675-L20...
-
Page 10: X2 X2
J-CUP screw M10x30 J-Cup Bracket 3061390 p39 Art.no.2000675-L30 3061390 p41 2000675-L30 3061390 p41 3061390 p39... - Page 12 Eleiko Group AB | Klastorpsvägen 18 | SE-302 62 HALMSTAD | Sweden E-mail: info@eleiko.com | Phone: +46 35 17 70 70 www.eleiko.com...
