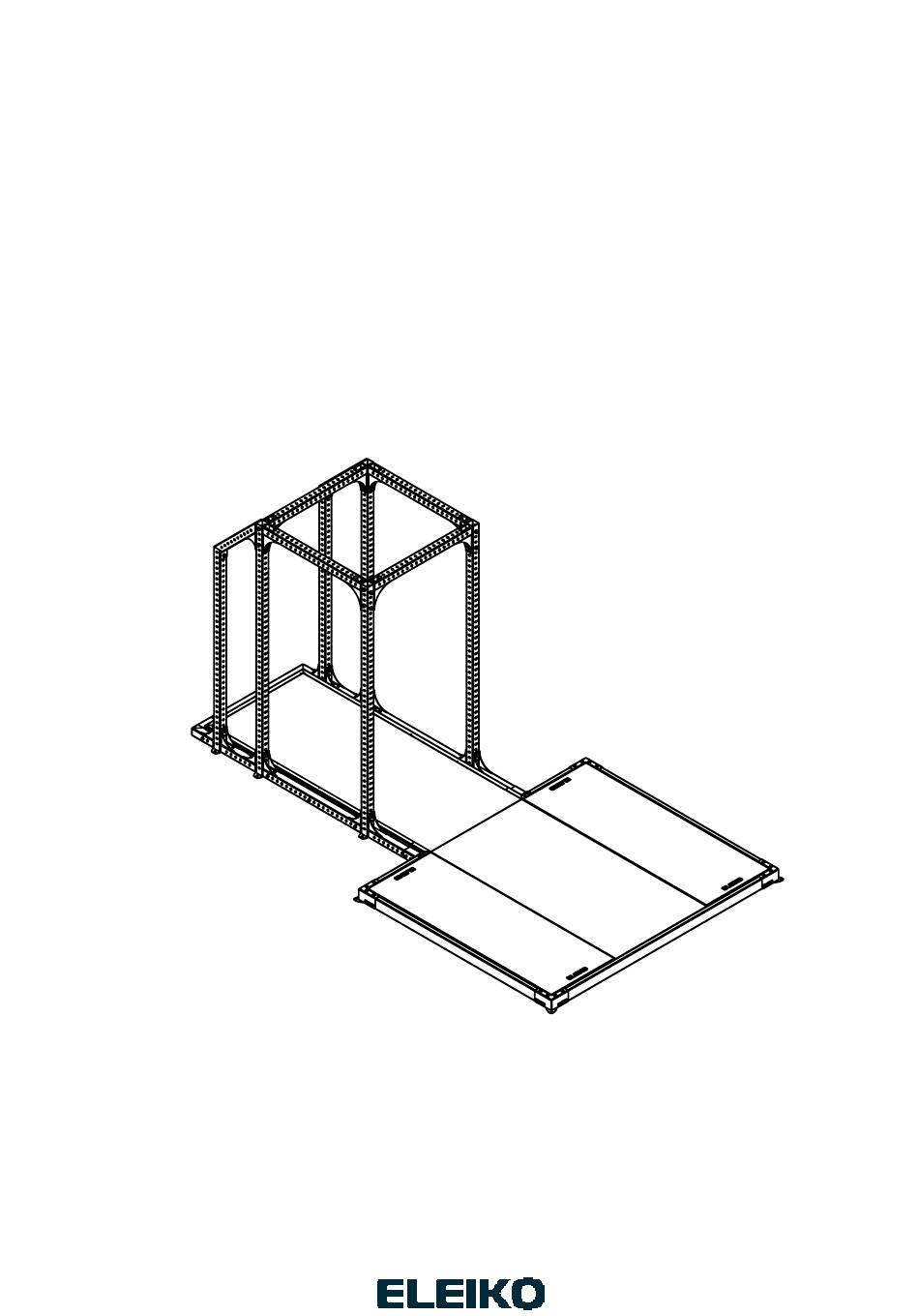

- Page 1 ELEIKO SVR INSERT PLATFORM PRESTERA POWER RACK - LARGE Art.no. 3085578...
-
Page 2: Table Of Contents
CONTENTS Read before installation and use Safety instructions List of components Assembly instructions Tools needed User guide Purpose General instructions for use Product specifications Care and maintenance Preventive maintenance and inspections Spare parts and service Warranty... -
Page 3: Read Before Installation And Use
Install and use this equipment in a place where access and supervision are specifically controlled by the owner. Be sure to install the equipment on a stable base and level the equipment properly. Eleiko recommends that all equipment is installed by a licensed contractor or an Eleiko installer. -
Page 4: List Of Components
LIST OF COMPONENTS 2001362p1 2000876 p1 2000687 p2 2001432 2001431 2001370 2001365 2001366 2000688 a1 2001561 M10x25 M6S M10x80 2000688 p2 2001124-L25 2001385-L80 2000719 2001367 - 4 -... - Page 5 LIST OF COMPONENTS Bonded Foam ARP Black Rubber Tile 666x695x70 mm 666x685x12,7 mm 2000802 2000820 2001901 Bonded Foam Bonded Foam 1200x1000x70 mm 2000x975x70 mm 2001434 2001450 2001451 2001433 - 5 -...
-
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS Before assembly, make sure you have enough clearance on all sides of the equipment, not less than 0,6 meters. Take in account the accessibility to remove and replace bar and weights. TOOLS NEEDED You need the following tools to assemble the equipment. Torx Wrench Allen Key Size 5 Socket Wrench Size 17mm... - Page 7 Remove the two end plates from the front floor beams. - 7 -...
- Page 8 Bonded Foam Bonded Foam 1200x1000x70 mm 2000x975x70 mm 2001434 2001450 LEAVE A SMALL GAP BETWEEN RACK AND BONDED FOAM! 2001434 2001450 - 8 -...
- Page 9 2001433 2001451 CAREFULLY PLACE THE WOODEN PLATFORM IN THE RACK, STANDING DECK FACING UP! 2001433 2001451 LEAVE A SMALL GAP BETWEEN RACK AND PLATFORM! - 9 -...
- Page 10 2001561 SLIDE THE FLAT IRON INTO THE GROOVE IN THE WOODEN PLATFORM, MAKE SURE THE HOLE IN THE FLAT IRON IS TO THE LEFT, THE SAME SIDE AS THE CUT OUT IN THE WOODEN PLATFORM! - 10 -...
- Page 11 2001432 2001370 2001431 - 11 -...
- Page 12 2001367 2001365 M10x25 2001366 LOOSE SCREWS! - 12 -...
- Page 13 2000719 M6S M10x80 CLOSE THE GAP BETWEEN RACK AND PLATFORM FIRST! LOOSE SCREWS! - 13 -...
- Page 14 Bonded Foam ARP Black 666x695x70 mm Rubber Tile 666x685x12,7 mm 2000820 2000802 2001901 2001901 2000820 - 14 -...
- Page 15 2001362p1 SMALLER HOLE TOWARDS RACK! - 15 -...
- Page 16 2000688 a1 2000688 p2 M10x25 LOOSE SCREWS! - 16 -...
- Page 17 2000876 p1 - 17 -...
- Page 18 2000687 p2 - 18 -...
- Page 19 TIGHTEN FRAME AND SCREWS! - 19 -...
-
Page 20: User Guide
USER GUIDE PURPOSE Reduce noise, dampen vibration and minimize bounce. GENERAL INSTRUCTIONS FOR USE Indoor use only. Steel plates only to be dropped from deadlift position. Only drop weights on drop zone. Stand on the lifting deck when lifting. PRODUCT SPECIFICATION Product weight 363 kg / 800 lbs Dimensions (L x W x H) -
Page 21: Care And Maintenance
E-mail: info@eleiko.com | Phone: +46 35 17 70 70 WARRANTY All products manufactured by ELEIKO are warranted to the original purchaser to be free from defects in workmanship and / or materials under normal use or service as follows: · 10 years on the frame. - Page 24 Eleiko Group AB | Klastorpsvägen 18 | SE-302 62 HALMSTAD | Sweden E-mail: info@eleiko.com | Phone: +46 35 17 70 70 www.eleiko.com...
