Summary of Contents for Eleiko BD-1-528

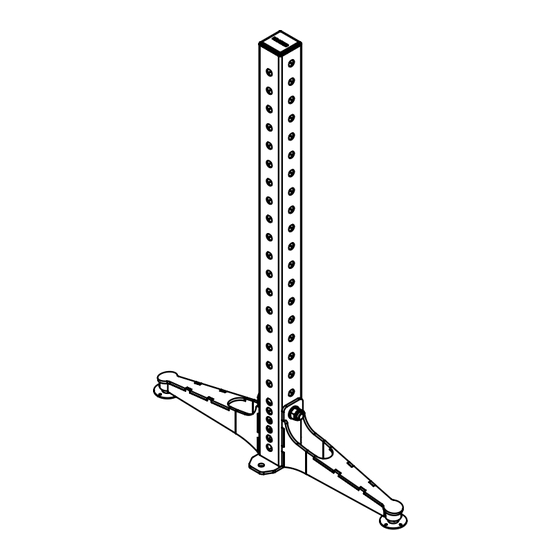

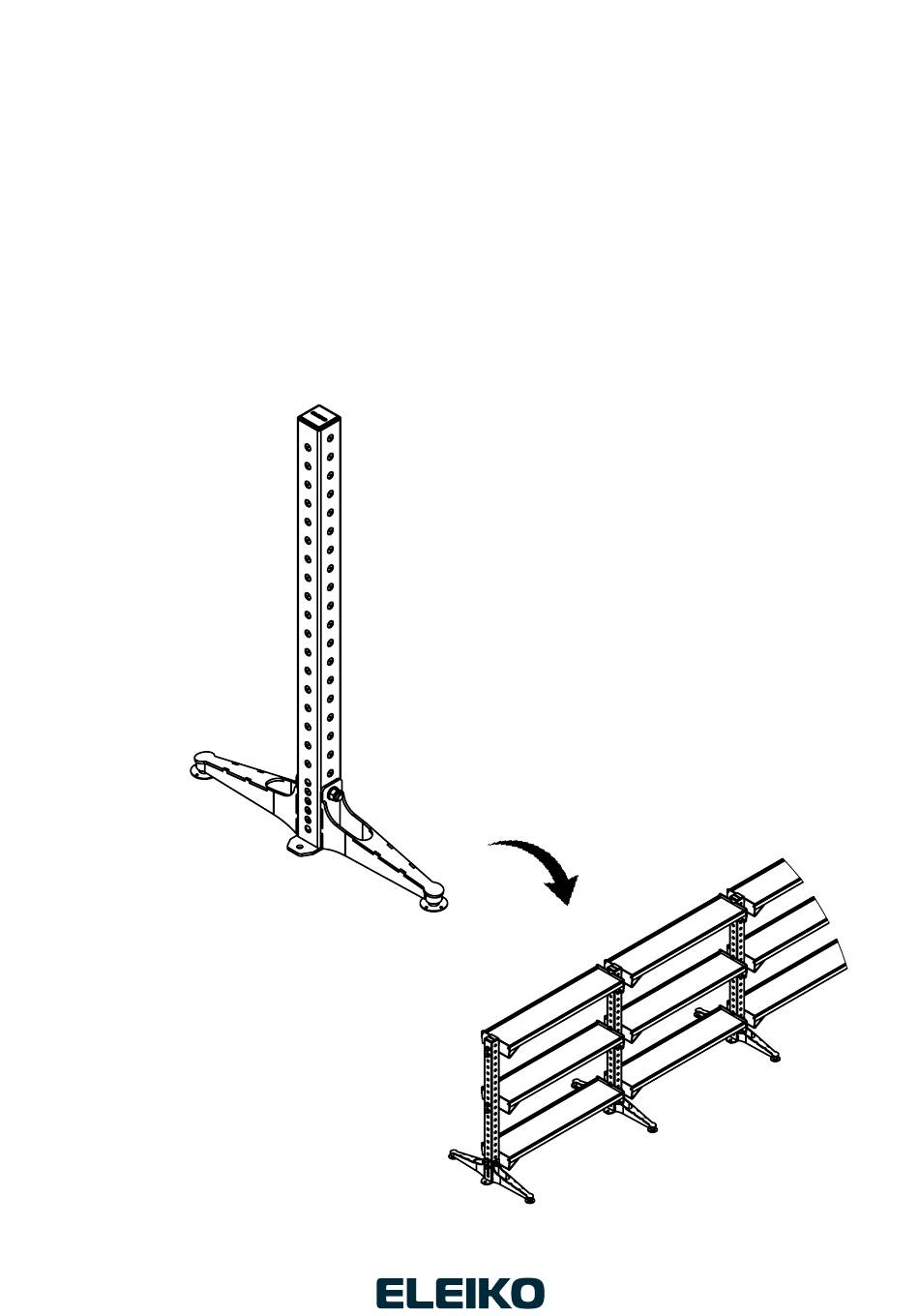

- Page 1 ELEIKO PRESTERA STORAGE LEG Art.no. BD-1-528, BD-1-529...
- Page 2 - X -...
-
Page 3: Table Of Contents
CONTENTS Read before installation and use Safety instructions Warning labels List of components Assembly instructions Tools needed User guide Purpose General instructions for use Product specifications Care and maintenance Preventive maintenance and inspections Spare parts and service Warranty... -
Page 4: Read Before Installation And Use
Install and use this equipment in a place where access and supervision are specifically controlled by the owner. Be sure to install the equipment on a stable base and level the equipment properly. Eleiko recommends that all equipment is installed by a licensed contractor or an Eleiko installer. -
Page 5: Warning Labels
WARNING LABELS - 4 -... -
Page 6: List Of Components
LIST OF COMPONENTS 2001373 2002168a1 2001385-L110 2001379 2001421 2001790 2001791 2001792 2002018 - 5 -... -
Page 7: Assembly Instructions
ASSEMBLY INSTRUCTIONS Before assembly, make sure you have enough clearance on all sides of the equipment. Take in account the accessibility to remove and replace equipment. TOOLS NEEDED You need the following tools to assemble the equipment. spanner 2x spanner size 13 size 24 NOTE: Do not use electric power tools for assembly. - Page 8 SOLID AND LEVEL GROUND Make sure the ground is solid and level. Take into account the heavy loads that will affect the flooring. It is recommended to bolt this product to ground. Consult a licensed contractor to choose the appropriate anchoring fasteners for your facility. See last page of assembly instructions for the anchoring points positions.
- Page 9 - 8 -...
- Page 10 - 9 -...
- Page 11 Make sure adjustable foot is screwed to bottom. - 10 -...
- Page 12 Add shelves of your choise. - 11 -...
- Page 13 Load with equipment. Adjust feet to make sections stable. Adjust with spanner to make the section stable. spanner - 12 - size 13...
-
Page 14: User Guide
USER GUIDE PURPOSE A storage solution for training equipment, like dumbbells, kettlebells etc. Storage legs can be combined with different types and numbers of shelves, and different heights of storage legs. See web page for more examples. Please note that maximum total weight per section, between two legs, are 500 kg. GENERAL INSTRUCTIONS FOR USE Make sure the floor is solid and level. -
Page 15: Care And Maintenance
WARRANTY All products manufactured by ELEIKO are warranted to the original purchaser to be free from defects in workmanship and / or materials under normal use or service as follows: · 10 years on structural frame welds (NOT on moving parts). - Page 16 Eleiko Group AB | Klastorpsvägen 18 | SE-302 62 HALMSTAD | Sweden E-mail: info@eleiko.com | Phone: +46 35 17 70 70 www.eleiko.com...
