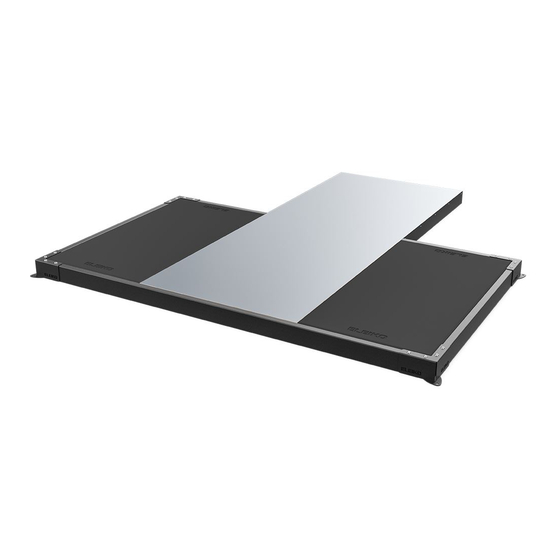

ELEIKO SVR PLATFORM
Classic Line - small
Art.no. 3061381

Advertisement

loading
Need help?

Need help?

Do you have a question about the Classic Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Eleiko Classic Series

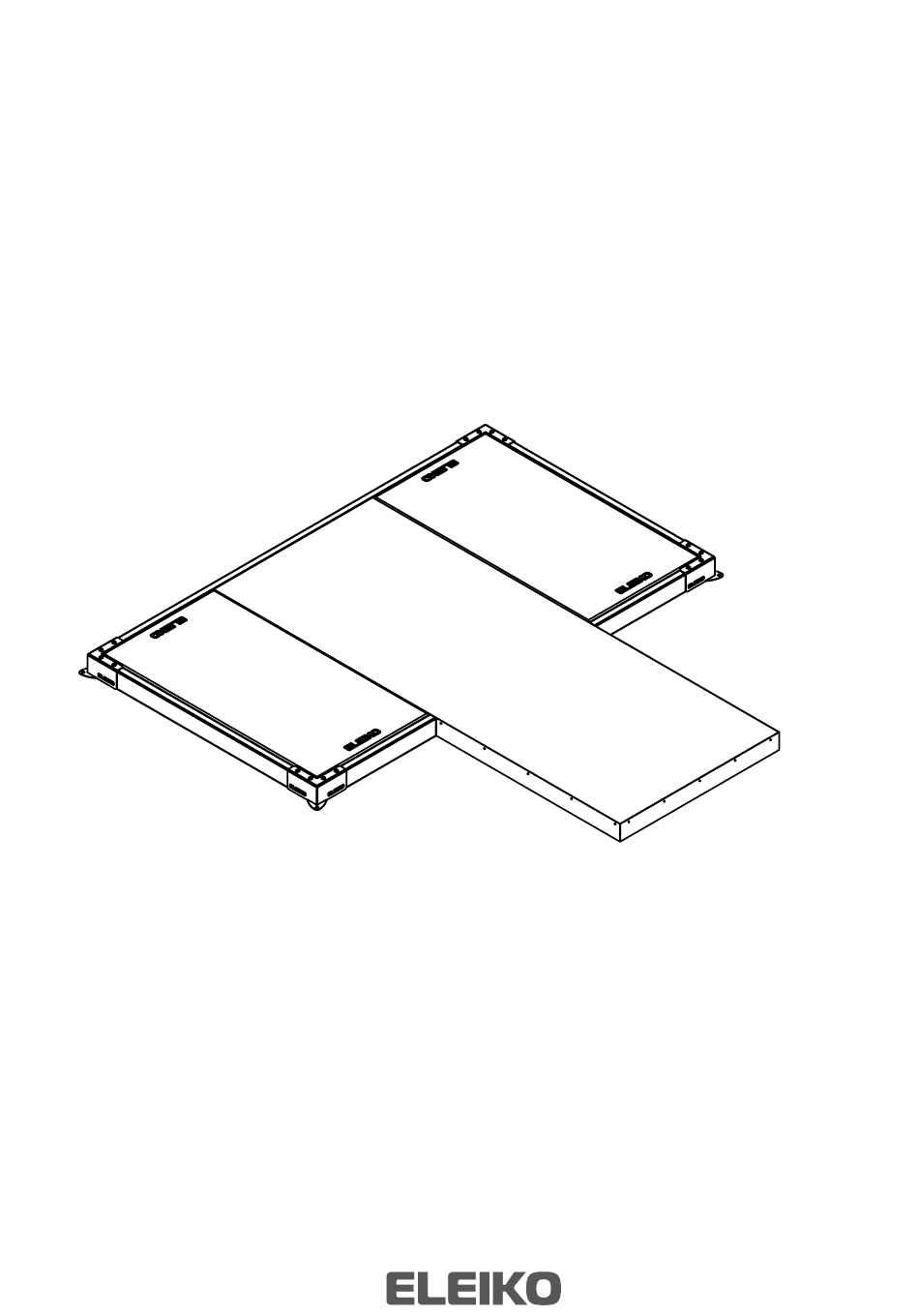

  • Page 1 ELEIKO SVR PLATFORM Classic Line - small Art.no. 3061381...
  • Page 3 Attach the corners to floor with appropriate fasteners. SAFETY INSTRUCTIONS It is the responibility of the purchaser of ELEIKO products to instruct all users and supervising personnel on proper usage of the equipment. 1. All included warnings (labels) and instructions MUST be read before the use of any ELEIKO-equipment.
  • Page 4: Product Specification

    PRODUCT SPECIFICATION Weightlifting training platform. For indoor use only. Product weight 276 kg / 608 lbs 2565x2470x100 mm Dimensions (L x W x H) 101x97.2x3.9 in FOOTPRINT AND FREE AREA Add sufficient clearance, not less than 1.5 m (59 in), on all sides.
  • Page 5 CONTENTS 3001400 Foam 2000x975x70 mm wooden plate Foam YELLOW Foam 666x695x70 mm Foam 500x975x70 mm 666x695x12,7 mm insert cover front Art.no: 2000803 rubber tile insert cover side tube back tube side front tube Art.no: 2000675-L16 SS Art.no: 2000726 corner Wood screw 4x35 screw M10x16 bracket...
  • Page 6: Required Tools

    REQUIRED TOOLS...
  • Page 7 ASSEMBLY INSTRUCTIONS corner bracket screw M10x16 Loose screws!
  • Page 8 Foam 2000x975x70 mm front tube Foam 500x975x70 mm...
  • Page 9 Foam Foam YELLOW 666x695x70 mm 666x695x12,7 mm...
  • Page 10 3001400 2000803 wooden plate rubber tile...
  • Page 11 side tube back tube corner assys...
  • Page 12 Tighten frame and screws!
  • Page 13 insert cover wood screw insert cover front L=35 side...
  • Page 16 Eleiko Group AB | Klastorpsvägen 18 | SE-302 62 HALMSTAD | Sweden E-mail: info@eleiko.com | Phone: +46 35 17 70 70 www.eleiko.com...
