Eleiko 3085601 Instruction Manual

Prestera cable attachment
Hide thumbs Also See for 3085601:
Table of Contents

Advertisement

Quick Links

Download this manual

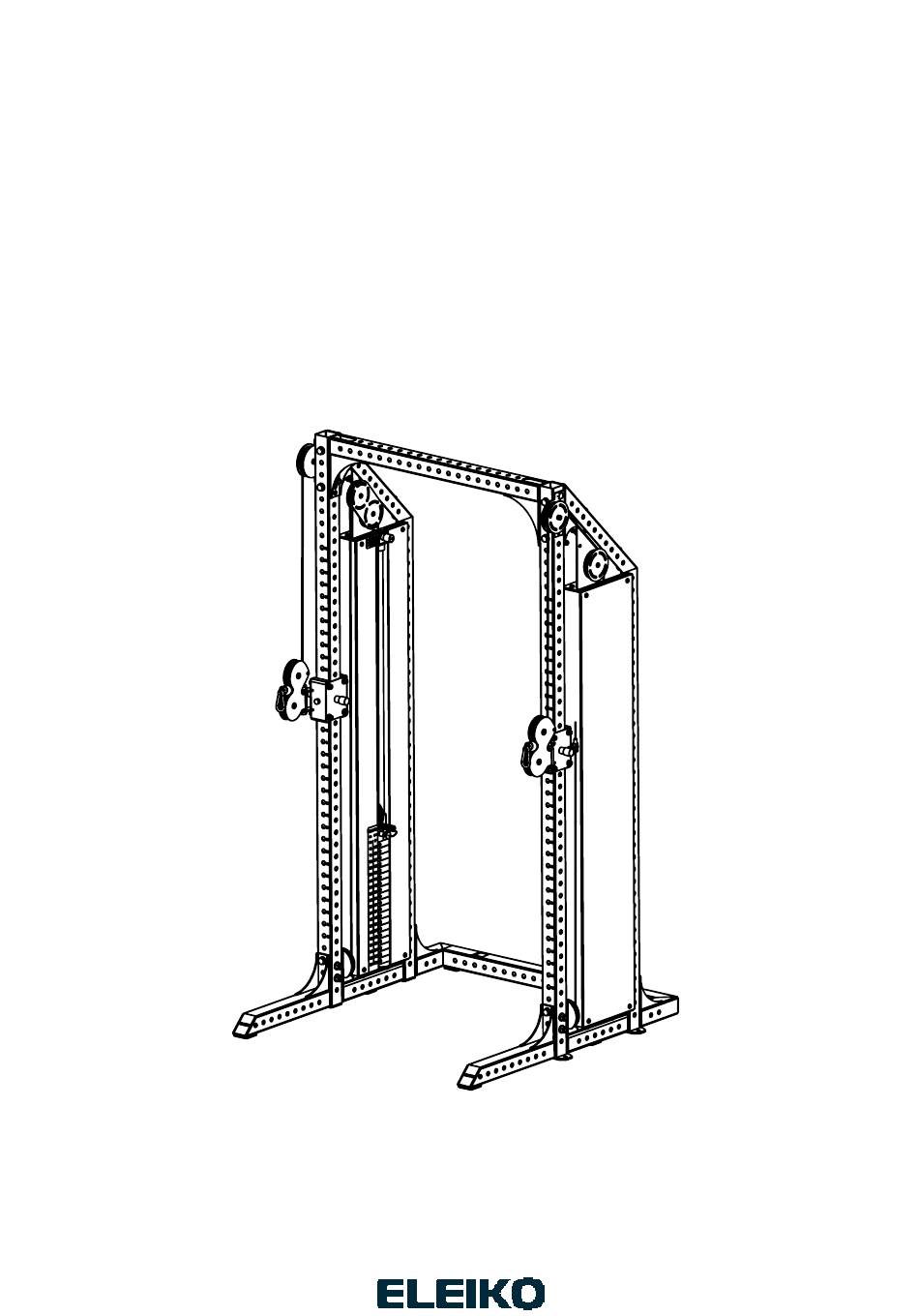

ELEIKO PRESTERA
CABLE ATTACHMENT
Art.no. 3085601

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3085601 and is the answer not in the manual?

Questions and answers

Related Manuals for Eleiko 3085601

Summary of Contents for Eleiko 3085601

  • Page 1 ELEIKO PRESTERA CABLE ATTACHMENT Art.no. 3085601...

  • Page 2: Table Of Contents

    CONTENTS Read before installation and use Safety instructions Warning labels Assembly instructions - General Tools needed Assembly instructions - Left side List of components Assembly instructions - Right side 34-35 List of components User guide Purpose General instructions for use Product specifications Care and maintenance Preventive maintenance and inspections...

  • Page 3: Read Before Installation And Use

    Install and use this equipment in a place where access and supervision are specifically controlled by the owner. Be sure to install the equipment on a stable base and level the equipment properly. Eleiko recommends that all equipment is installed by a licensed contractor or an Eleiko installer.

  • Page 4: Warning Labels

    WARNING LABELS Pinch point - 4 -...

  • Page 5: Assembly Instructions - General

    ASSEMBLY INSTRUCTIONS Before assembly, make sure you have enough clearance on all sides of the equipment, not less than 0,6 meters. Take in account the accessibility to remove and replace bar and weights. 1,5 m 1,5 m TOOLS NEEDED You need the following tools to assemble the equipment. Socket Wrench Size 24mm Wrench Size 24mm Wrench Size 17mm...

  • Page 6: Assembly Instructions - Left Side

    ASSEMMBLY INSTRUCTIONS LEFT SIDE ASSEMBLY INSTRUCTIONS FOR THE RIGHT SIDE CAN BE FOUND ON PAGE 33 - 6 -...

  • Page 7: List Of Components

    LIST OF COMPONENTS 3085570 p29 3000147 3000146 2001615 3085601 p3 3085601 p11 3085601 p25 CABLE 3085601 a7 3085601 a8 3085601 a9 3085601 a6 3085601 a3 3085601 a1 3085601 a2 2001590 2001592 - 7 -...
  • Page 8 LIST OF COMPONENTS 2001482 3085570 p36 2001482 3085601 p15 2001619-L45 2001619-L45 Double Wheel Kit Single Wheel Kit 3085601 p8 3085570 p33 3085601 p9 3085570 p34 2001483 3060377 2001000 3061757 p30 3085601 p6 FOR ELEIKO PRESTERA 2001485 STORAGE PINS 2000780-M12 K6S M8 x 30...
  • Page 9 IF YOU HAVE ALSO PURCHASED A SVR INSERT PLATFORM, INSTALL THE PLATFORM FIRST! BEFORE YOU START THIS ASSEMBLY, REMOVE EVENTUAL GLIDING J-CUPS AND/OR GLIDING SAFETY ARMS! ALSO REMOVE THE RUBBER DAMPERS IF YOU HAVE ELEIKO PRESTERA STORAGE PINS, SAVE THESE FOR LATER! - 9 -...
  • Page 10 REMOVE FLOOR BEAM AND SAVE ALL SCREWS! YOU WILL NOT NEED THE FLOOR BEAM ANYMORE! - 10 -...
  • Page 11 2001592 REMOVE TOP COVER PLATE! YOU WILL NOT NEED SCREWS AND COVER PLATE ANYMORE. SAVE THE PARTS IN CASE YOU REMOVE THE CABLE RACK IN THE FUTURE! - 11 -...
  • Page 12 ONLY FOR DOUBLE HALF RACK WITH TWO CABLE ATTACHMENTS, FRONT AND BACK M16 x 100 Nut M16 MOUNT THE NEW FLOOR BEAM! USE THE SCREWS FROM STEP 1! IF YOU HAVE A DOUBLE HALF RACK AND PLAN TO HAVE TWO CABLE ATTACHMENTS, FRONT AND BACK, CHANGE THIS SCREW TO A M16x100.
  • Page 13 Washer M8 3085601 p8 K6S M8 x 12 - 13 -...
  • Page 14 M16 x 100 3085601 a8 Washer M16 Locking Nut M16 - 14 -...
  • Page 15 3085601 a7 M16 x 100 Locking Nut M16 Washer M16 - 15 -...
  • Page 16 3085570 p33 3085601 p3 3085570 p34 - 16 -...
  • Page 17 PLACE RODS IN TILTED POSITION IN THESE HOLES. RUBBER DAMPERS AND DISTANCE PLATES DOWN! WIPE OFF BOTH RODS WITH A CLEAN CLOTH! - 17 -...
  • Page 18 2001590 ASSEMBLE THE WEIGHT STACK PLATE BY PLATE! MAKE SURE THE FIRST PLATE IS PUSHED ALL THE WAY DOWN AND LOCKED IN POSITION! - 18 -...
  • Page 19 3085601 a1 - 19 -...
  • Page 20 3085601 p9 3085601 a2 MOUNT TOP WEIGHT AND PLASTIC TOP SUSPENSION! PUSH TO VERTICAL POSITION! TOP WEIGHT AND PLASTIC TOP SUPENSION MUST BE TURNED THIS WAY! - 20 -...
  • Page 21 3085601 p6 K6S M8 x 30 K6S M8 x 12 Washer M8 PLASTIC TOP SUSPENSION FROM PREVIOUS STEP! M8 x 30 3085601 p6 THE WEIGHT INCREMENT CAN NOW BE SECURED IN A TOP POSITION WITH HELP OF THE POP-PIN! - 21 -...
  • Page 22 Single Wheel Kit Double Wheel Kit UNSCREW NUTS AND MOUNT BOTH WHEEL KITS! - 22 -...
  • Page 23 3085601 a9 MOUNT THE TOP WHEEL ONE SCREW AT THE TIME! START WITH THE TOP ONE! USE EXISTING SCREW WITHOUT WASHERS ON THIS SIDE! USE EXISTING SCREW WITHOUT WASHERS ON THIS SIDE! - 23 -...
  • Page 24 3085601 a3 REMOVE PLATE AND REASSEMBLE ON UPRIGHT! BE CAREFUL NOT TO LET ANY PARTS FALL OUT! MAKE SURE THE SCREWS ARE NOT TOO TIGHT! CARRIAGE SHOULD BE EASY TO ADJUST IN HEIGHT! - 24 -...
  • Page 25 M16 x 110 Locking Nut M16 3085601 a6 2001000 Washer M16 - 25 -...
  • Page 26 Hollow Screw UNSCREW NUT AND MOUNT ON CARRIAGE! SCREW SHOULD BE AS FAR DOWN AS POSSIBLE! TENSION IN THE CABLE CAN LATER BE ADJUSTED BY MOVING THE SCREW UPWARDS! - 26 -...
  • Page 27 18a. CABLE Step 1 Step 2 LET CABLE PASS INSIDE THIS SCREW! Step 3 - 27 -...
  • Page 28 18b. 3060377 Step 5 Step 4 Step 6 MAKE SURE THE CABLE IS TIGHT BY PULLING ITS END. LET THE CABLE PASS THROUGH THE HOLLOW SREW BEFORE FIXING IT WITH THE CABLE END! CUT OFF LEFTOVERS FROM CABLE! 3060377 - 28 -...
  • Page 29 3085601 p25 K6S M8 x 12 Washer M8 WIPE OFF BOTH RODS AGAIN WITH A CLEAN CLOTH BEFORE MOUNTING COVER PLATE! - 29 -...
  • Page 30 2001483 SECURE SELECTOR PIN BY THREADING THE METAL RING INTO THE RIGHT HOLE! - 30 -...
  • Page 31 K6S M8 x 12 Washer M8 3085601 p11 NUMBERS TO THE LEFT OF THE WEIGHT STACK! - 31 -...
  • Page 32 3061757 p30 THIS STEP IS ONLY IF YOU HAVE ELEIKO PRESTERA STORAGE PINS! LARGE ENDS AGAINST EACH OTHER! - 32 -...

  • Page 33: Assembly Instructions - Right Side

    ASSEMMBLY INSTRUCTIONS RIGHT SIDE ASSEMBLY INSTRUCTIONS FOR THE LEFT SIDE CAN BE FOUND ON PAGE 6 - 33 -...
  • Page 34 LIST OF COMPONENTS 3085570 p29 3000147 3000146 2001615 3085601 p3 3085601 p11 3085601 p25 CABLE 3085601 a7 3085601 a8 3085601 a9 3085601 a6 3085601 a3 3085601 a1 3085601 a2 2001590 2001592 - 34 -...
  • Page 35 LIST OF COMPONENTS 2001482 3085570 p36 2001482 3085601 p15 2001619-L45 2001619-L45 Double Wheel Kit Single Wheel Kit 3085601 p8 3085570 p33 3085601 p9 3085570 p34 2001483 3060377 2001000 3061757 p30 3085601 p6 FOR ELEIKO PRESTERA 2001485 STORAGE PINS 2000780-M12 K6S M8 x 30...
  • Page 36 IF YOU HAVE ALSO PURCHASED A SVR INSERT PLATFORM, INSTALL THE PLATFORM FIRST! BEFORE YOU START THIS ASSEMBLY, REMOVE EVENTUAL GLIDING J-CUPS AND/OR GLIDING SAFETY ARMS! ALSO REMOVE THE RUBBER DAMPERS IF YOU HAVE ELEIKO PRESTERA STORAGE PINS, SAVE THESE FOR LATER! - 36-...
  • Page 37 REMOVE FLOOR BEAM AND SAVE ALL SCREWS! YOU WILL NOT NEED THE FLOOR BEAM ANYMORE! - 37 -...
  • Page 38 2001592 REMOVE TOP COVER PLATE! YOU WILL NOT NEED SCREWS AND COVER PLATE ANYMORE. SAVE THE PARTS IN CASE YOU REMOVE THE CABLE RACK IN THE FUTURE! - 38 -...
  • Page 39 ONLY FOR DOUBLE HALF RACK WITH TWO CABLE ATTACHMENTS, FRONT AND BACK Nut M16 M16 x 100 MOUNT THE NEW FLOOR BEAM! USE THE SCREWS FROM STEP 1! IF YOU HAVE A DOUBLE HALF RACK AND PLAN TO HAVE TWO CABLE ATTACHMENTS, FRONT AND BACK, CHANGE THIS SCREW TO A M16x100.
  • Page 40 Washer M8 3085601 p8 K6S M8 x 12 - 40 -...
  • Page 41 M16 x 100 3085601 a8 Washer M16 Locking Nut M16 - 41 -...
  • Page 42 3085601 a7 M16 x 100 Locking Nut M16 Washer M16 - 42 -...
  • Page 43 3085570 p33 3085601 p3 3085570 p34 - 43 -...
  • Page 44 PLACE RODS IN TILTED POSITION IN THESE HOLES. RUBBER DAMPERS AND DISTANCE PLATES DOWN! WIPE OFF BOTH RODS WITH A CLEAN CLOTH! - 44 -...
  • Page 45 2001590 ASSEMBLE THE WEIGHT STACK PLATE BY PLATE! MAKE SURE THE FIRST PLATE IS PUSHED ALL THE WAY DOWN AND LOCKED IN POSITION! - 44 -...
  • Page 46 3085601 a1 - 46 -...
  • Page 47 3085601 p9 3085601 a2 MOUNT TOP WEIGHT AND PLASTIC TOP SUSPENSION! PUSH TO VERTICAL POSITION! TOP WEIGHT AND PLASTIC TOP SUPENSION MUST BE TURNED THIS WAY! - 47 -...
  • Page 48 3085601 p6 K6S M8 x 30 K6S M8 x 12 Washer M8 PLASTIC TOP SUSPENSION FROM PREVIOUS STEP! M8 x 30 3085601 p6 THE WEIGHT INCREMENT CAN NOW BE SECURED IN A TOP POSITION WITH HELP OF THE POP-PIN! - 48 -...
  • Page 49 Double Wheel Kit Single Wheel Kit UNSCREW NUTS AND MOUNT BOTH WHEEL KITS! - 49 -...
  • Page 50 3085601 a9 MOUNT THE TOP WHEEL ONE SCREW AT THE TIME! START WITH THE TOP ONE! USE EXISTING SCREW WITHOUT WASHERS ON THIS SIDE! USE EXISTING SCREW WITHOUT WASHERS ON THIS SIDE! - 50 -...
  • Page 51 3085601 a3 REMOVE PLATE AND REASSEMBLE ON UPRIGHT! BE CAREFUL NOT TO LET ANY PARTS FALL OUT! MAKE SURE THE SCREWS ARE NOT TOO TIGHT! CARRIAGE SHOULD BE EASY TO ADJUST IN HEIGHT! - 51 -...
  • Page 52 M16 x 110 Locking Nut M16 3085601 a6 2001000 Washer M16 - 52 -...
  • Page 53 Hollow Screw UNSCREW NUT AND MOUNT ON CARRIAGE! SCREW SHOULD BE AS FAR DOWN AS POSSIBLE! TENSION IN THE CABLE CAN LATER BE ADJUSTED BY MOVING THE SCREW UPWARDS! - 53 -...
  • Page 54 18a. CABLE Step 2 Step 1 LET CABLE PASS INSIDE THIS SCREW! Step 3 - 54 -...
  • Page 55 18b. 3060377 Step 5 Step 4 Step 6 MAKE SURE THE CABLE IS TIGHT BY PULLING ITS END. LET THE CABLE PASS THROUGH THE HOLLOW SREW BEFORE FIXING IT WITH THE CABLE END! CUT OFF LEFTOVERS FROM CABLE! 3060377 - 55 -...
  • Page 56 3085601 p25 K6S M8 x 12 Washer M8 WIPE OFF BOTH RODS AGAIN WITH A CLEAN CLOTH BEFORE MOUNTING COVER PLATE! - 56 -...
  • Page 57 2001483 SECURE SELECTOR PIN BY THREADING THE METAL RING INTO THE LEFT HOLE! - 57 -...
  • Page 58 K6S M8 x 12 Washer M8 3085601 p11 NUMBERS TO THE LEFT OF THE WEIGHT STACK! - 58 -...
  • Page 59 3061757 p30 THIS STEP IS ONLY IF YOU HAVE ELEIKO PRESTERA STORAGE PINS! LARGE ENDS AGAINST EACH OTHER! - 59 -...

  • Page 60: User Guide

    USER GUIDE PURPOSE Cable attachment that enables a variety of exercises in a Eleiko Prestera Rack. GENERAL INSTRUCTIONS FOR USE Use the selector pin to select training weight. Adjust height on carriage by pulling the pop-pin. Switch to different handles depending on exercise.

  • Page 61: Care And Maintenance

    E-mail: info@eleiko.com | Phone: +46 35 17 70 70 www.eleiko.com WARRANTY All products manufactured by ELEIKO are warranted to the original purchaser to be free from defects in workmanship and / or materials under normal use or service as follows: · 5 years on structural moving parts.
  • Page 64 Eleiko Group AB | Klastorpsvägen 18 | SE-302 62 HALMSTAD | Sweden E-mail: info@eleiko.com | Phone: +46 35 17 70 70 www.eleiko.com...
