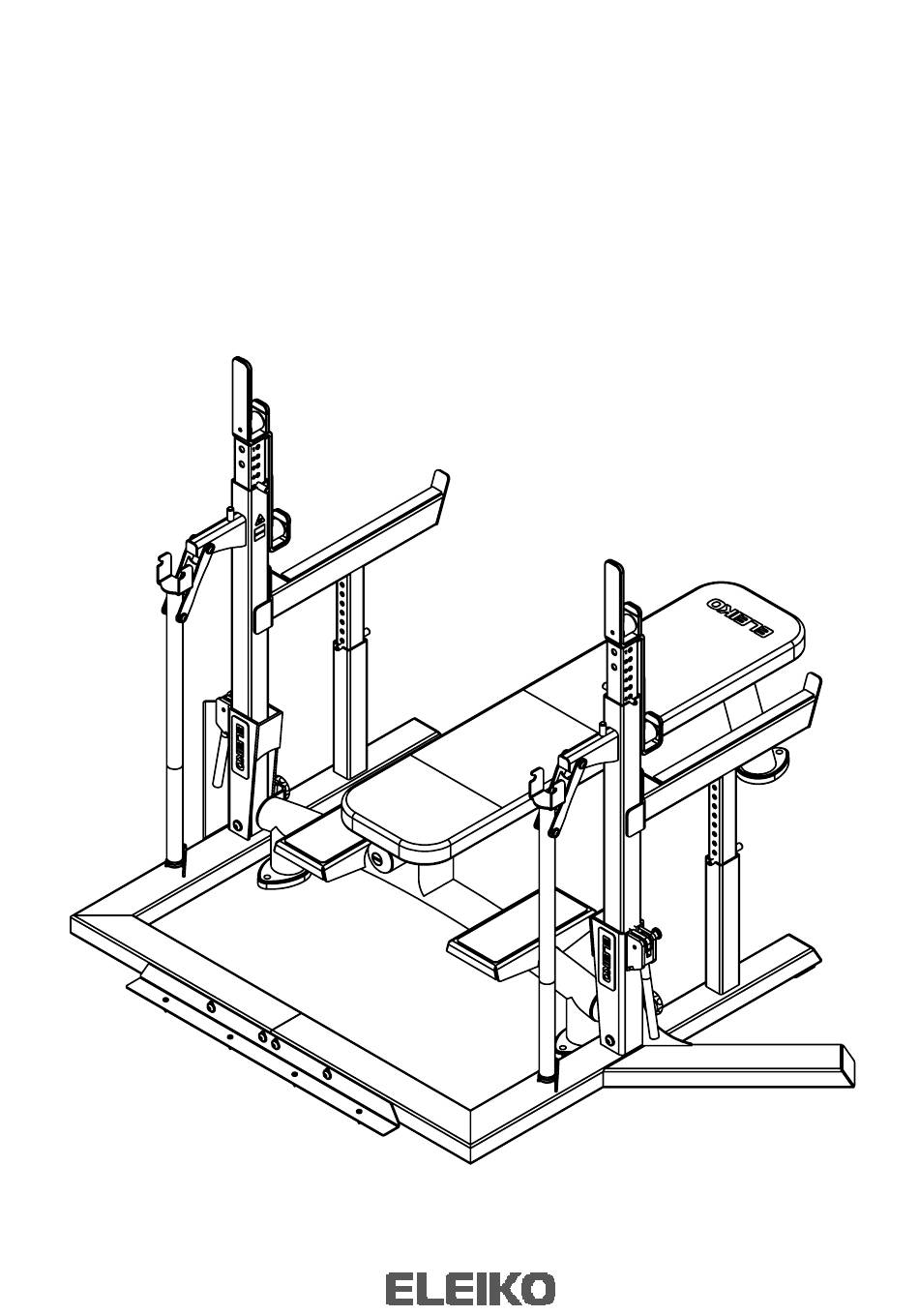

- Page 1 Eleiko Powerlifting Squat Stand/Bench Combo Art.no. 3085245-060...
-
Page 2: Safety Instructions
7. DO NOT remove any safety labels from the ELEIKO-equipment. ELEIKO is not responsible if a label is removed. Replace damaged labels immediately. 8. Eleiko package for products can be made of wood, be aware of splinters, MUST use gloves and proper work wear. -
Page 3: Product Specifications
PRODUCT SPECIFICATIONS Eleiko Powerlifting Squat Stand/Bench Combo is used for IPF powerlifting competitions and training. Bench press and squat are the two exercises it is made for. To change height of uprights and safety arms, make sure no person is under or close to the bar, lift the upright or safety arm up and place the pin in correct hole, make sure to insert the pin properly. - Page 4 CONTENTS Left side base Right side base Barbell support 3085120A55 3085120A56 3085221 Sheet metal Base for upholstry Assembly section Safety arm 3085120A57 3085120p162 3085120A31 3085120A07 Front support Left side safety base Right side safety base 3085120A58 3085120A27 3085120A34 Upholstry Aluminiu knob 2000799 2000839 3085120A20...
-
Page 5: Required Tools
REQUIRED TOOLS Hex key Hex key Hex key Screw driver 6 mm 8 mm 5 mm Philipps Would not recommend electric power tools for assembly. GENERAL The table below is general torque to use for different threads. Use these torques, if nothing else is set. Below numbers are for screw/nut of quality 8.8. -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS Right side base Assembly section Left side base 3085120A56 3085120A31 3085120A55 Sheet metal Screw M10x30 Washer 3085120p162 2000675-L30 2000719... - Page 7 Front support Base for upholstry 3085120A58 3085120A57 Upholstry 2000839 Screw M8x16 Screw M12x25 2000747-L16 2000743-L25 Use your fingers to fit the M8 Screws and no power tool to tighten Make sure feets are in opposite direction!
- Page 8 Aluminiu knob Right side safety base Left side safety base 3085120A20 3085120A34 3085120A27...
- Page 9 Barbell support Safety arm 3085221 3085120A07 RXS 5,5x32 2000799 2000855-L32...
- Page 10 Tighten all screws properly For safe use, be certain pin is properly inserted before load bar on bench.
- Page 11 Eleiko Powerlifting Squat Stand/Bench Combo is used for IPF powerlifting competitions and training. Bench press and squat are the two exercises it is made for. User Manual 1. Adjust uprights and safety arms: To change height of uprights and safety arms, make sure no person is under or close to the bar, lift the upright or safety arm up and place the pin in correct hole, make sure to insert the pin properly.
- Page 12 Eleiko Group AB | Klastorpsvägen 18 | SE-302 62 HALMSTAD | Sweden E-mail: info@eleiko.com | Phone: +46 35 17 70 70 www.eleiko.com...
