Summary of Contents for Eleiko XF80 Home Rack

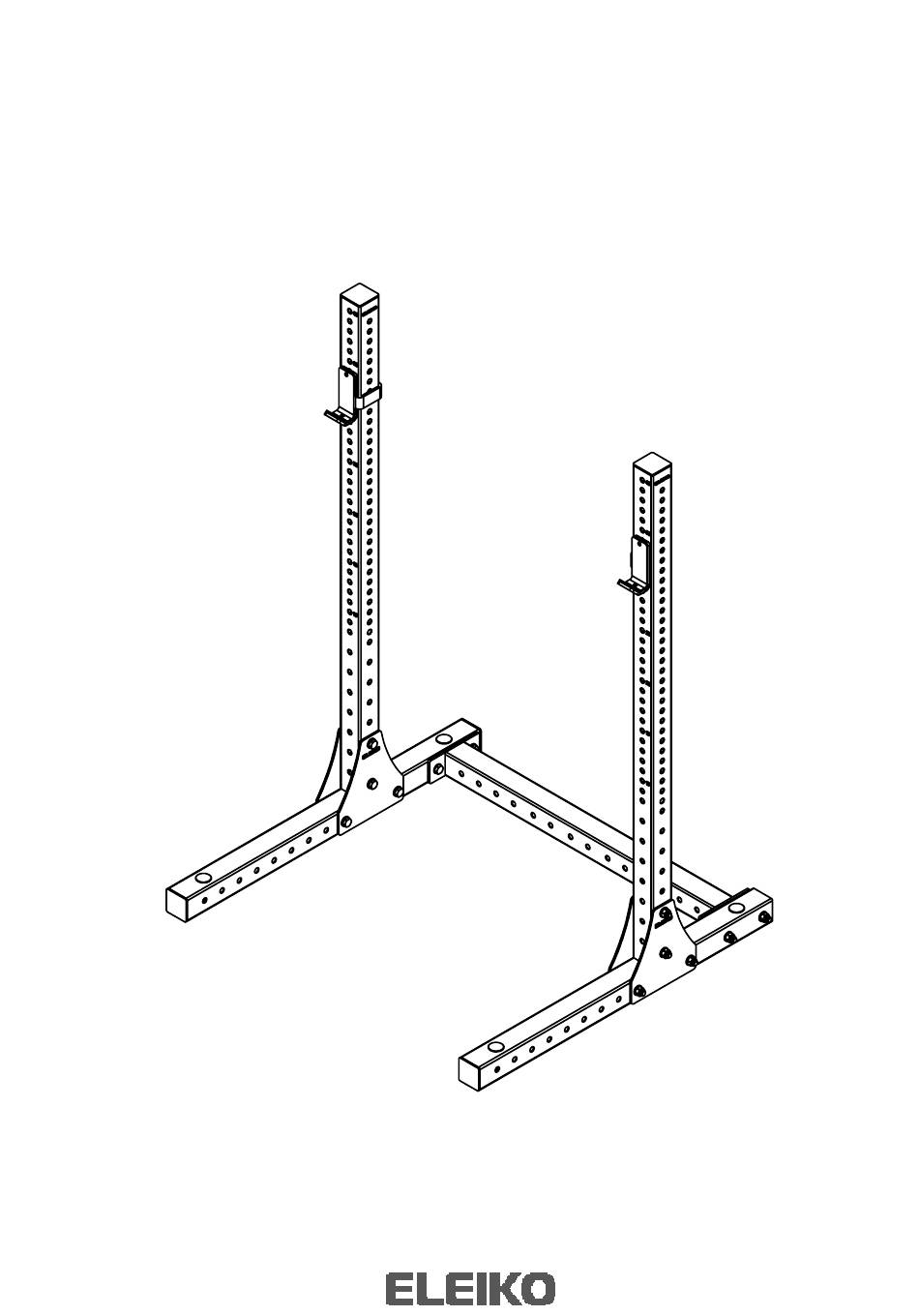

- Page 1 XF80 Home Rack Art.no. 3085341...
- Page 2 ELEIKO-installer. SAFETY INSTRUCTIONS It is the responibility of the purchaser of ELEIKO products to instruct all users and supervising personnel on proper usage of the equipment. 1. All included warnings (labels) and instructions MUST be read before the use of any ELEIKO-equipment.
- Page 3 PRODUCT SPECIFICATIONS Product weight 60,8 kg / 134 lbs Max user weight 150 kg / 330 lbs Max training weight 350 Kg/ 441 lbs 1190x1257x1803 / Dimensions (L x W x H) 46,8"x52"x71" FOOTPRINT AREA 1257 1062...
- Page 4 CONTENTS Rack floor beam 80x80x3 L=1180 Rack leg, 80x80x3, L=1718 3085343 3085342 Eleiko Squat stand plate 285x260x6 XF 80 beam L=1100 3085356p1 3003144 80 J-Cup 80 J-cup M6S M16x120 din 931 black 3003125 L 3003125 R 3050451-03 BRB M16 Washer - 17x30x3, Black...
- Page 5 REQUIRED TOOLS Socket 24 mm- 1/2 Spanner 24 mm Wrench socket 1/2 GENERAL The table below is torque Use these torques, if nothing else is set. Below numbers are for screw/nut of quality 8.8. TORQUE (Nm / ftlb) THREAD Quality 8.8 197 / 145,3...
- Page 6 ASSEMBLY INSTRUCTIONS BRB M16 Washer - 17x30x3, Black XF 80 beam L=1100 Rack floor beam 80x80x3 L=1180 3050453-03 3003144 3085342 Wrench socket 1/2 M6S M16x120 din 931 black M6M M16 Nut - Self-locking, Black 3050451-03 3085341 Spanner 24 mm Socket 24 mm- 1/2 Torque 40 Nm Torque 40 Nm...
- Page 7 M6S M16x120 din 931 black Eleiko Squat stand plate 285x260x6 Rack leg, 80x80x3, L=1718 3085356p1 3050451-03 3085343 BRB M16 Washer - 17x30x3, Black M6M M16 Nut - Self-locking, Black Wrench socket 1/2 3085341 3050453-03 Spanner 24 mm Socket 24 mm- 1/2...
- Page 8 80 J-Cup 80 J-cup 3003125 L 3003125 R Anhoring holes: Screw (x4) d=12xL=65 Not included...
- Page 9 Usage 1. Apply J cups in correct height 2. Place the bar in J cups 3. Add weight equally 3. Add collars Do your exercises 3. Place the bar back on J cups 4. Unload the bar from collars and discs...
- Page 10 Eleiko Group AB | Klastorpsvägen 18 | SE-302 62 HALMSTAD | Sweden E-mail: info@eleiko.com | Phone: +46 35 17 70 70 www.eleiko.com...
