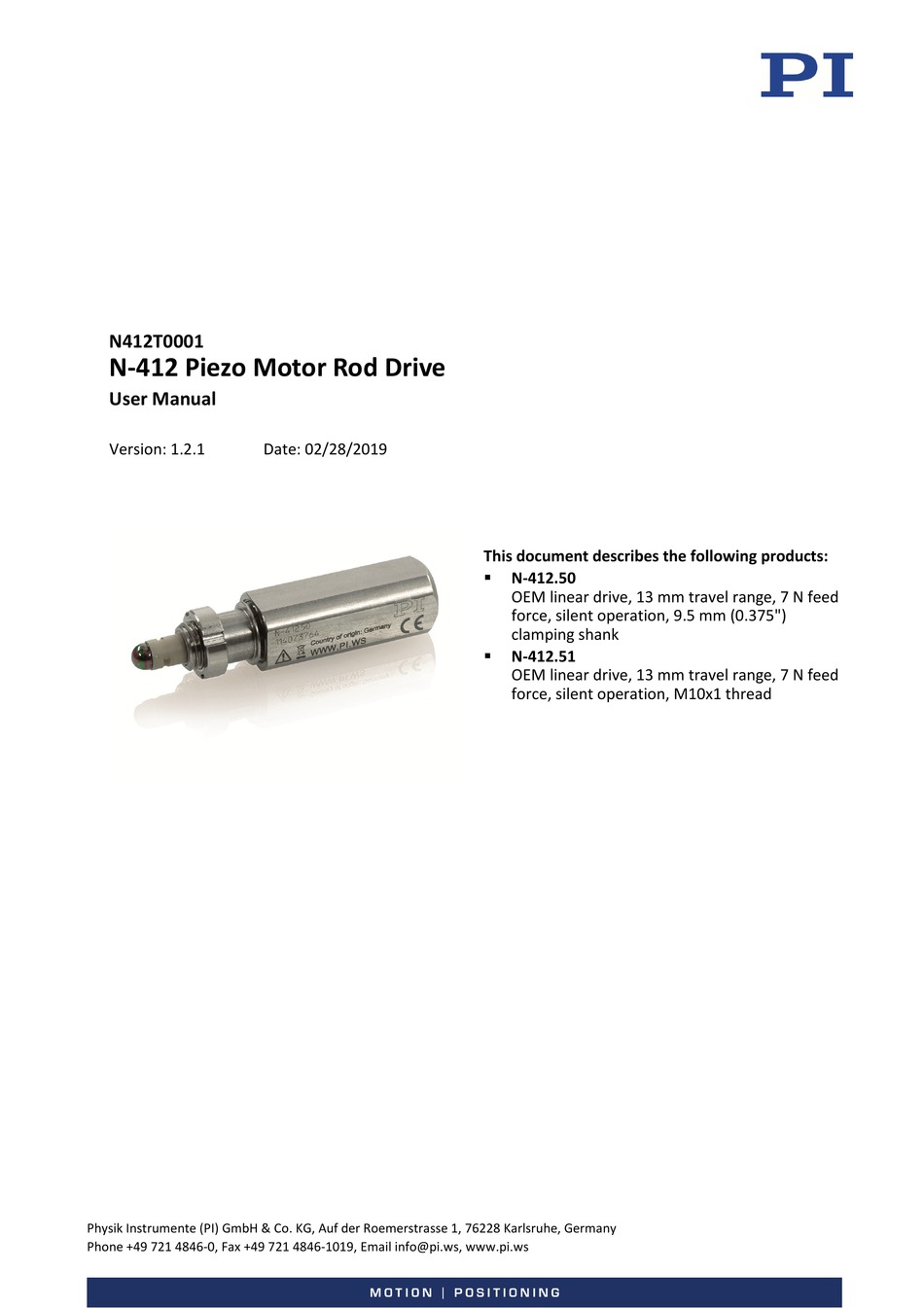

N-412 Piezo Motor Rod Drive
User Manual
Version: 1.2.1
Physik Instrumente (PI) GmbH & Co. KG, Auf der Roemerstrasse 1, 76228 Karlsruhe, Germany
Phone +49 721 4846-0, Fax +49 721 4846-1019, Email info@pi.ws, www.pi.ws
Date: 02/28/2019
This document describes the following products:
N-412.50
OEM linear drive, 13 mm travel range, 7 N feed
force, silent operation, 9.5 mm (0.375")
clamping shank
N-412.51
OEM linear drive, 13 mm travel range, 7 N feed
force, silent operation, M10x1 thread

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N-412 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PI N-412

  • Page 1 OEM linear drive, 13 mm travel range, 7 N feed force, silent operation, M10x1 thread Physik Instrumente (PI) GmbH & Co. KG, Auf der Roemerstrasse 1, 76228 Karlsruhe, Germany Phone +49 721 4846-0, Fax +49 721 4846-1019, Email info@pi.ws, www.pi.ws...
  • Page 2 Nanoautomation®, NEXSHIFT, PicoCube, PiezoMove, PIMikroMove, PIMag®. © 2019 Physik Instrumente (PI) GmbH & Co. KG, Karlsruhe, Germany. The text, photographs and drawings in this manual are protected by copyright. With regard thereto, Physik Instrumente (PI) GmbH & Co. KG retains all the rights.
  • Page 3: Table Of Contents

    Installing an N-412.51 (with mounting thread) ............15 Startup and Operation General Notes on Startup and Operation ..............15 Starting Up the N-412 with the E-872.401 Drive Electronics ........17 Operating Parameters of the N-412 ................. 17 Maintenance Cleaning the N-412 ....................18...
  • Page 4 Troubleshooting Customer Service Technical Data 10.1 Specifications ......................20 10.1.1 Data Table ....................20 10.1.2 Maximum Ratings ..................21 10.1.3 Ambient Conditions and Classifications ............21 10.2 Drive Performance ....................22 10.3 Lifetime ........................22 10.4 Dimensions ....................... 23 10.5 Pin Assignment ......................24 Old Equipment Disposal EU Declaration of Conformity...
  • Page 5: About This Document

    About this Document Objective and Target Audience of this User Manual This user manual contains the information necessary for the intended use of the N-412. It assumes that the reader has a fundamental understanding of basic servo systems as well as motion control concepts and applicable safety procedures.
  • Page 6: Figures

    Follow the link in the Release News. Enter the required information in the browser window. Click Show login data in the browser window. Note the user name and password shown in the browser window. N-412 Piezo Motor Rod Drive N412T0001 Version: 1.2.1...
  • Page 7: Safety

    Safety Intended Use The N-412 is a laboratory device as defined by DIN EN 61010-1. It is intended to be used in interior spaces and in an environment which is free of dirt, oil, and lubricants. The N-412 is a linear drive for integration in motion systems that are used for positioning, adjustment and motion of an object (load) in one axis.
  • Page 8: General Safety Instructions

     Add all information from the manufacturer to the user manual, for example supplements or technical notes.  If you give the N-412 to other users, also include this user manual as well as other relevant information provided by the manufacturer.
  • Page 9: Product Description

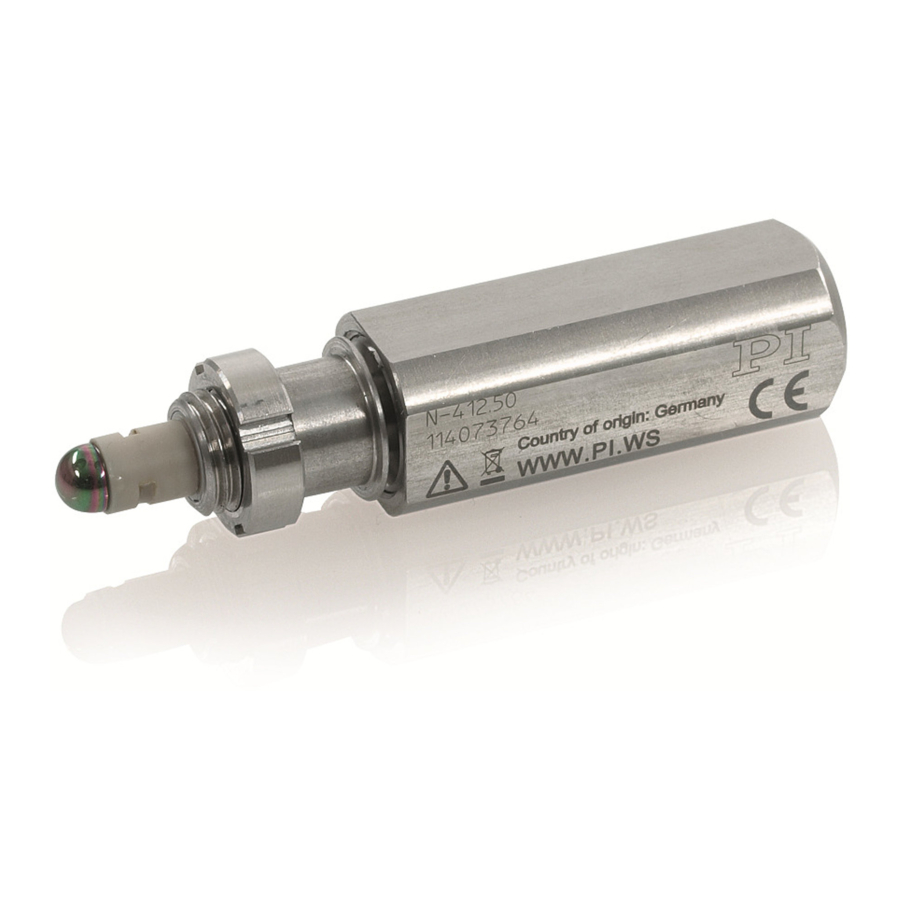

    N-412.51 OEM linear drive, 13 mm travel range, 7 N feed force, silent operation, M10x1 thread Product View Figure 1: N-412.50 product view 1 Base body 2 Clamping shank (9.5 mm diameter, 6 mm clamping width) 3 M9×1 mounting nut...
  • Page 10: Product Labeling

    Description N-412.50 Product number (example), the digits after the period refer to the model 123456789 Serial number (example), individual for each N-412 Meaning of the places (counting from left): 1 = internal information 2 and 3 = year of manufacture 4 to 9 = consecutive numbers Warning sign “Observe manual!”...
  • Page 11: Scope Of Delivery

    000049906 Hook wrench N412T0001 User manual for N-412 (this document in printed form) Suitable Electronics To operate the N-412, you need suitable drive electronics (not in the scope of delivery). The following drive electronics are available: Product number Description E-872.401 Q-Motion®...
  • Page 12: Installation

     Avoid lateral forces on the moving part and on the ball tip of the N-412.  Install the N-412 so that the moving part is aligned vertically to the contact surface of the moving part of the mechanical mounting.
  • Page 13: Installing The Linear Drive Onto A Mechanical Mounting And Connecting It To The Protective Earth Conductor

    N-412, let the drive dry before startup. INFORMATION When the N-412 is installed in a mechanical system that is to be operated in closed-loop mode, you need an external position sensor such as a linear encoder (not in the scope of delivery).
  • Page 14: Installing An N-412.50 (With Clamping Shank)

    2. Remove the mounting nut from the clamping shank of the N-412. 3. Position the N-412 in the mechanical mounting of your application. 4. Manually screw the mounting nut of the N-412 a few turns into the thread of the clamping shank.
  • Page 15: Installing An N-412.51 (With Mounting Thread)

    6 Startup and Operation Installing an N-412.51 (with mounting thread) 1. Screw the mounting nut of the N-412 as far as necessary in the direction of the base body of the N-412. 2. Optional: Apply a small amount of lubricant to the contact surface of the moving part of the mechanical mounting.
  • Page 16  Avoid lateral forces on the moving part and on the ball tip of the N-412.  Install the N-412 so that the moving part is aligned vertically to the contact surface of the moving part of the mechanical mounting.
  • Page 17: Starting Up The N-412 With The E-872.401 Drive Electronics

    6 Startup and Operation Starting Up the N-412 with the E-872.401 Drive Electronics Requirements  You have read and understood the general notes on startup and operation (p. 15).  The N-412 has been installed properly (p. 12).  The E-872.401 drive electronics have been properly installed and all connections on the E-872.401 have been set up.
  • Page 18: Maintenance

     You have disconnected the N-412 from the electronics. Cleaning the N-412  If necessary, clean the surfaces of the N-412 with a cloth that is dampened with a mild cleanser or disinfectant (e.g., alcohol or isopropyl alcohol). N-412 Piezo Motor Rod Drive N412T0001 Version: 1.2.1...
  • Page 19 (p. 19). Customer Service For inquiries and orders, contact your PI sales engineer or send us an email (service@pi.de).  If you have any questions concerning your system, provide the following information: −...
  • Page 20: Technical Data

    Mass with cable and ±10 % connector Cable length ±10 mm Connector LEMO, 3-pin LEMO, 3-pin Recommended electronics E-872.401 E-872.401 * Depending on the drive electronics ** Ceramic runner Ask about customized versions. N-412 Piezo Motor Rod Drive N412T0001 Version: 1.2.1...
  • Page 21: Maximum Ratings

    48 V 23 kHz 15 W 10.1.3 Ambient Conditions and Classifications The following ambient conditions and classifications must be observed for the N-412: Area of application For indoor use only Maximum altitude 2000 m Air pressure 1100 hPa to 0.1 hPa Relative humidity Highest relative humidity 80 % for temperatures up to 31 °C...
  • Page 22: Drive Performance

    Figure 3: Velocity vs. dynamic force (push/pull force) of the N-412 10.3 Lifetime The N-412 can achieve a lifetime of 2000 m under optimum operating conditions and with full use of the travel range. Optimum operating conditions of the N-412: Duty cycle: Maximum 50 % ...
  • Page 23: Dimensions

    10 Technical Data 10.4 Dimensions Dimensions in mm. Note that the decimal places are separated by a comma in the drawings. Figure 4: Dimensions of the N-412.50 Figure 5: Dimensions of the N-412.51 N-412 Piezo Motor Rod Drive N412T0001 Version: 1.2.1...
  • Page 24: Pin Assignment

    Dispose of your old equipment according to international, national, and local rules and regulations. In order to fulfil its responsibility as the product manufacturer, Physik Instrumente (PI) GmbH & Co. KG undertakes environmentally correct disposal of all old PI equipment made available on the market after 13 August 2005 without charge.
  • Page 25 12 EU Declaration of Conformity EU Declaration of Conformity For the N-412, an EU Declaration of Conformity has been issued in accordance with the following European directives: EMC Directive RoHS Directive The applied standards certifying the conformity are listed below.
