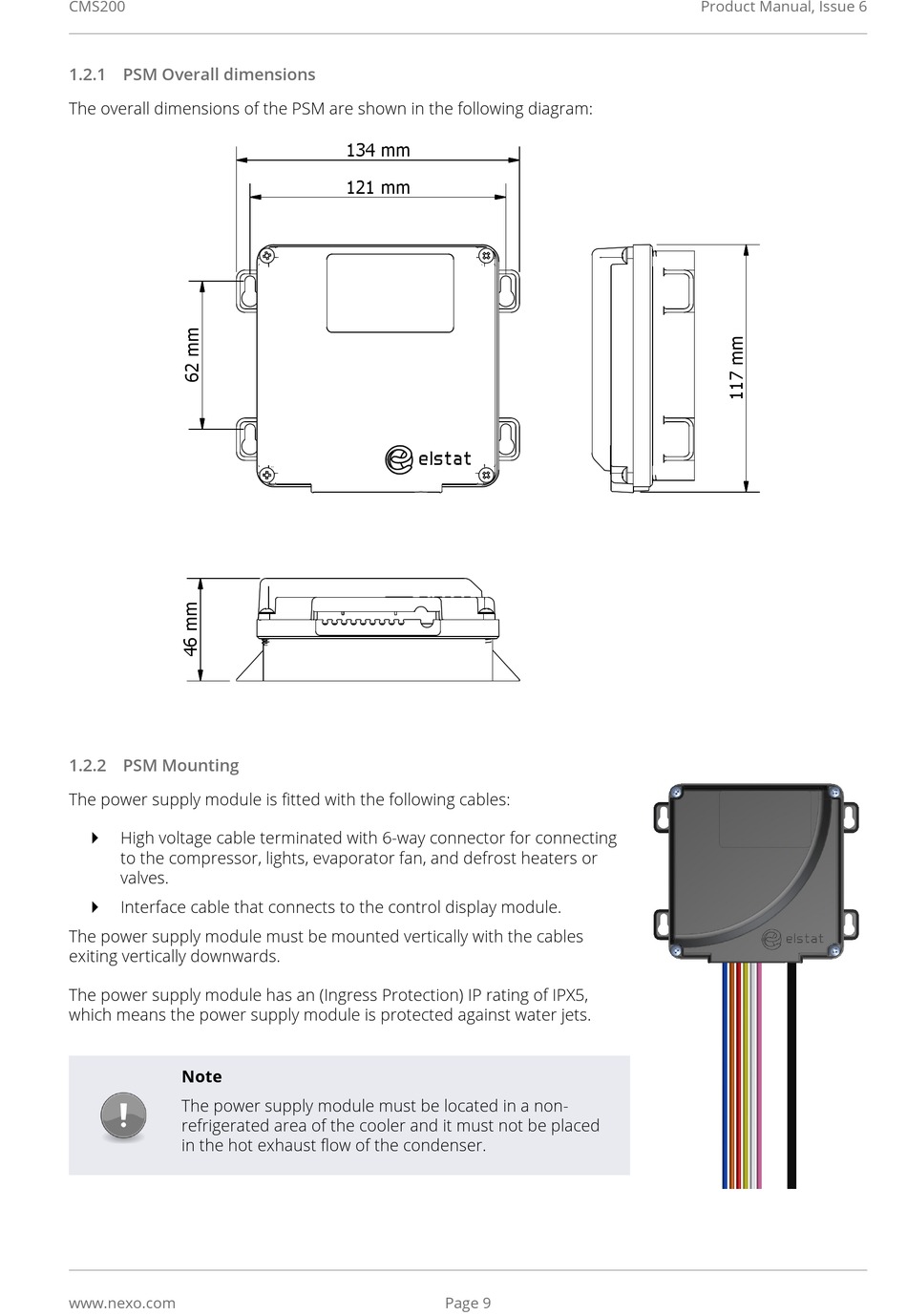

1.2.1 PSM Overall dimensions
The overall dimensions of the PSM are shown in the following diagram:
1.2.2 PSM Mounting
The power supply module is fitted with the following cables:
High voltage cable terminated with 6-way connector for connecting
`
to the compressor, lights, evaporator fan, and defrost heaters or
valves.
Interface cable that connects to the control display module.
`
The power supply module must be mounted vertically with the cables
exiting vertically downwards.
The power supply module has an (Ingress Protection) IP rating of IPX5,
which means the power supply module is protected against water jets.
Note
The power supply module must be located in a non-
refrigerated area of the cooler and it must not be placed
in the hot exhaust flow of the condenser.
www.nexo.com
134 mm
121 mm
Page 9
Product Manual, Issue 6
