Elstat Nexo CMS200 Product Manual page 18

Product Manual, Issue 6

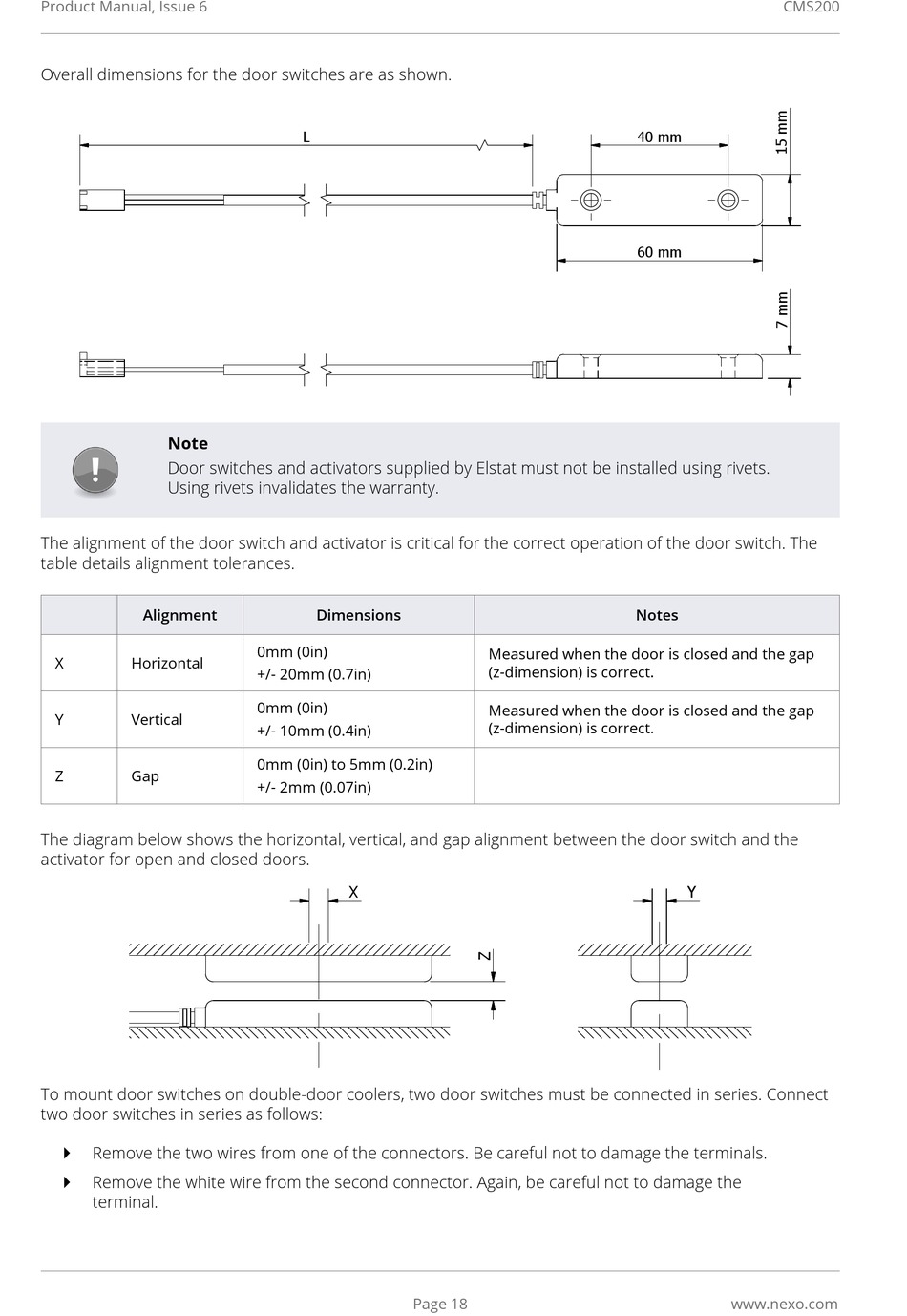

Overall dimensions for the door switches are as shown.
Note
Door switches and activators supplied by Elstat must not be installed using rivets.
Using rivets invalidates the warranty.
The alignment of the door switch and activator is critical for the correct operation of the door switch. The
table details alignment tolerances.
Alignment
X Horizontal
Y Vertical
Z Gap
The diagram below shows the horizontal, vertical, and gap alignment between the door switch and the
activator for open and closed doors.
To mount door switches on double-door coolers, two door switches must be connected in series. Connect
two door switches in series as follows:
Remove the two wires from one of the connectors. Be careful not to damage the terminals.
`
Remove the white wire from the second connector. Again, be careful not to damage the
`
terminal.
L
Dimensions
0mm (0in)
+/- 20mm (0.7in)
0mm (0in)
+/- 10mm (0.4in)
0mm (0in) to 5mm (0.2in)
+/- 2mm (0.07in)
X
Page 18
40 mm
60 mm
Notes
Measured when the door is closed and the gap
(z-dimension) is correct.
Measured when the door is closed and the gap
(z-dimension) is correct.
CMS200
Y
