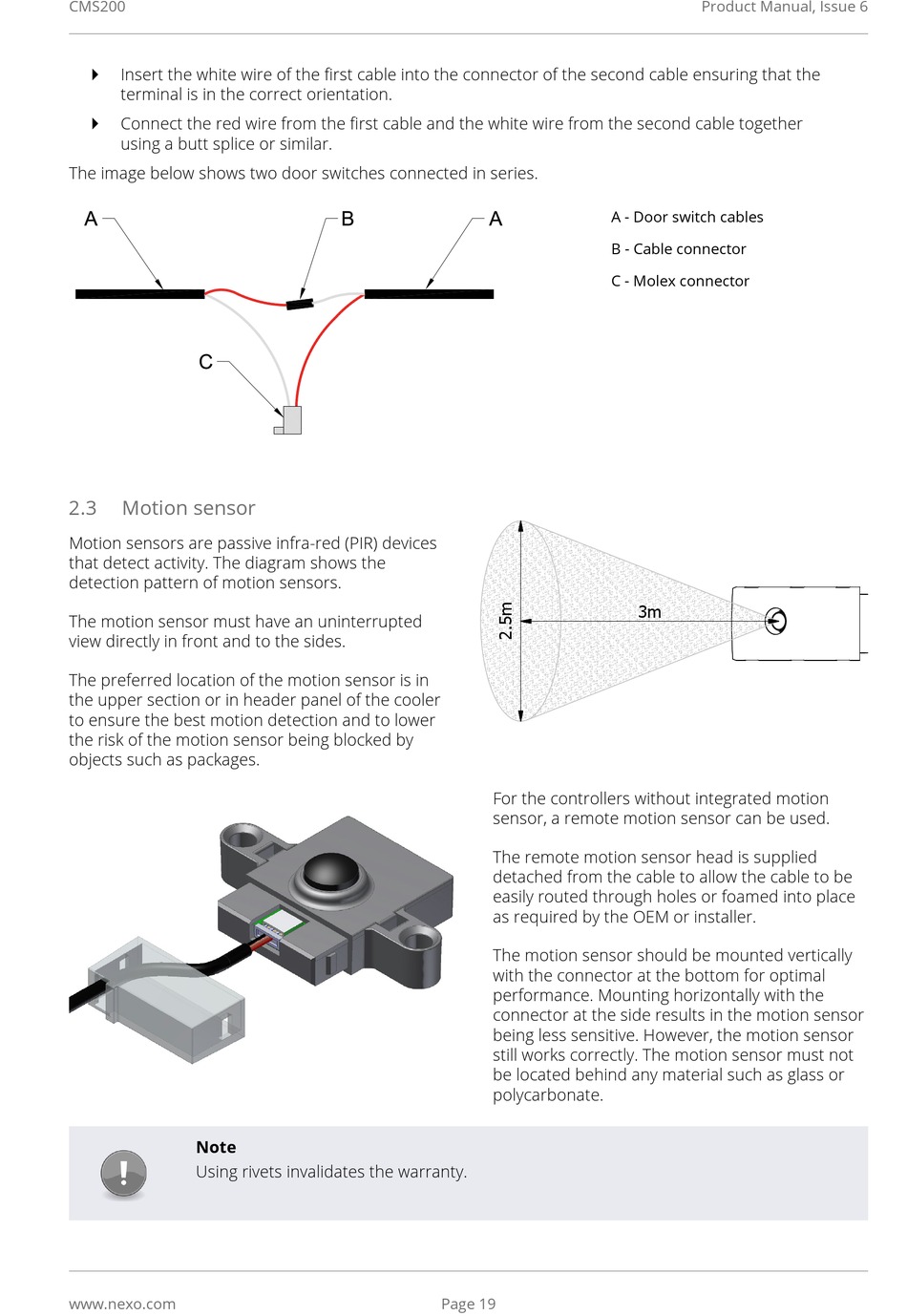

CMS200
Insert the white wire of the first cable into the connector of the second cable ensuring that the
`
terminal is in the correct orientation.
Connect the red wire from the first cable and the white wire from the second cable together
`
using a butt splice or similar.
The image below shows two door switches connected in series.
2.3 Motion sensor
Motion sensors are passive infra-red (PIR) devices
that detect activity. The diagram shows the
detection pattern of motion sensors.
The motion sensor must have an uninterrupted
view directly in front and to the sides.
The preferred location of the motion sensor is in
the upper section or in header panel of the cooler
to ensure the best motion detection and to lower
the risk of the motion sensor being blocked by
objects such as packages.
Note
Using rivets invalidates the warranty.
www.nexo.com
A - Door switch cables
B - Cable connector
C - Molex connector
For the controllers without integrated motion
sensor, a remote motion sensor can be used.
The remote motion sensor head is supplied
detached from the cable to allow the cable to be
easily routed through holes or foamed into place
as required by the OEM or installer.
The motion sensor should be mounted vertically
with the connector at the bottom for optimal
performance. Mounting horizontally with the
connector at the side results in the motion sensor
being less sensitive. However, the motion sensor
still works correctly. The motion sensor must not
be located behind any material such as glass or
polycarbonate.
Page 19
Product Manual, Issue 6
3m
