1. CONTROLLER WITH INTELLIGENCE
The Nexo controllers are the first truly intelligent refrigeration
solution for the beverage industry that delivers consumer insights
from field data to optimize and take complete control of cold drink
marketing.
Elstat's game-changing Nexo platform is a powerful tool that
connects drink brands directly to consumers at the point of sale,
wherever they are in the world, to create sustainable and profitable
relationships.
The energy management system controllers from Elstat are used
in a variety of drinks coolers, optimising energy savings, without
compromising on drinks serving temperature.
The CMS200 Nexo controller is designed for sub-zero beer coolers.
It consists of Control Display Module (CDM) and a Power Supply
Module (PSM) connected by an interface cable.
1.1 Control Display Module

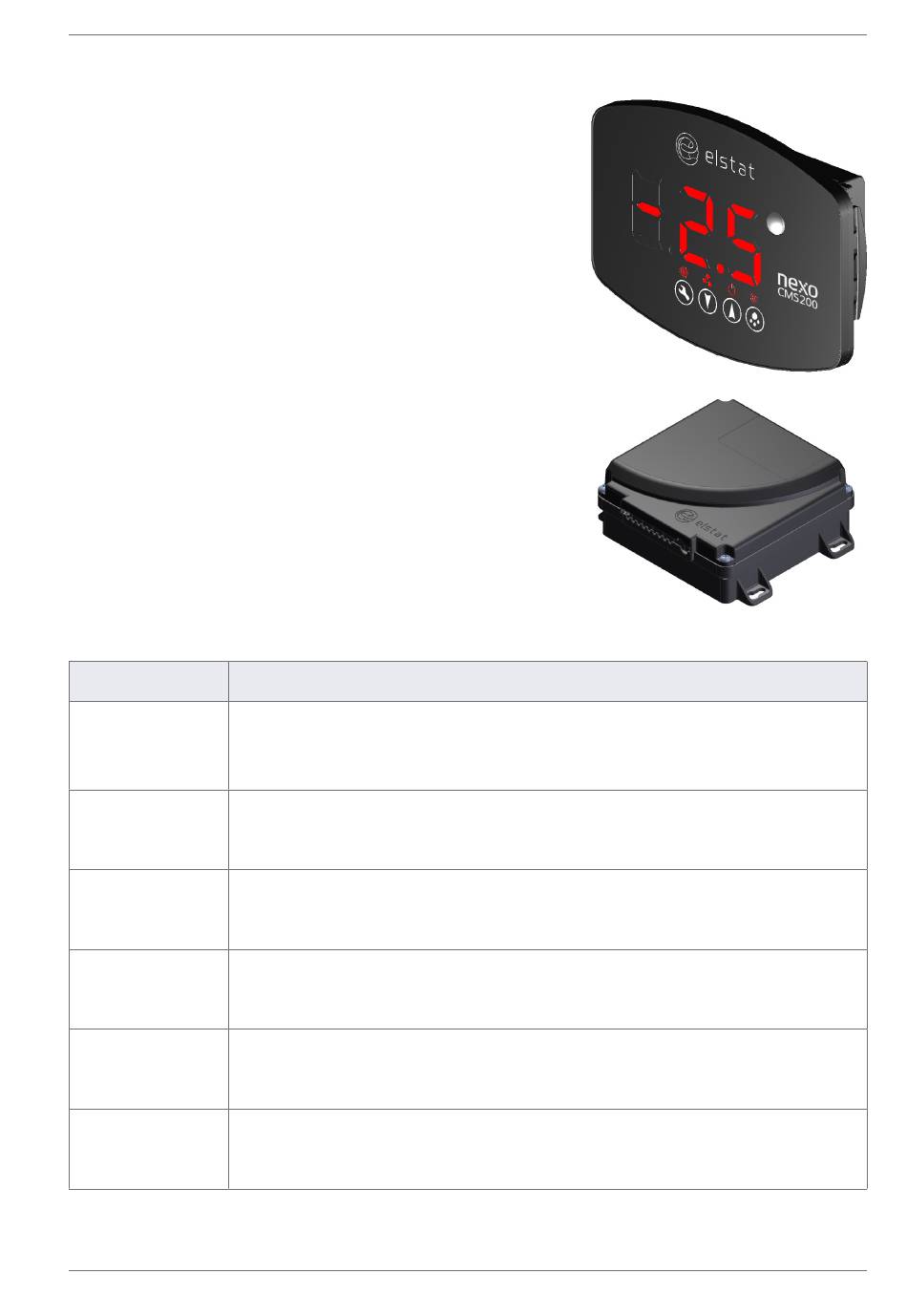

The control display module (CDM) consists of the user interface
with a large 3-digit 7-segment LED display, the temperature
sensors and door switch inputs.
CDM is powered by a 12VDC supply from the power supply
module and it provides the following functionality:
Feature
User and
diagnostic
information
Product
temperature
Refrigeration
system high
temperature alarm
Motion detection
Door open
detection
Boosted defrost
www.nexo.com
3-digit, 7-segment display that displays the product temperature and other information
such as defrost and alarm conditions.
Push buttons enable the end-users to cancel alarms and service technicians to run test
routines.
An appliance sensor measures temperature of the refrigeration compartment. The
controllers use the refrigeration temperature to manage the product temperature.
An optional condenser sensor measures the temperature of the refrigeration system.
The controllers use the temperature to alert to problems such as blocked condensers.
A remote or integrated motion sensor enables controllers to detect activity when
someone moves in front of the cooler.
A door switch enables the controllers to detect cooler activity when someone opens the
cooler doors.
Timed-based or temperature-based defrost can be boosted by a defrost heater or a hot
gas defrost. An evaporator sensor is required for temperature-based defrost.
Description
Page 5
Product Manual, Issue 6
