CMS200
1.2.3 PSM Electrical connections
Pin
Description
1
Live
2
Evaporator fan
3
Defrost heater
4
Neutral
5
Lights
6
Compressor

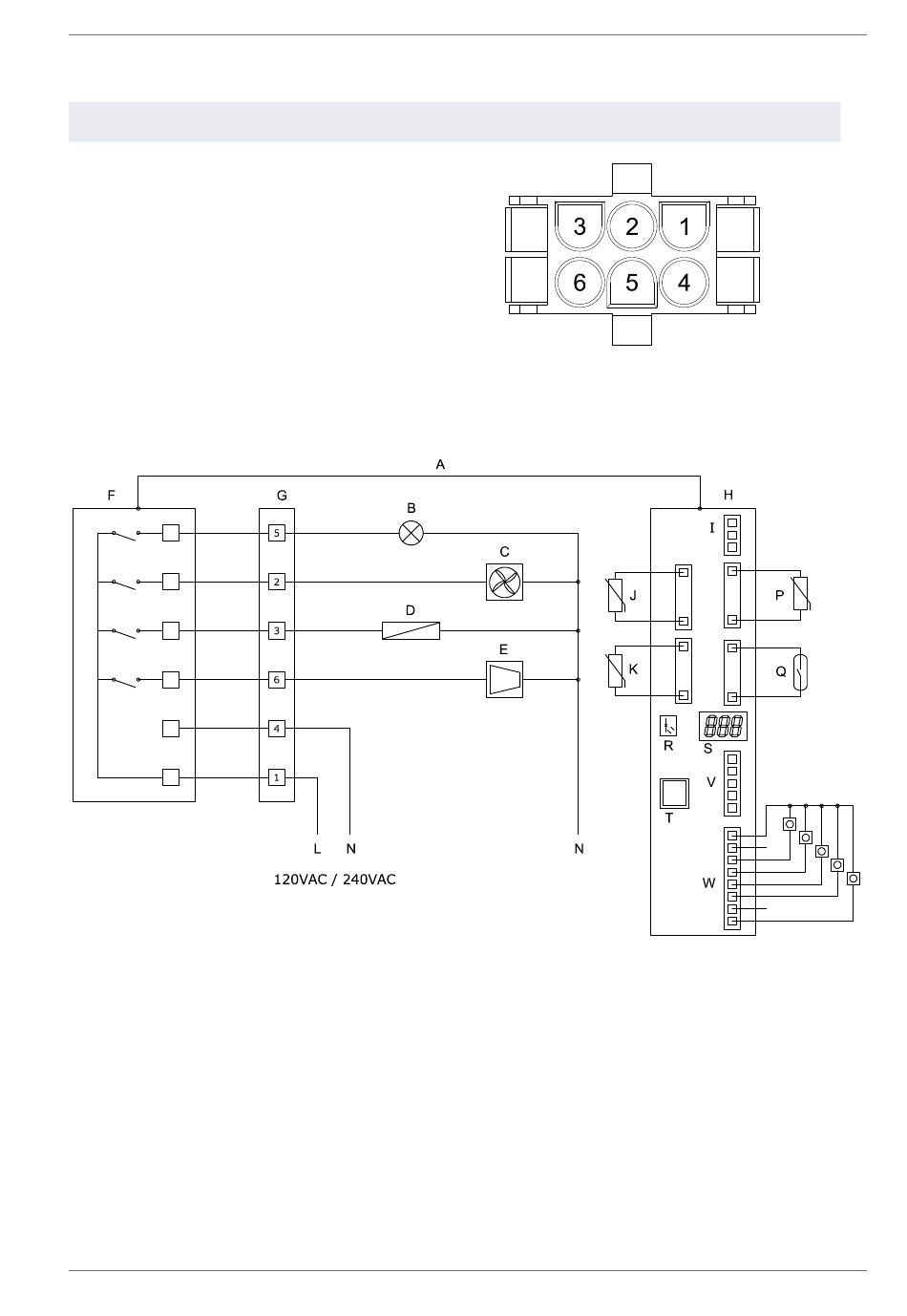

1.2.4 Wiring diagram
A - Interface cable
B - Lights
C - Evaporator fan
D - Defrost heater
E - Compressor
F - Power supply module
G - 6-Way connector
www.nexo.com
Colour
Brown
Yellow
Pink
Blue
White
Red
H - Control display module
I - RMD
J - Evaporator sensor
K - Condenser sensor
L - Live
N - Neutral
P - Appliance sensor
Page 11
Product Manual, Issue 6
Connectors
Q - Door switch
R - Motion sensor
S - Display
T - RJ45 Port
V - Modem interface
W - Stock / product sensor
