Product Manual, Issue 6

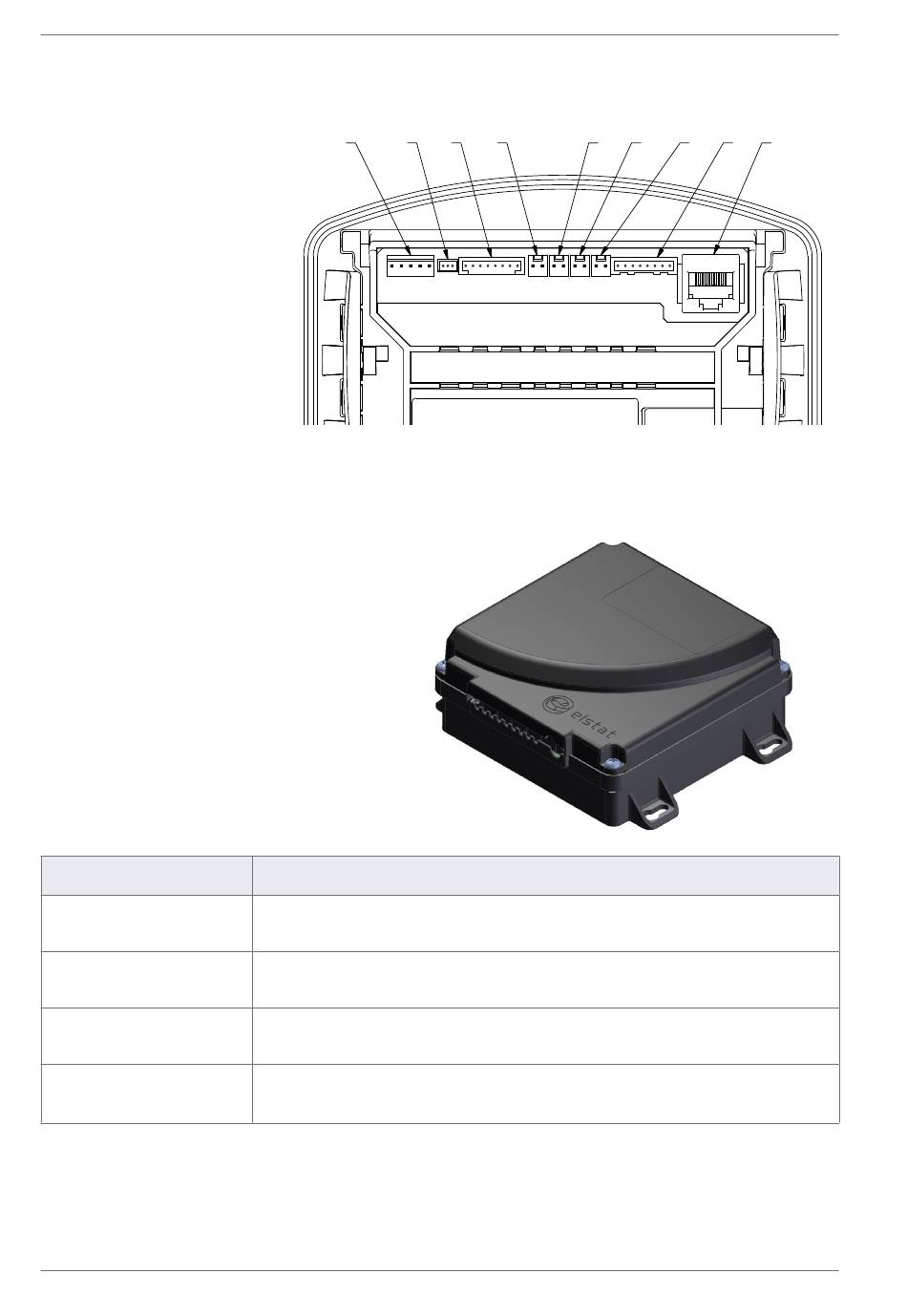

1.1.3 CDM Electrical connections
1
Modem interface
2
RMD port (If applicable)
3
Interface cable
4
Evaporator sensor
5
Door sensor
6
Condenser sensor
7
Appliance sensor
8
Stock sensor
9
RJ45 Port
1.2 Power Supply Module
The power supply module (PSM) contains
the power supply for the control unit and
the relays to switch the following cooler
components:
Feature
Compressor relay
Evaporator fan relay
Auxiliary relay
Lights relay
2
1
Switches the compressor to manage the temperature of the refrigeration
compartment.
Switches the evaporator fan to minimize heat transfer to products when the
compressor is not running.
Switches a defrost heater or a solenoid valve for hot gas defrosts.
Switches the cooler lights.
Page 8
3
4
5
Description
CMS200
6
7
8
9
