For Mounting Bosch 4100
Table Saw to GTA47W Stand

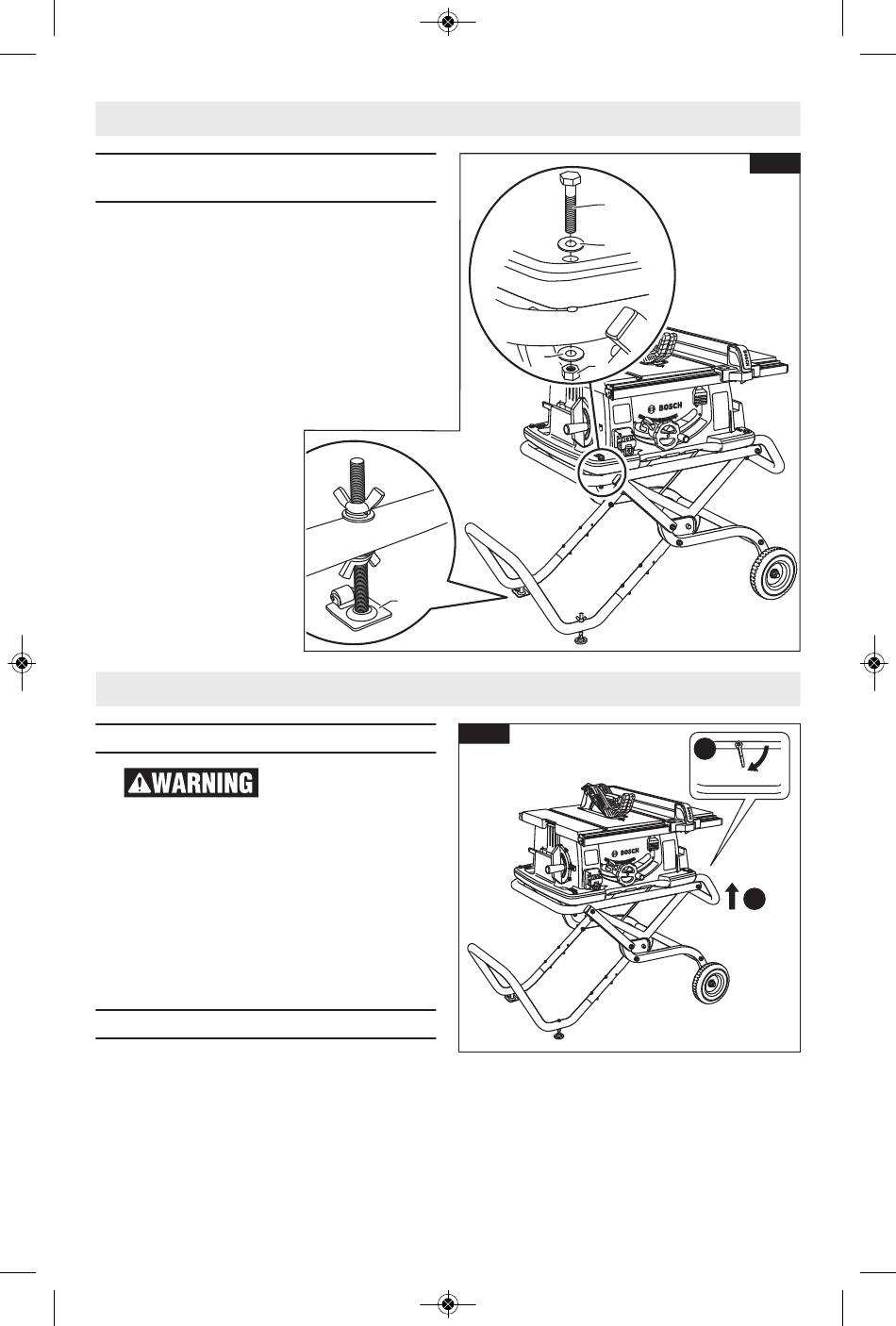

1. Align the saw as shown in figure 8.
Note the orientation of the table saw
in relation to the square foot Z. Insert
one (1) hex head bolt U through one
(1) flat washer W and mounting hole
in table saw and through top tube bar
F of the stand.
2. Place one (1) flat washer W and
securely tighten with one lock nut V
using two 10mm wrenches.
3. Repeat this procedure on the three
r e m a i n i n g
mounting holes.
Fold Stand Upright
folding or unfolding the stand.
1. Slightly lift stand by the handle bar
(Fig. 9).
2. Rotate release lever down to clear
locking pins (Fig. 9).
3. With both hands on the handle, pull
up and push forward on the stand
(Fig. 10), until it locks in the upright
position (Fig. 11).
Lower Stand
1. Rotate the release lever, then pull
back on the stand slightly to
disengage. Use foot to pull out kick
bar C, if necessary.
2. With both hands on the handle, pull
back and lower the stand until it
locks in position.
Mounting Table Saw to Stand
Z
Operating Instructions
Keep fingers clear of
hinge points when
U
W
F
W
V
Fig. 9
-8-
Fig. 8
