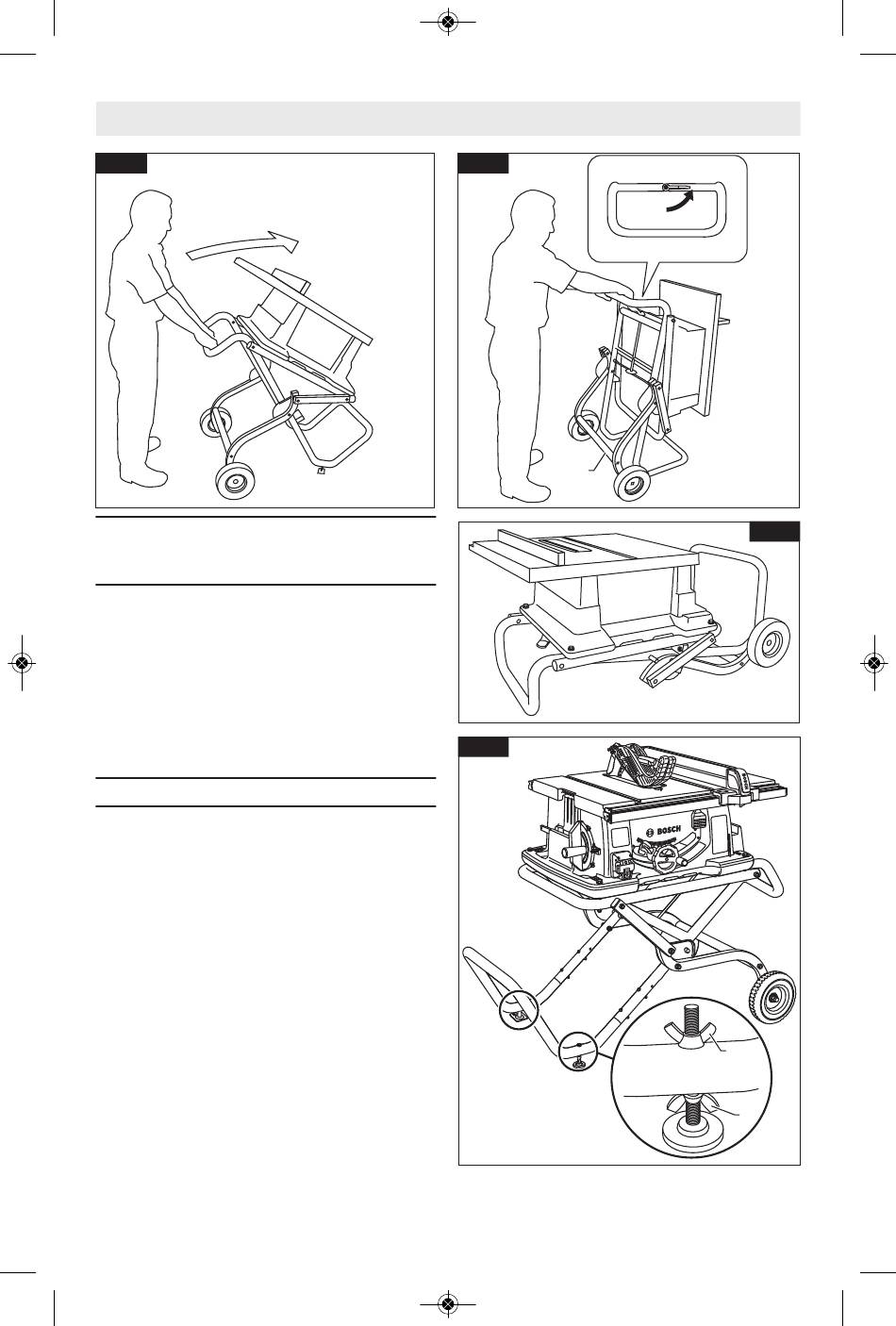

Fig. 10
Abaissement du support
dans sa position la plus
basse
Commencez avec le support verrouillé
dans la position verticale, comme
illustré ci-dessus à la Figure 11.
Saisissez fermement la poignée des
deux mains et placez un pied contre la
barre pour pousser/tirer avec le pied C.
Désengagez la poignée et abaissez le
support jusqu'au sol, comme illustré
(Fig. 12).
Mise à niveau du support
Le support est muni de deux pieds
réglables pour mettre le support de
niveau.
Ajustez la hauteur du pied (voir Fig. 13) :
1.
Desserrez l'écrou à oreilles du haut X.
2.
Ajustez la hauteur du pied en élevant
ou abaissant l'écrou à oreilles du bas
Y.
3.
Resserrez à fond les deux écrous à
oreilles une fois que le support a été
mis à niveau.
Instructions pour l'utilisation
-19-
Fig. 11
C
Fig. 13
Fig. 12
X
Y
