Mocka Addi Six Drawer - Wide Assembly Instructions Manual page 6

Addi Six Drawer - Wide
Assembly Instructions
9
4

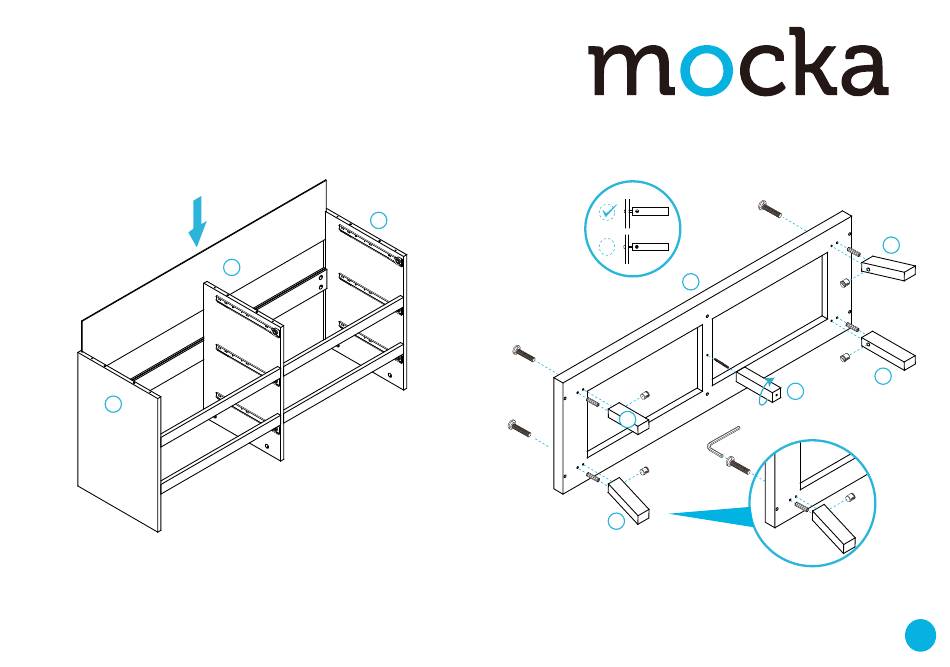

Slide panel [8] between the grooves of panels [3] and [4] to form the
back of the unit, as shown.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
3
8
10
×
2
Q
L
Q
S
9
M
L
S
9
Attach the legs [9] to panel [2] with 4x big dowels (S) and 4x nuts (L)
as shown. Secure with 4x long Allen bolts (Q). Tighten with an Allen
key (M). Attach support leg [10] to panel [2] and secure with 1x
double ended screw (A1).
Q
S
9
L
A1
L
9
10
Q
L
S
6
