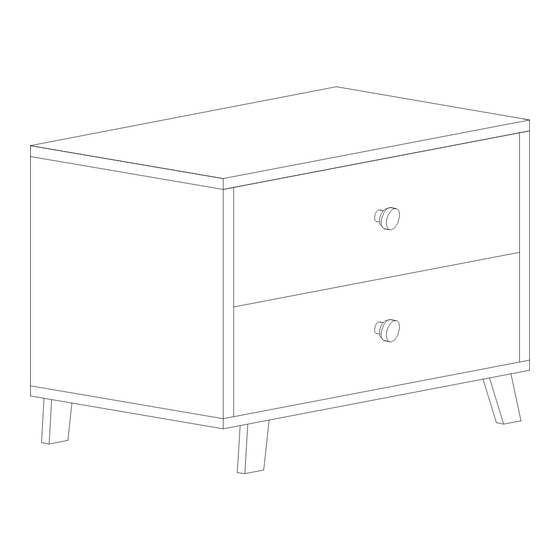

Aspen Bedside Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
C
B
bolt
locking
dowel
screw x 12
x12
nut x 12
x8
G
H
handle
L + R
L + R
slide rail
slide rail
x4
x4
Hardware Supplied
Phillips & Flathead screwdrivers and hammer required
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
mocka.co.nz | mocka.com.au
E
D
F
small
long
medium
screw x16
screw x 8
I
J
K
wedge
cover
x 2
x 4
x 8
WARNING: Any furniture that is not anchored to a wall has the potential
W
to tip over in certain circumstances, i.e. if a child attempts to climb up on
the furniture or in the event of an earthquake. Accordingly, we
recommend that all furniture is anchored to a wall. We supply a free
safety wall anchor with all furniture sold and we recommend these are
used to prevent your product tipping. The fixing device provided should
fit most wall types, but please note that different wall materials
safety
long
may require different fixing devices from those supplied.
strap
screw
x1
x1
X
Y
wall
screw
anchor
x1
x1
Z
washer
x1
1
Advertisement
Related Manuals for Mocka Aspen
Summary of Contents for Mocka Aspen
- Page 1 Aspen Bedside Table Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
- Page 2 Aspen Bedside Table Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Attach 2 x left slide rails (G) to panel [3] and secure with 4 x small screws (E). Attach 1 x wall strap (W) to panel [1] using 1x screw(Y).
- Page 3 Aspen Bedside Table Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Insert 4 x dowels (C) into panels [3] and [4]. Attach panels [3] and [4] to panel Attach panel [2] to panel [5] and secure with 8 x long screws (D).
- Page 4 Aspen Bedside Table Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Insert 4 x dowels (C) into panels [3] and [4]. Attach panels [3] and [4] to panel Slide panel [6] between the grooves on panels [3] and [4] to form the [1] and secure with 4 x locking nuts (B).
- Page 5 Aspen Bedside Table Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Drawers (x2) Drawers (x2) Attach panels [11] to panels [9] and [10] Secure with 8 x medium screws (F). Insert 8 x bolts (A) into panels [7]. Attach panels [9] and [10] to panels Attach 4 x slide rails (H) to panels [9] and [10] and secure with 8 x small [7] secure with 8 x locking nuts (B).
- Page 6 Aspen Bedside Table Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Strap Washer wall anchor wall screw wall screw Once assembled lift furniture into place, do not drag. Use a drill to create a small hole lining up with the top of the safety strap (W).
