- Page 1 160-10-7N Low-Profile Digital Athletic Scale Operator Manual June 15, 2021 PN 193841 Rev B...
- Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
-
Page 3: Table Of Contents
8.0 Specifications ............... . . 16 Technical training seminars are available through Rice Lake Weighing Systems. - Page 4 160-10-7N Low-Profile Digital Athletic Scale Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars www.RiceLake.com Visit our website...
-
Page 5: Introduction

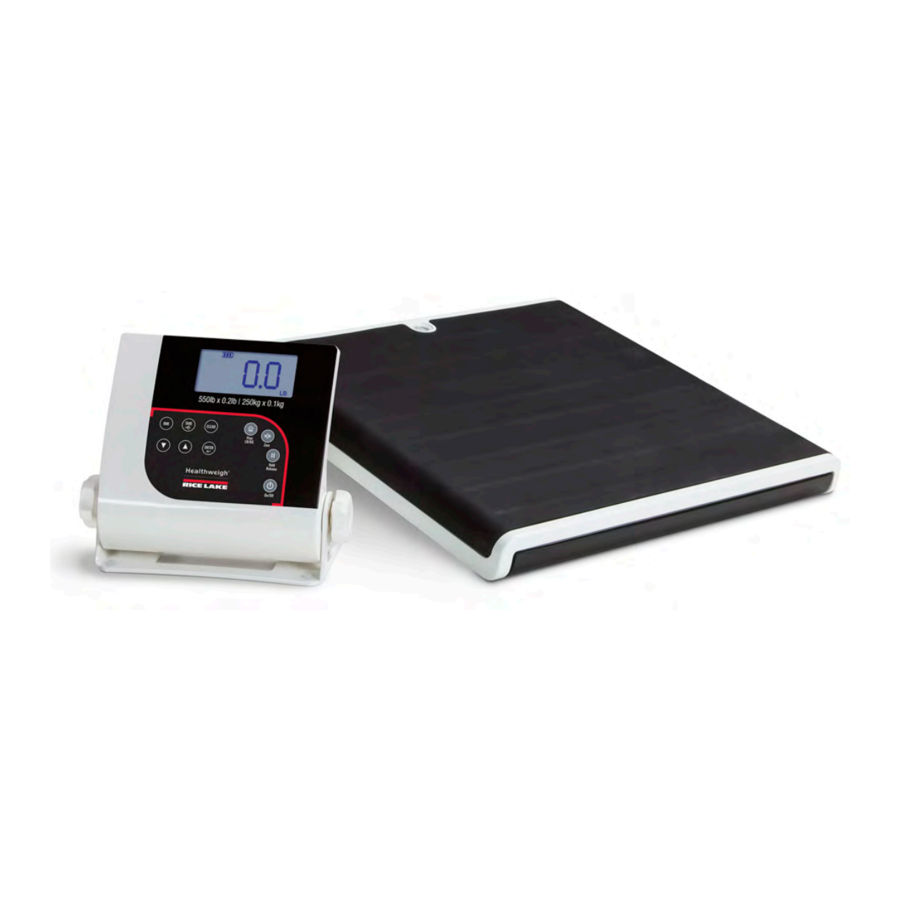

The large, stand-alone indicator can be placed on a table or the floor. It can also be mounted to a wall using the sturdy, built-in bracket. The 160-10-7N Low-Profile Digital Athletic Scale is an NTEP-certified device that provides the highest possible accuracy when weight is a critical factor. -
Page 6: Safety
Do not operate or work on this equipment unless this manual has been read and all instructions are understood. Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals. -
Page 7: Scale Assembly
• Serial cable 9.5' with female DB9 and RJ45 connectors 2.1.1 Repacking The 160-10-7N must be properly packed with sufficient packing materials prior to being moved or shipped. Retain the original shipping materials and container, if possible. Damage caused by improper packaging is not covered by the warranty. -
Page 8: Indicator
160-10-7N Low-Profile Digital Athletic Scale Indicator Use the following sections to setup the provided Rice Lake Indicator. 2.3.1 Load Cell Connection The indicator and scale come connected with a 6-foot load cell cable. Follow the procedure below if the load cell cable needs to be replaced or reconnected to the indicator. -
Page 9: Insert Batteries
Optional Power Connection Rice Lake Weighing Systems includes an AC power adapter to use when power is available. Only use power adapters supplied by or purchased from Rice Lake Weighing Systems. The use of a power IMPORTANT adapter not from Rice Lake Weighing Systems voids the warranty. -
Page 10: Operation
160-10-7N Low-Profile Digital Athletic Scale Operation This section describes the indicator, functionality of each button and basic scale operations. Figure 3-1. Indicator Front Panel Item No. Function Does not function when set up as an NTEP-certified scale Body Mass Index (BMI) – enable in configuration; a stable weight is required TARE –... -
Page 11: Scale Power
4. Have subject step on the scale with the accessory items. The weight is displayed and the NET annunciator remains on. 5. The weight of the additional items remain stored in memory. To cancel the tare weight, press TARE © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 12: Body Mass Index
160-10-7N Low-Profile Digital Athletic Scale Body Mass Index button does not function when set up as an NTEP-certified scale. The BMI Note 3.6.1 LB Mode Set the units to LB if needed. 1. With the weight at 0.0 and the ZERO annunciator on, have subject step onto the scale. The weight value displays. -
Page 13: Communication
The indicator comes with an RS-232 port which enables weight data to be transmitted to other equipment, such as a computer or printer. The RS-232 cable with DB-9 connector (PN 100719) is available from Rice Lake Weighing Systems. Figure 4-1 on page 10 shows where the RS-232 connection is located on the indicator. -
Page 14: Usb Connection
Basic information on USB driver installation using Windows is described in the following steps and serves only as an example. A USB driver can be downloaded from the Rice Lake Weighing Systems website at: https://www.ricelake.com/resources/software-firmware 1. Click on Software Figure 4-2. - Page 15 6. Select Install the software automatically and select . A file transfer screen displays as the file downloads and Next installs to the computer. 7. Click on when the completion screen displays Finish © Rice Lake Weighing Systems ● All Rights Reserved...
- Page 16 160-10-7N Low-Profile Digital Athletic Scale 8. To verify the installation, the driver can be viewed in the device manager of the computer. Figure 4-6. Device Manager 9. To configure a printer using the USB driver, open the software driver Parpar in the device manager (Figure 4-6).
-
Page 17: Sealing Of The Unit
Sealing of the Unit Sealing of the Unit The 160-10-7N Low-Profile Digital Athletic Scale is an NTEP certified scale. To maintain NTEP certification, the unit must not be opened. NTEP Regulations Weights and Measures stickers or foil labels are used on both sides of the unit to seal and prevent it from being opened. -
Page 18: Maintenance And Troubleshooting
160-10-7N Low-Profile Digital Athletic Scale Maintenance and Troubleshooting Maintenance The following section provides instructions for maintaining and cleaning the Rice Lake line of scales. Do not immerse the scale in cleaning or other liquid solutions. IMPORTANT Do not use isopropyl alcohol or other solutions to clean the indicator display surface. -
Page 19: Limited Warranty
Limited Warranty Limited Warranty Rice Lake Weighing Systems (RLWS) warrants that all RLWS equipment and systems properly installed by a Distributor or Original Equipment Manufacturer (OEM) will operate per written specifications as confirmed by the Distributor/OEM and accepted by RLWS. All systems and components are warranted against defects in materials and workmanship for two years. -
Page 20: Specifications
160-10-7N Low-Profile Digital Athletic Scale Specifications Capacity Certifications 550 lb x 0.2 lb (250 kg x 0.1 kg) RoHS Compliant Platform Dimensions Approvals W x L x H: 14.4 x 14.4 x 1.65 in (36.6 x 36.6 x 4.2 cm) - Page 22 Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company. 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319...
