Total Body Composition Analyzer – Competitor Series
Column Installation Instructions
PN 152984
The Competitor Series scale has an optional column that can be purchased. Use the following steps to install the
optional column.
CAUTION
It is recommended using two people to install the optional column
.
Item No.
October 2013

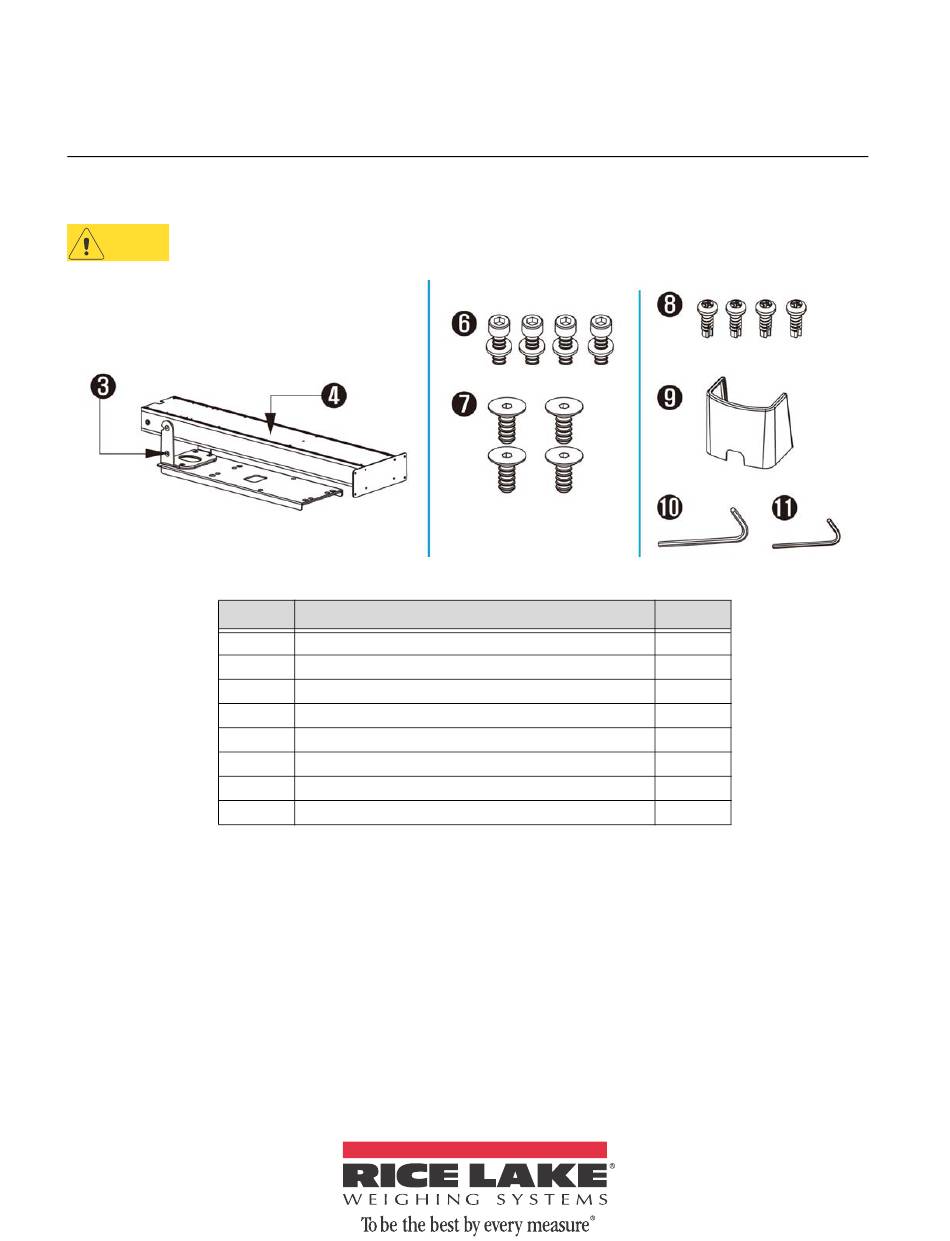

Figure 1. Optional Column Components
3
Mounting bracket
4
Optional column
6
M6 Socket head cap screw and washer
7
Cap screw, heck socket flat w/ countersunk head
8
Machine screw, pan head 6-32 x 5/8
9
Column cover assembly
10
Allen wrench, 4mm
11
Allen wrench, 5mm
Table 1. Optional Column Assembly Parts
Description
Qty
1
1
4
4
4
1
1
1
159047
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rice Lake Competitor Series
Summary of Contents for Rice Lake Competitor Series
- Page 1 Total Body Composition Analyzer – Competitor Series Column Installation Instructions PN 152984 The Competitor Series scale has an optional column that can be purchased. Use the following steps to install the optional column. CAUTION It is recommended using two people to install the optional column Figure 1.
- Page 2 1. Connect the DB-9 scale base cable and tighten two bolts as shown in Figure 2 Figure 2. Fasten Weight Scale Cables 2. Remove the two M6 plate bolts to separate the mounting bracket from the column, see Figure 3. Important If the plate bolts are not disassembled when the body stands, it may damage the body.
- Page 3 4. Attach the digital display to the column using a screwdriver to attach the display with four bolts as shown on the left hand side of Figure 5. Figure 5. Column Attachment 5. Place the scale base on a flat and level surface. 6.
- Page 4 230 W. Coleman St. Rice Lake, WI 54868 Europe +31 (0)26 472 1319 U.S. 800-472-6703 Canada/Mexico 800-321-6703 International 715-234-9171 www.ricelake.com www.ricelake.mx www.ricelake.eu www.ricelake.co.in m.ricelake.com Rice Lake Weighing Systems is an ISO 9001 registered company. © Rice Lake Weighing Systems 10/29/13 PN 159047...
