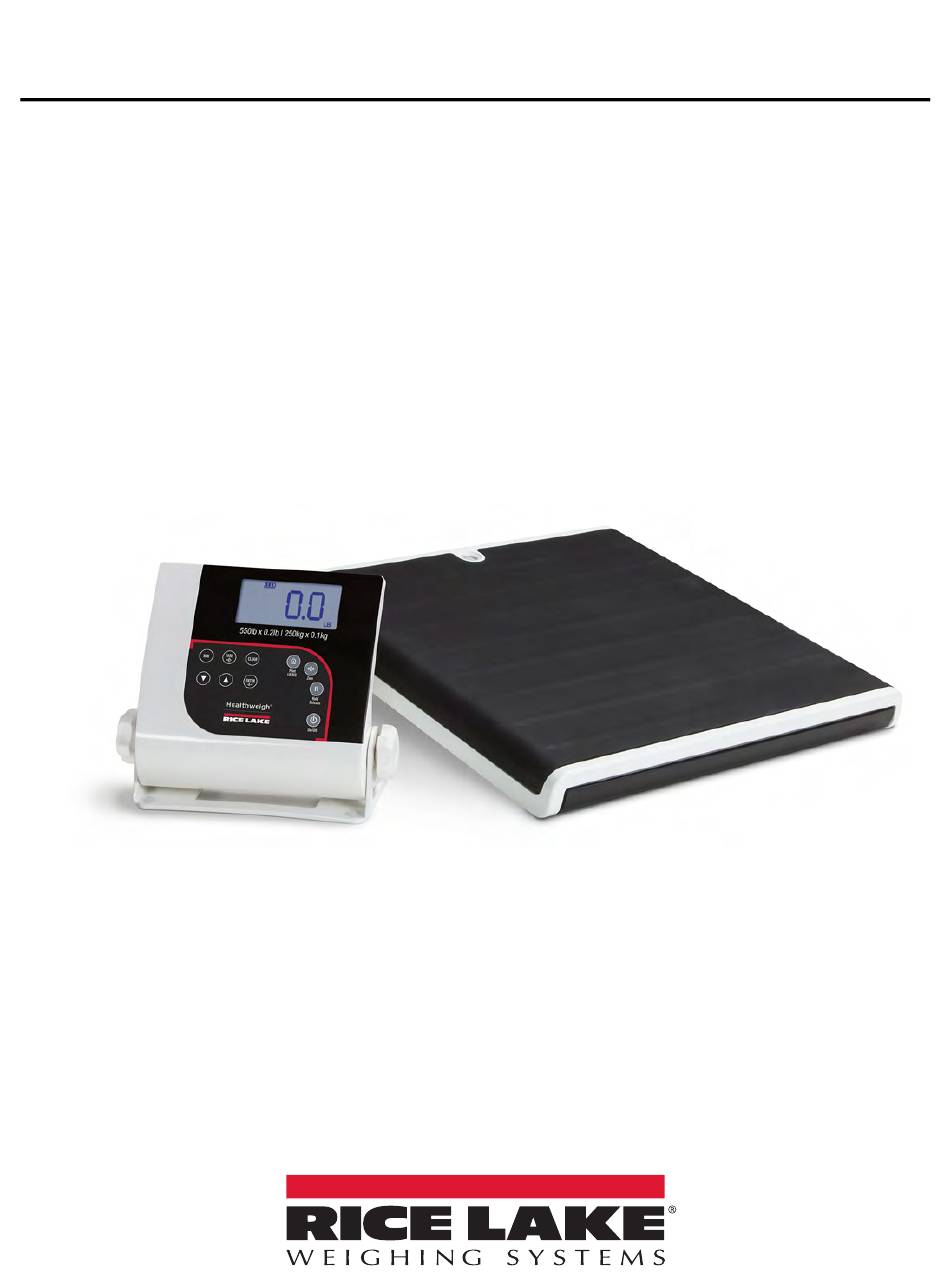

- Page 1 160-10-7N Low-Profile Digital Athletic Scale Software Version 11525 Technical Manual August 18, 2022 PN 194095 Rev C...
- Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
- Page 3 Established a revision history; formatted content to match other medical manuals; software version 11525 Table i. Revision Letter History Technical training seminars are available through Rice Lake Weighing Systems. Course descriptions and dates can be viewed at www.ricelake.com/training or obtained by calling 715-234-9171 and asking for the training department.
-
Page 4: Table Of Contents
8.0 Specifications ............... . . 23 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. -
Page 5: Introduction

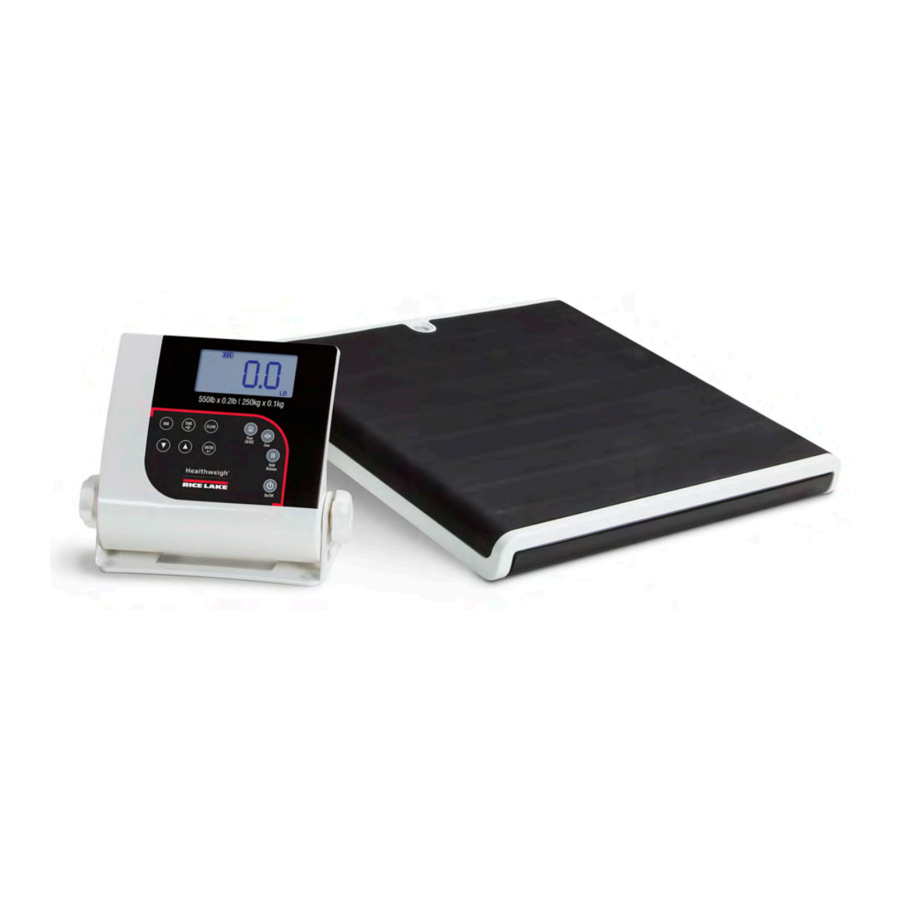

The large, stand-alone indicator can be placed on a table or the floor. It can also be mounted to a wall using the sturdy, built-in bracket. The 160-10-7N low-profile digital athletic scale is an NTEP-certified device that provides the highest possible accuracy when weight is a critical factor. -
Page 6: Safety
Do not operate or work on this equipment unless this manual has been read and all instructions are understood. Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals. -
Page 7: Assembly
Unpacking Place the unopened shipping container in an open area with room for unpacking the scale. If parts were damaged in shipment, notify Rice Lake Weighing Systems and the shipper immediately. Parts included: • Scale base and indicator • Six AA batteries •... -
Page 8: Indicator Setup
160-10-7N Low-Profile Digital Athletic Scale Indicator Setup Use the following sections to set up the provided Rice Lake Indicator. 2.3.1 Load Cell Connection The indicator and scale comes factory installed with a load cell cable connection. Follow the procedure below if the load cell cable needs to be replaced or reconnected to the indicator. -
Page 9: Insert Batteries
Power Connection An optional AC power adapter can be used when a power outlet is available. Only use power adapters supplied by or purchased from Rice Lake Weighing Systems. The use of a power IMPORTANT adapter not from Rice Lake Weighing Systems voids the warranty. -
Page 10: Operation
160-10-7N Low-Profile Digital Athletic Scale Operation This section describes the front panel and includes procedures for operation of the scale. Figure 3-1. Front Panel Keypad Key Descriptions The display has 10 front panel keys. Key functions are described in the table below. -
Page 11: Weighing
(default is programmed to be 33.0 lb/15.0 kg). 2. Use to adjust the value. Press to start the tare function. The NET annunciator turns on instead ENTER of the GROSS annunciator. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 12: Using The Body Mass Index (Bmi) Function
160-10-7N Low-Profile Digital Athletic Scale Using the Body Mass Index (BMI) Function The BMI key does not function when set up as an NTEP-certified scale. Note Use the following steps in determining the BMI. 3.6.1 LB Mode 1. Ensure that the scale is at zero. -
Page 13: Troubleshooting
Note: Load cell connection point is located underneath the connection port curved plastic cover of the indicator. Remove four back retaining screws, remove curved back cover to access load cell connection point. Table 3-2. Troubleshooting Table © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 14: Configuration
160-10-7N Low-Profile Digital Athletic Scale Configuration Options and parameter setup are done through the scale navigation. Setup Mode Accessing the setup menu require the indicator to be in setup mode. It is necessary to break the seal and remove the back cover to put the indicator into setup mode.Use a Phillips head screwdriver to remove the four screws holding the cover in place... -
Page 15: Enter Numbers
. The next parameter displays ENTER • When all parameters selections/values are correct, SAVE displays • Press . DONE displays. ENTER • Press to save settings and return to weigh mode. ENTER © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 16: User Menu
160-10-7N Low-Profile Digital Athletic Scale User Menu The User Menu allows a user to set the baud, auto off time and turn several other functions on or off. USER DONE TEST BAUD TOFF LIVE MAIN TARE ANTIP SAVE 1152 Figure 4-2. User Menu... -
Page 17: Configuration Mode
ENTER 6. Press to return to the setup menu. DEF displays. 7. Press . DONE displays. 8. Press . The indicator resumes the self test and returns to weigh mode. ENTER © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 18: Program Menu
160-10-7N Low-Profile Digital Athletic Scale Program Menu The program menu allows for the setup of the indicator to determine how the scale reads the weight and displays output. To enter the program menu: 1. Enter setup mode (Section 4.7). 2. With PROG displayed, press ENTER 3. -
Page 19: Scale Calibration
. DONE displays. ENTER 9. Press three times to navigate to the top level DONE parameter. 10. Press . The indicator resumes the self test and returns to weigh mode. ENTER © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 20: Test Menu
160-10-7N Low-Profile Digital Athletic Scale Test Menu This menu is read only. TEST USER DONE VALUE Figure 4-6. Test Menu Parameter Description Internal ID number Development internal sub version Raw weight data VALUE Processed weight in live display Relative raw battery value Table 4-3. -
Page 21: Communication
The unit comes with an RS-232 port that enables weight data to be transmitted to other equipment, such as a computer or printer. The RS-232 cable with DB-9 connector (PN 100719) is available from Rice Lake Weighing Systems. That connection is shown in USB Connection section. -
Page 22: Communication Protocols
160-10-7N Low-Profile Digital Athletic Scale Communication Protocols The scale has two communication protocols, escape and maintenance protocol. 5.2.1 Escape Protocol An escape protocol is where the escape (0X1B or ASCII 27) is used to indicate that there is a command following. On the PC side there must be a listener created by the vendor that will interpret this protocol. -
Page 23: Maintenance Protocol
Firmware ID + development version Current weight Current AD Zero the scale Show flash values (used for the first flash process) USB On/Off (not available on USB communication Table 5-5. Maintenance Protocol Commands © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 24: Usb Connection
160-10-7N Low-Profile Digital Athletic Scale USB Connection The scale has the capability of connecting to a Windows computer (PC) using a USB cable (not included) and a terminal ® emulation program. A terminal emulation program allows the transfer of data between the scale and PC using a serial port. -
Page 25: Sealing Of The Unit
Sealing of the Unit Sealing of the Unit The 160-10-7N Low-Profile Digital Athletic Scale is an NTEP certified scale. To maintain NTEP certification, the unit must not be opened. NTEP Regulations Weights and Measures stickers or foil labels are used on both sides of the unit to seal and prevent it from being opened. -
Page 26: Maintenance
160-10-7N Low-Profile Digital Athletic Scale Maintenance The following section provides instructions for maintaining and cleaning the unit. Do not immerse the scale in cleaning or other liquid solutions. IMPORTANT Do not use Isopropyl alcohol or other solutions to clean the indicator display surface. -
Page 27: Specifications
W x L x H: 14.4 in x 14.4 in x 1.65 in (36.6 cm x 36.6 cm x 4.2 cm) Display 5-digit LCD display, 0.75 in (1.9 cm) digit height Warranty Two-year limited warranty Certifications and Approvals CC 18-011 AM-6097 E113986 © Rice Lake Weighing Systems ● All Rights Reserved... - Page 28 160-10-7N Low-Profile Digital Athletic Scale www.ricelake.com Visit our website...
