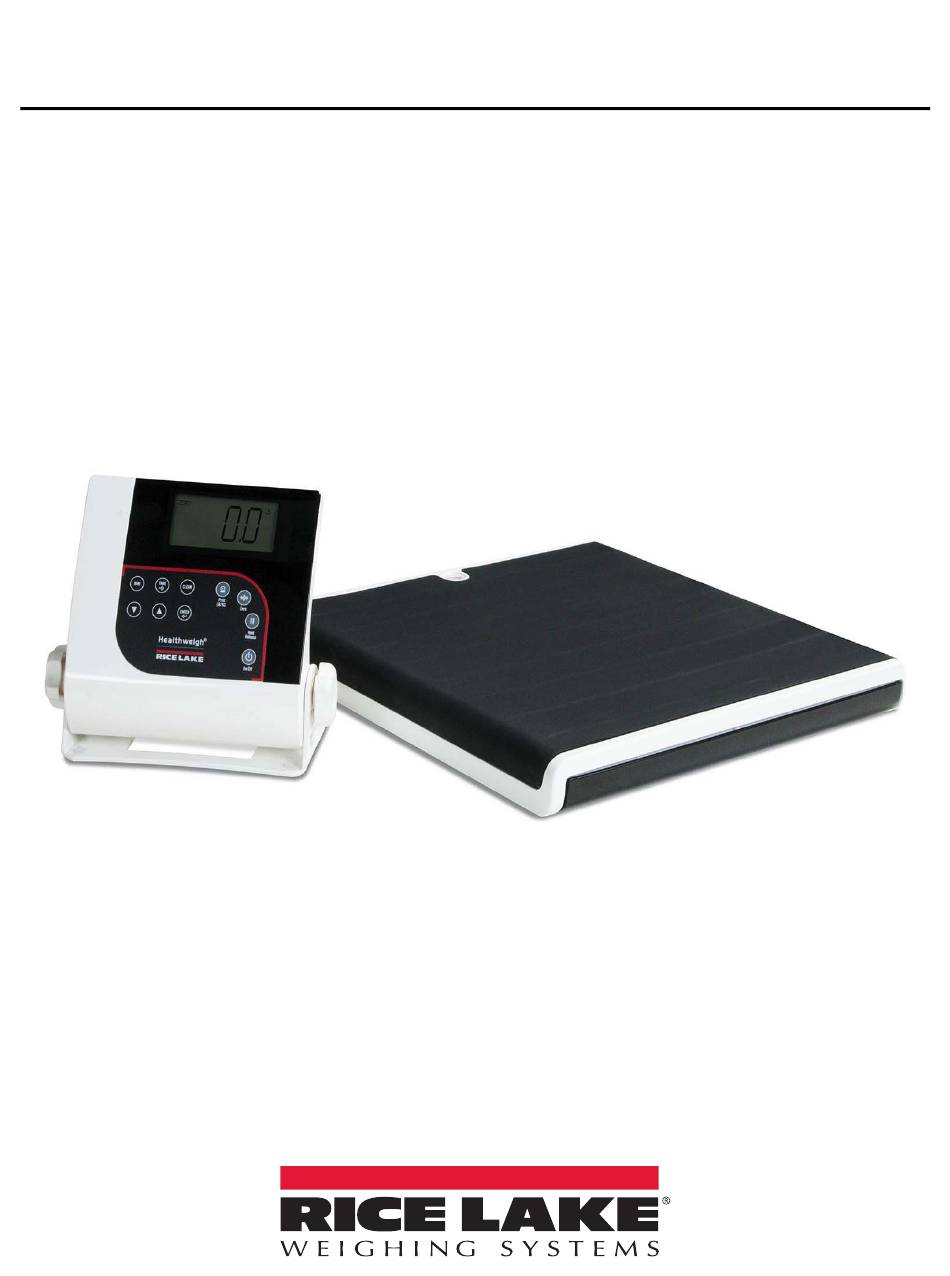

- Page 1 160-10-7 Low Profile Digital Physician Scale Firmware Version 11525 Technical Manual August 18, 2017 PN 185558 Rev C...
- Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
-
Page 3: Table Of Contents
Basic Maintenance ..............24 Technical training seminars are available through Rice Lake Weighing Systems. - Page 4 Specifications ................. 25 Low Profile Digital Physician Scale Limited Warranty................26 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars Visit our website www.ricelake.com...
-
Page 5: Introduction
Introduction The 160-10-7 Low-Profile Digital Physician Scale is efficiently designed to provide accurate, reliable and repeatable weight measurements. The large, stand-alone indicator can be placed on a table or the floor. It can also be mounted to a wall using the sturdy, built-in bracket. -
Page 6: Safety
Do not operate or work on this equipment unless this manual has been read and all instructions are understood. Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals. -
Page 7: Scale Assembly
• Serial cable 9.5' with female DB9 and RJ45 connectors 2.1.1 Repacking The 160-10-7 must be properly packed with sufficient packing materials prior to being moved or shipped. Retain the original shipping materials and container, if possible. Damage caused by improper packaging is not covered by the warranty. -
Page 8: Indicator
160-10-7 Low-Profile Digital Physician Scale Indicator Use the following sections to install and setup the Rice Lake Indicator. 2.3.1 Load Cell Connections The scale comes with 10' of load cell cable; cable must be connected to the indicator. To gain access to the load cell connection on the indicator: 1. -
Page 9: Insert Batteries
Batteries must be removed from the unit prior to long periods of disuse or long term storage. 2.3.3 Optional Power Connections Rice Lake Weighing Systems offers optional AC adapters to use when power is available. USB power can also be used. 160-10-7 Rice Lake Weighing Systems offers replacement AC adapters for the ;... -
Page 10: Dimensions
160-10-7 Low-Profile Digital Physician Scale 2.3.4 Dimensions 2.9" 72.4 mm 6.5" 160 mm Figure 2-7. Indicator Dimensions Visit our website www.RiceLake.com... -
Page 11: Operation
After a system test, displays. Press and hold until displays to turn the scale off. Set Units Press to toggle from kg to lb, display unit desired for weights. ©Rice Lake Weighing Systems ● All Rights Reserved... -
Page 12: Weigh Mode
160-10-7 Low-Profile Digital Physician Scale Weigh Mode Have subject to be weighed step onto the scale. The weight value displays. When the weight is stable, the annunciator LOCK displays and an audible tone indicates the end of the weighing process. -
Page 13: Kg Mode
The BMI value is displayed and the annunciator is on. ENTER 5. Press CLEAR to turn off the BMI function and return to the weigh mode. ©Rice Lake Weighing Systems ● All Rights Reserved... -
Page 14: Communications
The indicator comes with an RS-232 port which enables weight data to be transmitted to other equipment, such as a computer or printer. The RS-232 cable with DB-9 connector (PN 100719) is available from Rice Lake Weighing Systems. Figure 4-3 on page 12 shows where the RS-232 connection is located on the indicator. - Page 15 Reading Reading Unit of Measure (request) (Command) = Metric Weight = 0210.9 Escape Protocol Example 1 Escape Protocol Example 2 Figure 4-1. Escape Protocol Examples Examples of diagnosing battery request and responses. ©Rice Lake Weighing Systems ● All Rights Reserved...
-
Page 16: Maintenance Protocol
Basic information on USB driver installation using Windows is described in the following steps and serves only as an example. A USB driver can be downloaded from the Rice Lake Weighing Systems website at: https://www.ricelake.com/resources/software-firmware 1. Click on Software. - Page 17 4. When the USB cable is connected to the indicator and the scale is turned on, the Found New Hardware Wizard displays. After reading the privacy policy, select prompts to navigate through the software install process. ©Rice Lake Weighing Systems ● All Rights Reserved...
- Page 18 160-10-7 Low-Profile Digital Physician Scale Figure 4-7. Hardware Wizard Menu 5. Select No, not this time and click Next 6. Select Install the software automatically and select . A file transfer screen displays as the file downloads and Next installs to the computer.
- Page 19 A single print ticket has four spaces after PATIENT WEIGHT, one space between the weight value and units (lb), and Note seven <CR><LF> after. PATIENT WEIGHT 199.8 lb <CR> <LF> <CR> <LF> <CR> <LF> <CR> <LF> <CR> <LF> <CR> <LF> <CR> <LF> Figure 4-10. IT Example (IT Information Only) ©Rice Lake Weighing Systems ● All Rights Reserved...
-
Page 20: Optional Bluetooth
® Optional Bluetooth Many of the Rice Lake Medical Scales now have Bluetooth capability. Use the following instructions for the Bluetooth setup on these scales. Bluetooth technology is a wireless technology for connecting health and fitness devices because it’s simple, secure and everywhere. - Page 21 15. Choose any communication terminal in order to send commands through the Bluetooth communication. Once pairing is successfully completed, a bond will be formed between the two devices, enabling those two devices to connect to each other. ©Rice Lake Weighing Systems ● All Rights Reserved...
-
Page 22: Configuration
USER DONE VALUE Figure 5-1. Test Menu Parameter Description Internal ID number Development internal sub version Raw weight data VALUE Processed weight in live display Relative raw battery value Table 5-1. Test Menu Parameters 160-10-7 Low-Profile Digital Physician Scale Operation... -
Page 23: Press . The Indicator Will Continue With The Self Test And Finish In The Weigh Mode.user Menu
To enter this menu: 1. Press to turn on the indicator. displays. START 2. Press and hold until and it’s value flashes. ENTER 3. Press displays. ENTER TEST 4. Press and it’s value flashes. ENTER 5. Press to scroll through the menu items. 6. -
Page 24: Setup Mode
Setup Mode Main Menu DONE PROG CALIB Figure 5-4. Setup Mode Menu Parameter Description Program Setup configuration Calibration Calibration settings Default Reset all settings to factory default Done Returns to weigh mode Table 5-2. 160-10-7 Low-Profile Digital Physician Scale Operation... -
Page 25: Programming Mode
5.4.2 Programming Mode The Programming Mode allows setup of the indicator to determine how the scale reads the weight and displays output. PROG FULL LOAD G-CAL G-LOC ASTRT ROUND DISP value value value value value value value 00000 10.0 0.00 0.000 0.0000 BAUD... -
Page 26: Default Menu
The digit on the right flashes. ENTER • Press to change the value of digit. • Press to move to the next digit. • When the desired value is displayed, press displays. CLEAR ENTER 160-10-7 Low-Profile Digital Physician Scale Operation... - Page 27 Note To quit calibration, press . ABORT displays. Press to abort and return to upper level. 6. Remove all weight from scale platform, then press displays. ENTER ===== 7. When value flashes on display, put the weight on the platform. PUT and 8.
-
Page 28: Maintenance And Troubleshooting
Maintenance and Troubleshooting Maintenance The following section provides instructions for maintaining and cleaning the Rice Lake line of scales. Do not immerse the scale in cleaning or other liquid solutions. IMPORTANT Do not use Isopropyl alcohol or other solutions to clean the indicator display surface. -
Page 29: Specifications
Symptom or Error Possible Cause Corrective Action Unstable weight Check the load cells’ mechanical surroundings and ensure nothing touches them and Err 6 Cannot calibrate that the cables are properly welded Table 6-1. Troubleshooting Table Specifications Power Environmental Adapter Power 120 V/230 VAC adapter, NEMA 1-15 plug Operating Temp 50 to +95°F (10 to 35°C) -
Page 30: Low Profile Digital Physician Scale Limited Warranty
Low Profile Digital Physician Scale Limited Warranty Rice Lake Weighing Systems (RLWS) warrants that all RLWS equipment and systems properly installed by a Distributor or Original Equipment Manufacturer (OEM) will operate per written specifications as confirmed by the Distributor/OEM and accepted by RLWS. - Page 32 Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company. 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319...
